A Guide on Producing Strong 3D Printed Hinge for Your Prototypes

About 3 minutes

Published Date:  February 27, 2022

Last Modified Date:  January 22, 2025

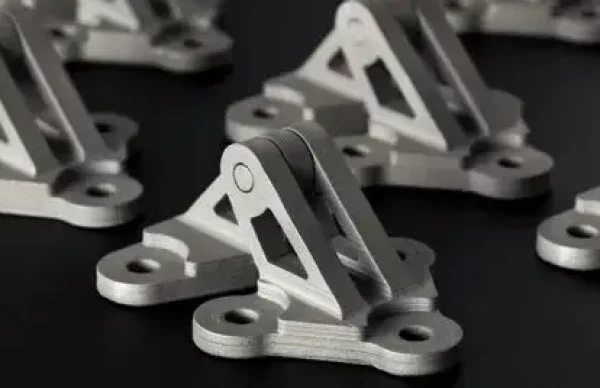

Image Description
Share
Table of Contents

Prototyping through additive manufacturing allows you to see the entire assembly in working condition and make tweaks where necessary. However, a 3D printed hinge brings some complexities to the setup even though living hinges are a fairly simple concept.

There are ways to go around it by using tapes or assembling smaller components. However, they are not as effective as printing the entire part together. The prototypes in those cases are also not precisely like your final product.

3D printing the hinge is an excellent, yet complicated alternative that ensures your prototypes are perfect. While it’s difficult, there are still ways for you to ensure that you obtain the best results.

This article will take a look at the best practices to develop excellent 3D printed hinges that work well and ensure that your prototypes are exactly what you need.

What is a living hinge?

overview of 3d printing hinge

Living hinges are one of the simplest mechanical elements that connect two rigid parts. From the smallest things like your doors to an elaborate industrial setup, you’ll find hinges everywhere.

Printed hinges are exactly what their names suggest. They operate in the same way as well, however, the difference is in their design. Building a hinge that exactly replicates the original part in the prototype is challenging, but you’ll have to use the right materials and techniques.

As a rule of thumb, it’s important to remember that any 3D printed moving component, including living hinges, requires air gaps. You’ll need to add these air gaps or negative spaces in your design for the most realistic prototypes.

However, there will be many instances where you’ll need to modify your design a little bit to make it suitable for injection molding or any other manufacturing process you select.

Types of Living Hinges

Bi-stable Hinge: Similar to the butterfly hinge but with three sections, it stays in either the open or closed position until force is applied to move it.

Flat Hinge: The most common type, it connects two parts with a flexible plastic strip that bends up to 180 degrees, letting the parts open and close on a flat surface.

Double Hinge: Made of two flat hinges with a small gap, allowing parts to rotate 360 degrees or create space when folded.

Butterfly Hinge: Used in dispensing caps, it flips automatically to open or close the cap once it passes a certain angle.

Advantages and disadvantages of living hinges

Living hinges are commonly used because of their simple design and practicality. They have several advantages, but also some limitations, which should be considered for specific projects.

Advantages

  • Low Cost: Their simple design means no additional parts are needed, and they can be made from the same material as the connected parts. This reduces production costs, making them an affordable option.
  • Durable: Living hinges are designed to open and close repeatedly without breaking or becoming brittle. Made from flexible materials, they can withstand continuous movement, making them resistant to wear.
  • Appearance: Living hinges blend in well with the rigid parts. It’s simple, making it a good choice for designs that need to look natural or invisible
  • Reduced Inventory: Living hinges is part of the prototypes itself, there’s no need to stock extra components, simplifying inventory management.

Disadvantages:

  • Low Strength: Living hinges are not designed to support heavy loads. They can break if there is to too much force or uneven pressure.
  • Sensitive to temperature: Living hinges can be affected by extreme temperatures. Heat may cause the plastic hinges to soften and lose its shape, while cold temperatures can make it brittle, increasing the risk of cracking over time.

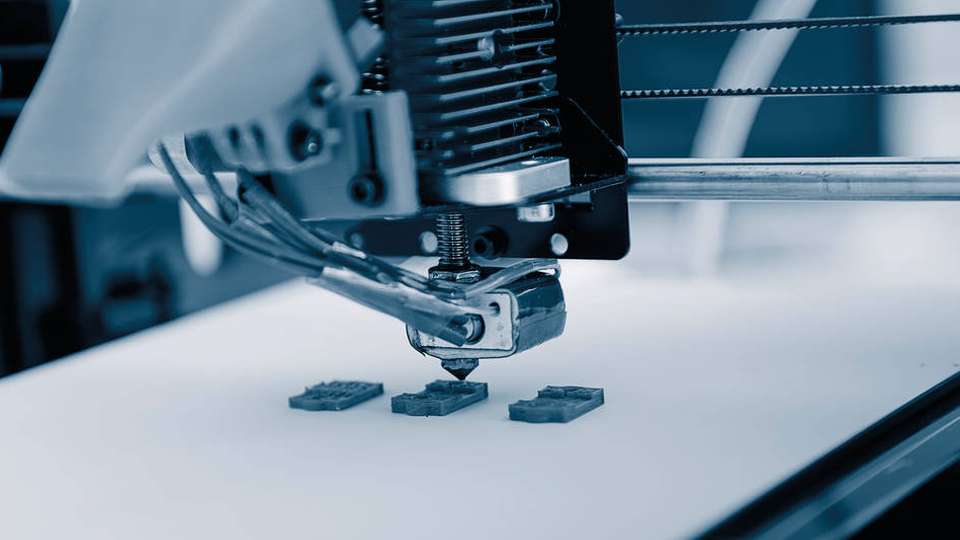

The Advantages of 3D Printing a Hinge for Prototyping

Hinges are a great solution if you are looking for a viable and low-cost solution to join two rigid parts together. They offer a secure and functional connection with the flexibility to open and close things.

3d printed hinge for prototyping

3D printed hinges come with the same set of advantages as any hinge. Depending on the application, you’ll either opt for printing a hinge in parts or printing the entire thing together. Both are viable ways, but the latter is better. Here are a few reasons why.

1 – Reduced costs

Living hinges are quite simple in their operations. Printing the entire thing together instead of separate parts reduces the overall costs. If you are relying on a 3D printing service, then you’ll know how important it is to reduce the costs of 3D printing as much as possible by targeting all the determining factors.

You don’t have to spend any time on assembly or other post processes. However, you’ll need a little more time during the design phase as hinges have different design requirements.

2 – Enhanced durability

Hinges need to open and close repeatedly. 3D printing the overall structures gives you the extra durability you need to ensure that your prototype remains in the perfect condition you need.

3 – Better appearance

Finally, you might need to present your prototype in front of investors or your boss. So, a proper hinge with great surface finishes gives the real picture of the design and simply looks better than any other regular solution at the same time. Isn’t that excellent?

The Disadvantages of 3D Printing a Hinge

3D printed hinges present several disadvantages that can impact their functionality and longevity. Here are the key drawbacks:

Lack of Durability
3D printed living hinges are usually made from plastic, which can break or wear out over time. They are much weaker than metal hinges, such as those made from steel, and have a shorter lifespan.

Risk of Warping
Living hinges require thin, flexible layers to function correctly. However, these thin layers are prone to warping, making it difficult to align them precisely, which can affect the hinge’s performance and stability.

Limited Material Options
The range of materials available for 3D printing living hinges is limited. The common plastic materials used may not be suitable for all applications

7 Ways to design 3D Printed Hinge

Now that you are aware of the basics of a printed hinge, the next question is how to make one. It’s important to reiterate once again that 3D printing a hinge is a little complex despite the simplicity of the component itself.

So, there are several factors to consider when you decide to start the printing process for the living hinge. Some of them are the design itself, its dimensions, the material, orientation, the process, and the post-processes you do. Let’s take a look at each of them in detail.

1 – The 3D printed hinge design

Before learning how to 3D print a hinge, you need to know its design elements of it. The design requirements for printed hinges are very similar to regular ones. You need to select an appropriate bottom radius and a tighter recess for the best operations.

The design dictates the amount of stress on your living hinge. The more stress on it, the sooner it will fail. So, you need to be careful about it.

2 – Hinge thickness

Thickness is another parameter you need to consider during the production phase. Hinges should have a maximum of 2 contours as it helps with the printing process.

Generally, there is a direct relationship between the wall thickness of the 3D hinge and the number of cycles before failure. However, you need to be careful about the difficulty in manufacturing and the tensile stresses, which also increase with the thickness of the material.

3 – Material properties

Hinges require strength, endurance, and flexibility. Whatever material you choose needs to have high impact strength and the appropriate material properties according to repeated operations without any fear.

4 – The right printer for the job

Not every 3d printer is the same. Experts know that different kinds of printers work well with different kinds of materials and designs. As a designer, you need to ensure that you are using the best combination for excellent results.

The right printer will give you the best cost and versatility. Printed hinges or any other 3D printing prototypes have an inherent advantage. You can test out numerous iterations and variations of the design without any additional setup. Therefore, the printer you select should also have the required characteristics you need.

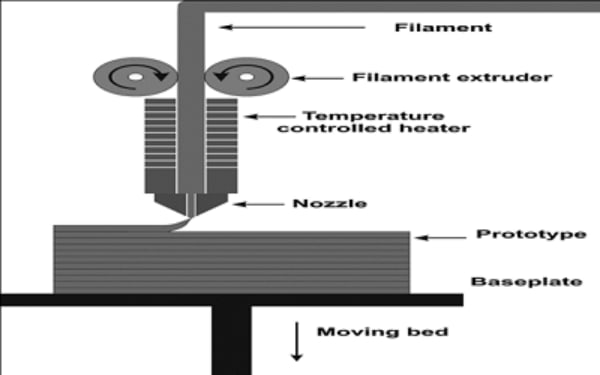

5 – Printing orientation

Depending on the type of printer you are using, you’ll need to be careful about the plane you select. For instance, FDM printers with parts in the horizontal plane deliver more strength. During the printing phase, you’ll need to be careful about the settings and calibrations you select. Otherwise, your hinge will not be as effective.

FDM-schematic

6 – 3D printing process

Along with the processes and material, you also need to be careful about the technology you select. Different design rules apply and the following 3D printing processes work best with living hinges.

  1. Fused Deposition Modeling (FDM)
  2. Selective Laser Sintering (SLS)
  3. Material Jetting

7 – Post-processing

Generally, 3D printed materials don’t need any post-processing. However, you can increase the fatigue properties by annealing after the printing process.

Annealing is a simple process where you heat the material until it gets flexible. Once you reach that temperature, you’ll need to wait for it to cool down. Do it multiple times and your printed hinge will be able to withstand more load and deliver better results.

If you want an affordable route into the world of 3D printed hinges, RapidDirect is your great shout.

Try RapidDirect Now!

How to Calculate the Length of 3D Printed Hinges?

To calculate the length of a living hinge, you can use specific formulas based on the type of hinge and its design parameters. Here are the key formulas and considerations:

Formulas for Living Hinge Length

  1. For Right-Angle Hinges:
    The length 𝐿 of a living hinge should be at least four times the thickness 𝑡t of the material. The formula is:
    • 𝐿=4t
  2. For Other Types of Hinges:
    For hinges that are not right-angled, the length should be at least six times the thickness:
    • 𝐿=6t
  3. General Formula for Bend Radius:
    If considering the bend radius R for a hinge that flexes, particularly for a semicircular bend (180 degrees), the relationship is given by: 𝐿=πR For other degrees of bend, this can be adjusted to: 𝐿=(Bend∘/180​)πR

Additional Considerations

  • Thickness: The hinge should be thin enough to allow flexibility but not too thin to avoid breaking. A thickness of 0.18 to 0.38 mm is recommended for durability.
  • Stress Distribution: The hinge length should be calculated correctly to evenly spread the stress. This helps to extend its lifespan and improve its performance.

By applying these formulas and considerations, you can effectively design and calculate the appropriate length for a living hinge in your 3D printed projects.

Examples of 3D Printed Hinges

Now that you are aware of the benefits of 3D printing a hinge, it’s time to look at some popular variations you can get of a #D printed one. Some of them are actual prototypes while some are simple proofs of concept.

Here are the 5 top variations of printed hinge designs.

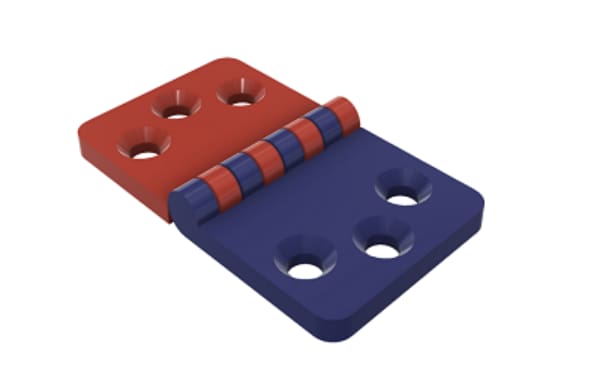

The Parametric Hinge

The parametric hinge is perhaps the simplest, yet the most versatile variation out there.t You can find it in your doors or any other assembly where you need to connect two rigid elements.

3D-printed-parametric-hinge

For 3D printed hinges, this variation requires finesse and the right technical characteristics. Do it right and it can help in prototyping and even use it to reinforce or replace the faulty hinges in your everyday applications.

Bag Clip

This is another common item with an extremely simple design and a plethora of domestic applications. It’s a simple folding piece that goes on top of an open bag to seal it again. The single thread on the bag clip can allow you to store essential food items in a way that retains their freshness over a longer time.

3D-printed-bag-clip

Hinged Box

This proof of concept has numerous applications in the consumer industry because of its packaging potential. However, the applications of hinges are quite limited in this domain.

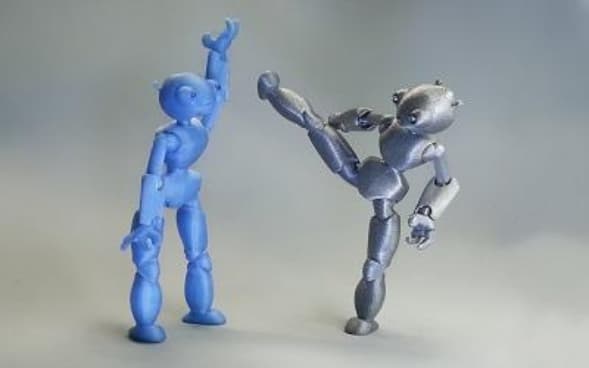

Jointed Robot

This is another hinge application with a lot of versatility. You can combine ball joints and hinges to build multiple items including the design of a robot or figurines.

3D-printed-jointed-robots

Cable Chain

Cable chains comprise numerous joined hinges and have multiple applications in industrial machinery, elevators, etc. Prototyping them with 3D printed hinges can help you perfect the design and ensure its viability.

Consider RapidDirect for Unmatched 3D Printing Services at the Best Price

3D printing is so accessible today that you can start doing it from your room. However, industrial prototyping requires greater accuracy, consistency, and versatility. RapidDirect is an ISO-certified organization that boasts the most experienced team with state-of-the-art equipment. And the best part is that its 3D printing services are at the most competitive price.

So, if you are looking for a reliable and experienced partner for 3D printed hinges or any other additive manufacturing needs. RapidDirect is the right place for you. The team at RapidDirect has the versatile experience of solving numerous industrial problems and is always ready to prove its mettle in a new field. Contact today and get started with the best 3D printing services for your functional prototypes and production parts.

FAQs About 3D Printing Living Hinges

Can I 3D print parts that move?

Yes, absolutely. It’s more than possible to 3D print moving parts. You can either print your parts separately and assemble them later or print the whole thing at once. The approach depends on multiple factors like your design complexity, material properties, printer capabilities, and much more.

Why are 3D printed hinges important?

Generally, a hinge or any other design helps you prototype effectively. You can create a proof of concept and multiple other variations of the product before investing more money in an injection molding or any other high-volume manufacturing setup.

Are there any special printers for 3D printing living hinges?

No, there are no specific printers that are designed specifically for hinges. Any D printer can theoretically deliver you an excellent printed hinge as long as you fulfill the design requirements and other basic steps. However, having the right combination of material, printer, and design approach are important. You can do it yourself or even take help from a 3D printing service for important projects with little to no room for errors.

Are there any recommended materials for 3D printed hinges?

While hinges designed from 3D printing can be of any material. You’ll often find a PLA living hinge or PETG living hinge more easily. Apart from that, Nylon, different resin combinations, and rubber-like materials are excellent choices

Is PETG Good for Living Hinges?

Yes, PETG is great for living hinges. It’s strong, flexible, and can handle repeated bending without breaking. It’s durable, resists wear, and works well with 3D printing, making it easy to create precise, functional designs.

How Strong Are 3D Printed Hinges?

The strength of 3D printed hinges depends on the material, design, and printing method. For example, carbon fiber nylon hinges are strong and handle heavy loads. However, hinges printed vertically tend to be weaker than those printed horizontally.
Living hinges made with FDM may wear out after a limited number of cycles. Overall, 3D printed hinges can be strong, but performance relies on choosing the right design and materials.

What is the best material for living hinges?

The best material for living hinges is polypropylene (PP), known for its flexibility and durability. It bends repeatedly without breaking, making it great for parts that move often.
Polyethylene (PE) is another option, but it’s not as durable under heavy use. For 3D printing, ABS, PLA, and PETG are common choices.
ABS is strong and flexible, ideal for functional prototypes.
PLA is easy to print but less durable. PETG strikes a good balance between durability and ease of printing. The best material depends on your specific needs.
