Traditional prototype creation processes can be very slow and expensive. However, there are new techniques available to improve product development processes. These techniques ensure the fabrication of high-quality prototypes at lower costs. 3D prototyping technology is the perfect solution for your rapid prototyping needs.
3D prototyping gives you access to extensive design possibilities and efficient techniques to save time and money. In addition, it is effective manufacturing suitable for applications in several industries. It also allows you to conceptualize your ideas quickly at a relatively low cost.
What does the 3D printing prototype entail? How can 3D prototype benefit your product? What are the considerations before starting your project? This article answers all your questions and gives you the information you need to get the best out of your 3D prototyping.

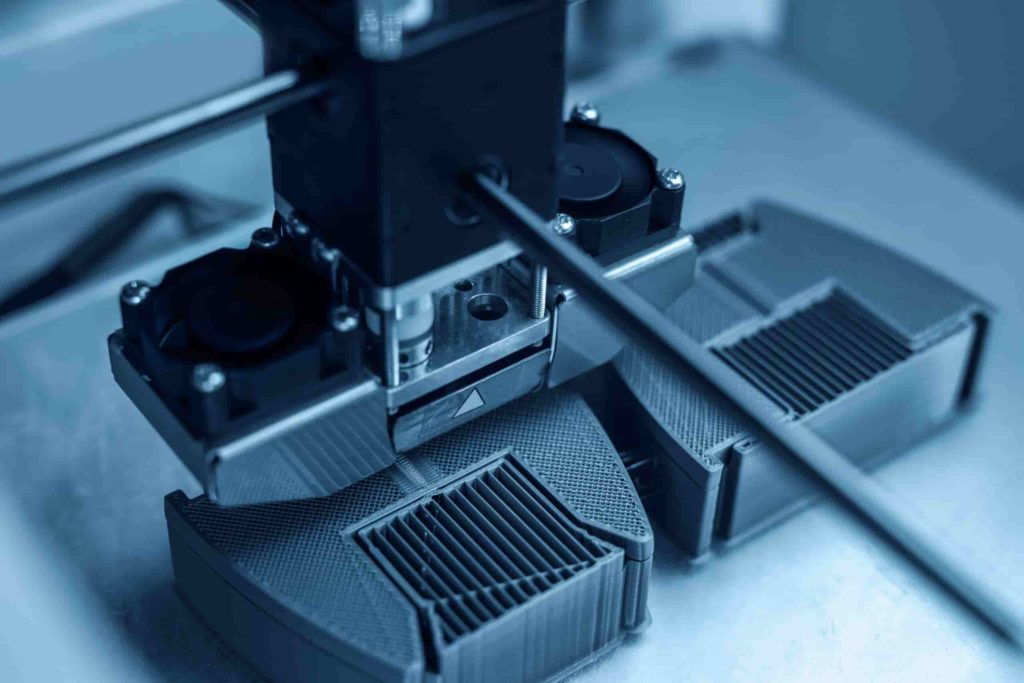

What is 3D Prototyping?
3D prototyping is an innovative rapid manufacturing process that involves creating three-dimensional objects from digital files. In this method, a fabricator constructs objects by laying down successive layers of material, where each layer represents a thin-sliced cross-section of the final product.
Unlike traditional subtractive manufacturing, 3D printing in rapid prototyping does not cut away pieces from a solid block of material. This approach enables the production of complex shapes while using less material overall.
There are three major types of 3D printing, depending on the accuracy levels required. They include the following:
- Fused Deposition Modeling (FDM): This 3D printing technique is the most popular and cost-effective option available. It is user-friendly and involves thermoplastic filaments being extruded layer by layer, making it an ideal choice for various product development applications.
- Selective Laser Sintering (SLS): This versatile 3D printing method is utilized for both plastic and metal prototyping. It employs powder beds to build prototypes layer by layer, using a laser to heat and sinter the powdered material, resulting in durable parts.
- Stereolithography (SLA): This rapid prototyping technique uses a tank filled with photosensitive liquid resin. Ultraviolet (UV) light solidifies each layer of the product until the model is complete. SLA is particularly recommended for producing high-resolution 3D prototypes.
3D printers are invaluable for creating a diverse array of products, ranging from mechanical components and architectural models to intricate jewelry designs and other consumer goods. The ability to quickly produce prototypes through 3D printing makes this technology an essential tool in modern manufacturing and product design.l parts and architectural models to jewelry designs and other consumer products.
Industries Benefiting from 3D Rapid Prototyping in Product Development
Rapid prototyping using 3D printing enables industries to quickly test designs, gather feedback, and make adjustments, reducing time-to-market and costs. Key sectors benefit from its efficiency in refining products before full-scale production.
- Aerospace Industry
In aerospace, rapid prototyping is driven by the need for lightweight, high-performance components. 3D printing enables manufacturers to create complex designs that improve efficiency and reduce fuel consumption. It cuts development time, lowers material costs, and allows quick adaptation to regulatory changes and market shifts. - Healthcare Sector
Healthcare depends on rapid prototyping to create tailored medical devices, implants, and prosthetics. 3D printing provides precise models that assist in surgery preparation, improving patient results. It also speeds up development, personalizes treatments, and lowers costs for smaller production runs. - Automotive Industry
In the fast-evolving automotive world, rapid prototyping is key to driving innovation. 3D printing allows for quick design tweaks, helping manufacturers test and perfect components efficiently. This leads to faster production, cost savings in prototyping, and the ability to produce custom parts, improving vehicle quality and customer satisfaction. - Robotics Industry
Robotics development thrives on rapid prototyping to meet the demand for complex, lightweight components. 3D printing shortens the design process, giving engineers more room for experimentation and quicker refinements. - Jewelry Industry
In the jewelry sector, rapid prototyping allows designers to create intricate, customized pieces that traditional methods may struggle to achieve. 3D printing empowers jewelers to experiment with complex designs and produce unique items at lower costs.
How to 3D Print Prototypes
The rapid prototyping process occurs in four essential stages:
CAD Design
The starting point of your 3D prototyping project is the development of a CAD design file. Collaborating with product design firms can help you create detailed 3D models that meet specific requirements. There are various file formats available for 3D printing, and it’s crucial to verify the formats supported by your printer. Some common formats include:
- STL (Stereolithography): Widely used and compatible with most printers.
- OBJ (Object File): Supports color and texture information.
- AMF (Additive Manufacturing File): Advanced format that accommodates multiple materials.
- 3MF (3D Manufacturing Format): Supports rich metadata and is designed for modern 3D printing workflows.
Once you have a printable file, you can prepare it for your 3D printer, leading to the next stage.printable file, you can then go ahead to prepare the file for your 3D printer. Hence, the next stage.
Digital Pre-Processing
Preparing your file for the printer is called slicing, which divides the 3D model into hundreds of layers using slicing software. Popular slicing software options include:
- Cura: User-friendly with a large community and extensive plugins.
- PrusaSlicer: Tailored for Prusa printers but adaptable to others, offering advanced features.
- Simplify3D: Professional software with comprehensive control over the printing process.
After slicing, upload your file via USB, Wi-Fi, or SD card. The digital pre-processing stage also involves selecting materials and defining parameters such as:
- Print Settings: Layer height, infill density, print speed, and support structures should be tailored to your prototype’s requirements.
- Material Choice: Options like PLA, ABS, PETG, and flexible filaments. Each material has unique properties affecting strength, flexibility, and temperature resistance.
3D Printing Your Prototype
Once the sliced file is uploaded to the 3D printer, the printing process begins. 3D printers use the provided instructions to dictate material deposition, building the part layer by layer. The type of printer used will influence the process, whether it’s Fused Deposition Modeling (FDM), Stereolithography (SLA), or Selective Laser Sintering (SLS).
After printing, post-processing may be required, such as:
- Powder Coating: For enhanced durability.
- Sanding: To achieve a smoother surface finish.
- Painting: For aesthetics or additional protection.
Inspection
Once your 3D prototype is complete, the next step is inspection and market testing. This is especially important for functional prototypes. In-house engineers can evaluate the component for defects or necessary adjustments. User testing is also critical; gather feedback from potential consumers to ensure the prototype meets their needs. If modifications are required, the iterative nature of 3D printing allows for quick adjustments and reprints.
Additional Tips for Success
- Stay Updated: Keep abreast of advancements in 3D printing technology and materials to enhance your processes.
- Documentation: Keep a detailed log of settings and materials used for future reference.
- Iterate and Improve: Use feedback from inspections and testing to continuously refine your design.
Top 4 Considerations Before 3D Prototyping
3D printing gives the best results in prototyping, but you need to consider some factors before diving into a 3D prototyping project. This will help you get the best out of your project. They include:

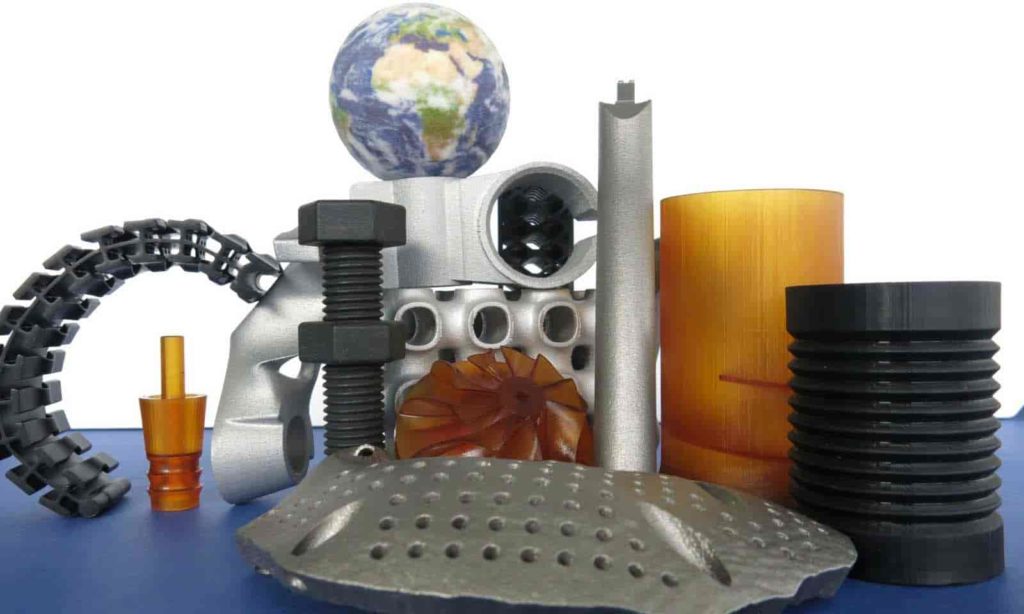

3D Printing Materials
As discussed above, you have an extensive range of materials to choose from for your 3D printing projects. The diverse materials offer the opportunity to manipulate the design properties, confer flexibility, transparency, etc., depending on your needs.
However, you need to check the following aspects before choosing your material:
● Price
This is one of the most important considerations for many businesses. You aim at materials that help reduce cost while giving the necessary properties. For instance, you want to start early prototyping stages with plastic before shifting to metal 3D printing. This choice is more cost-effective than using metal throughout. There are several plastic materials to get you an economical solution.
● The Accuracy and Quality of the Material
A 3D printing prototype gives you a perfect overview of what the final product will look like. Therefore, your sim is to create a functional prototype. Consequently, your material choice must align with the complexity of your project. You also need to know the material’s mechanical properties to ensure its suitability for your project.
● Design Guidelines of Material
There are different design guidelines for different materials. While choosing a material, ensure you check that the dimension and geometry align with the material properties. If you have a wall that is too thin for a non-suitable material, the file may not be printable. As a result, the process will be counterproductive.
Product’s Application
Your product’s application should also be a priority when making your decisions. Suppose you’re designing a prototype that must replicate the aesthetics of the final product. In that case, you should choose a 3D printing technology that offers finer resolution. Otherwise, you may have to budget for post-processing. On the other hand, you should choose a technology that provides excellent tolerances if you need functional prototypes.
3D Printing Technology
The various 3D printing technologies have their unique build styles, material properties, and design limitations. The method you choose will determine the adjustments you make to your design, such as offsets and variances. Polyjet allows you to combine hard and flexible materials. It also projects transparency and full colors.
On the other hand, stereolithography (SLA) builds parts with smooth surface finishes. These processes are the most ideal if aesthetics is a major concern. In contrast, Selective Laser Sintering (SLS) and Fused Deposition Modeling (FDM) are more suitable for functional prototypes. These technologies build durable parts with different materials. Thus, your choice will depend on your project’s requirements.
File Formats
It is advisable to send your CAD files in the correct format to ensure an excellent build. The .STL file format is the most popular for builds and setups. Although you can convert native CAD files to the .STL format, some issues may arise if you don’t use the native software. The best files have only one shell with no unshared edges. Your file must also indicate the unit of measurement. This will help reduce potential errors.

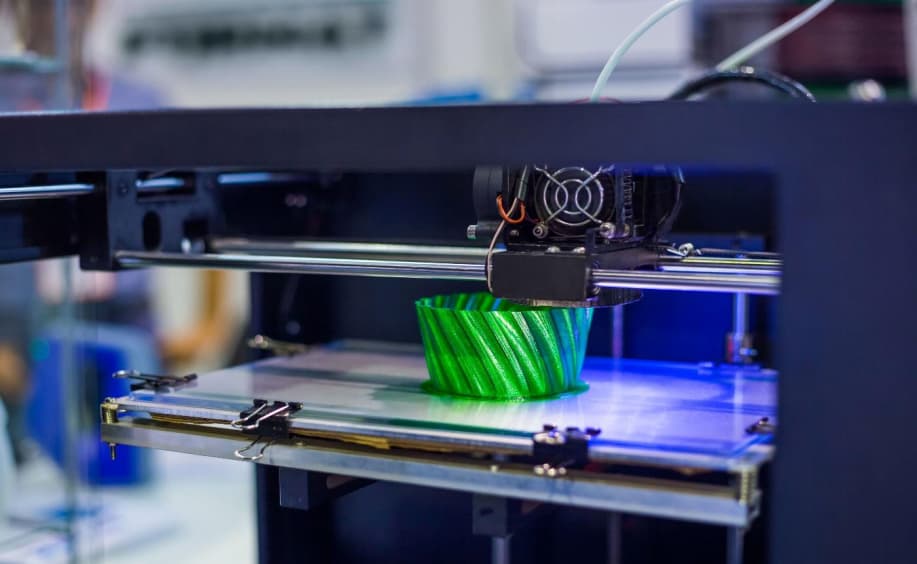

Advantages of Rapid 3D Prototyping
Several industries worldwide are embracing the 3d prototype printing technique due to its several vital advantages over the traditional manufacturing techniques. These advantages include:
Design Flexibility
3D printing enables you to create various iterations of your designs effectively. It gives you more design freedom and flexibility than several other manufacturing techniques. A 3D prototype is created using 3D modeling software. Therefore, the process allows you to easily create your designs, regardless of how simple or intricate they are. It also gives you room to make any prototype from scratch while adjusting your 3D model at any point in the production stage. This helps save headaches while using 3D printing for mass production.
Furthermore, any given 3D printer can print almost any product, provided it fits within its build volume. Moreover, the convenience of rapid prototyping 3D printing makes it a great choice for every project. Since you need to make several changes to get the desired final product, you won’t have to create a new mold for every iteration of your project. There is little or no change in the equipment or machinery throughout the process.
Unlike traditional techniques, 3D printing allows you to include multiple materials into one object. Thus, you have an array of matched mechanical properties, colors, and textures. You’ll also be able to create and manufacture geometries that are impossible for traditional manufacturing methods. Such geometries include parts within parts and hollow cavities in solid parts. You can edit your designs however you like to create unique, quality parts.
Money Saving
3D prototyping is relatively cheaper than other manufacturing methods like injection molding. As we mentioned earlier, you won’t have to create new molds each time you change your design. This is a significant advantage, particularly for small production runs. The 3D printing process requires only one or two machines with few operators to create a component.
There is usually no need for additional tooling in this process. Thus, 3D printing service cost is usually minimal. In addition, material waste in 3D printing is very low because it is an additive manufacturing process. It involves building a component from the ground up, and there is no carving out of solid blocks as with CNC machining.
Time Saving
One of the most significant advantages of 3D printing technology is that it ensures rapid prototyping. As a result, you can design, develop, and test your custom part in the shortest time possible. Even if you have to modify the design at any point, you can do it without necessarily affecting the manufacturing speed. Unlike the traditional processes, 3D printing techniques allow you to design your part, manufacture it in-house, and test it within a few days or less.
Additive manufacturing also skips the process of creating mold and waiting for tool preparation. This is often a significant difference for small businesses requiring small production runs. You can accelerate product development and get products to market in short lead times. You are also free from the issue of minimum orders.
Functional Prototype Testing
The wide range of 3D printing materials available today makes it possible to create advanced functional prototypes. These prototypes are the ones you deploy for cost-effective market testing to ensure that they meet your requirements and the needs of your consumers.
You can easily test a 3D printing prototype and modify the CAD file if you discover any flaws. You get feedback from your potential investors and customers on the physical product without risking large upfront prototyping expenditures. This gives you an overall competitive advantage in your industry.
Limitations of Using 3D Printing in Rapid Prototyping
While 3D prototyping has transformed the product development landscape by providing unmatched flexibility and speed, it also presents several challenges and limitations that businesses must consider. Understanding these obstacles is crucial for making informed decisions when integrating it into their development processes.
Limited Material Options
One of the primary challenges is the relatively restricted range of materials compared to traditional manufacturing methods. Although advancements have expanded the types of filaments and resins available, not all materials are suitable for every application. For example:
- Mechanical Properties: Many materials used in 3D prototypes, such as PLA or ABS, may lack the strength or durability required for high-stress applications, leading to potential failure in functional prototypes.
- Thermal Resistance: Certain projects necessitate materials capable of withstanding high temperatures, a requirement not met by many standard 3D prototyping materials. Industries such as automotive and aerospace often face this limitation, which may require the use of specialized, costlier materials like polycarbonate or nylon that can complicate the prototyping process.
Size Limitations of 3D Printers
The build volume of most consumer-grade 3D printers poses a significant restriction for prototyping. While larger industrial printers are available, they come with a much higher price tag. This size limitation can affect:
- Complex Designs: Prototypes that exceed a printer’s build volume may need to be redesigned to fit within the constraints or may require assembly from multiple parts, potentially compromising structural integrity and increasing production time.
- Large-Scale Production: Scaling up production using 3D prototyping remains a challenge. Even with larger printers, producing items at a scale that can compete with traditional manufacturing methods can be inefficient, making it less viable for high-volume runs.
Best 3D Materials for Printing Prototypes
While 3D printing is one of the best prototyping methods out there, you need to choose the best materials to get the most out of your project. There are several materials for 3D printing prototypes, and your choice depends on your project’s needs. Here are some of the most used materials for 3d prototype printing.
Nylon PA12
This is a white plastic material, and it is among the most affordable materials for prototyping. Despite its relatively cheap cost, Nylon PA12 has excellent mechanical properties. It comes from fine polyamide powder, making it perfect for prototyping and production runs. This 3D printing material works best with Selective Laser Sintering (SLS) technology.
Multi Jet Fusion PA12
This material is a grey plastic, perfect for prototyping and production. The raw version of the Multi Jet Fusion PA12 is the cheapest option on the market. You can easily make changes at low costs. Moreover, using this material gives you abrasion- and scratch-resistant products. This makes them useful for prototype testing. The Multi Jet Fusion PA12 is also stable to weather, UV stabilized, and light stabilized. Therefore, it is a perfect option for testing in outdoor conditions.
Prototyping Resin
This resin is more suitable for non-functional prototypes, and you don’t want to use it for large production runs. Whenever you wish to manufacture highly detailed components, prototyping resin is a perfect choice. It offers smooth surface finishes, similar to products manufactured with plastic injection molding. This material works best with stereolithography (SLA).
PLA
Fused Deposition Modeling (FDM) is an interesting technique, particularly useful for Polylactic acid (PLA) filaments. PLA is a user-friendly material with high stiffness and strength. It has a low printing temperature and minimal warping, making it one of the easiest 3D printing materials. It is also an inexpensive material, creating reliable parts for many different applications. If aesthetics and fine details are a major concern, PLA should be your go-to material.
TPU
If your 3D printing prototyping project requires a flexible plastic, TPU is the perfect solution. This material has the properties of rubber, including high elasticity and high strength. Therefore, it would fit your prototyping project if you need something flexible. Components from this material are resistant to fatigue and stress, and it is also a great choice for final products.
RapidDirect’s 3D Printing Services
Completing your 3D printing project is always easier when you work with the best prototyping partner. RapidDirect offers you a high-quality and cost-effective 3D printing service that will meet the unique requirements of your project. Our in-house printing factory and technical capabilities cover major 3D printing methods, including FDM, SLS, SLA, and Polyjet. Furthermore, we offer you an extensive array of materials and post-processing options.
When you upload your CAD files and specify your requirements, our quoting platform generates rapid quotations within two hours. Our abundant manufacturing resources also allow us to offer cost-effective pricing for your project. More importantly, RapidDirect provides fast lead times as fast as three days to allow you to get your product to market in a short time. Upload your design file today!
Conclusion
Rapid 3D prototyping is an effective manufacturing process for faster and better engineering. It speeds up your workflows and removes bottlenecks of the traditional prototyping cycle. Using 3D printing prototyping saves cost and reduces time to market while offering easier design testing and overall prototyping advantages. Before diving into any 3D printing project, you need to consider the manufacturing partner you will work with.
RapidDirect is your best option for creating high-quality 3D printing prototypes. We provide the best 3D printing technologies, materials, and expertise to help you get the best out of your project. Our manufacturing capabilities will also get your prototype ready in short lead times at affordable prices. Upload your CAD file today, and let’s get started!
FAQs
Can I make a prototype with a 3D printer?
Yes, you can make a prototype with a 3D printer. 3D printing is an ideal method for creating prototypes due to its ability to quickly produce complex shapes and designs directly from digital models. This allows for efficient testing and iteration of design concepts before moving to final production.
Visualization: Provides a tangible representation of the design, aiding in presentations and stakeholder communication.
What are the benefits of 3D prototyping?
- Speed: Rapid production of prototypes allows for faster design cycles.
- Cost-effectiveness: Reduces the costs associated with traditional prototyping methods, such as machining or molding.
- Complexity: Enables the creation of complex geometries that may be difficult or impossible to achieve with traditional manufacturing methods.
- Customization: Easily allows for design alterations and customization without significant additional costs.
What is rapid prototyping in 3D?
Rapid prototyping in 3D refers to the fast fabrication of physical parts using additive manufacturing technologies, such as 3D printing. It involves creating a physical model from a digital CAD (computer-aided design) file, allowing designers to quickly validate and iterate on their designs. The process typically emphasizes speed and efficiency to reduce time-to-market for new products.
How to create a rapid prototype?
To create a rapid prototype, follow these steps:
- Post-processing: Clean, finish, and assemble the prototype as needed for testing and presentation.
- Design the model: Use CAD software to create a detailed digital model of your prototype.
- Prepare the file: Export the design file in a format compatible with the 3D printer, such as STL or OBJ.
- Choose a 3D printer: Select a suitable 3D printing technology (e.g., FDM, SLA, SLS) based on material requirements and desired finish.
- Print the prototype: Load the file into the printer’s software, adjust print settings (layer height, speed, etc.), and start the printing process.
What does CAD stand for in 3D printing?
CAD stands for Computer-Aided Design. It refers to the use of software to create precision drawings or technical illustrations, which are often used in 3D printing to design prototypes and parts.
Is rapid prototyping the same as 3D printing?
While rapid prototyping often involves 3D printing, they are not synonymous. Rapid prototyping is a broader term that refers to the techniques used to quickly fabricate a scale model of a physical part or assembly. 3D printing is one of the methods used to achieve rapid prototyping, alongside other techniques like CNC machining or injection molding. In essence, all 3D printing can be considered a form of rapid prototyping, but not all rapid prototyping uses 3D printing.
