Aluminum alloys remain top-of-the-line materials used in several different industries today. These metals have high relative strength, excellent strength-to-weight ratio, and improved machinability. Among the most popular aluminum alloys for manufacturing are 6061 aluminum and 7075 aluminum. While similar in some areas, there are some notable differences between 6061 vs. 7075 aluminum.
During material selection, it is crucial to understand the various features of the materials in question. It is also essential to know the differences between the various CNC machinable aluminum alloys available. Therefore, this article aims to establish the features of 7075 aluminum vs. 6061 aluminum. This will show you where each of these alloys excels and where you should not use them.
What is 6061 Aluminum Alloy?
This alloy is a renowned member of the 6000 series. It is often referred to as a jack of all trades due to its versatility and excellent mechanical properties. Its relatively low cost throws its usefulness up a significant notch.
6061 aluminum displays good machinability, excellent corrosion resistance, and good tensile strength. Manufacturers employ this for many extrusion projects because of its easy workability. It is a suitable option for applications in electrical products, automotive and aerospace products, piping, consumer products, and more.
What is 7075 Aluminum Alloy?
A member of the 7000 series with zinc being its main component, 7075 aluminum is famous for its increased strength. Its increased mechanical strength accounts for its popularity in the defense and aerospace industries.
This alloy also withstands fatigue stress well, making it a reliable option in various industries. When you compare 7075 aluminum vs. 6061 aluminum, 7075 alloy has a comparatively higher cost. Its machinability is also at a reasonable level, but it is a little less weldable. The most common uses are in aircraft frames, plastic mold tooling, high-end bicycle components, etc.
The difference Between 6061 and 7075 Aluminum Alloy
Having checked a brief review of the aluminum alloys, what is the difference between 6061 and 7075 aluminum?
In this section, we will compare based on several different parameters.
Alloy Series and Chemical Composition
You can deduce the first difference between 6061 and 7075 aluminum from their names. 6061 aluminum is a member of the 6000 class or alloy series. This class has silicon and magnesium as its primary alloy component. On the other hand, 7075 aluminum alloy is a member of the 7000 series. As a result, it uses zinc and copper as the primary alloying elements. The table below contains a full breakdown of 7075 aluminum vs. 6061 chemical compositions.
| Chemical Elements | 7075 Aluminum | 6061 Aluminum |
| % Aluminum (Al) | 90.0% Al | 97.9% Al |
| % Magnesium (Mg) | 2.5% Mg | 1.0% Mg |
| % Zinc (Zn) | 5.6% Zn | — |
| % Silicon (Si) | — | 0.6% Si |
| % Chromium (Cr) | 0.23% Cr | 0.2% Cr |
| % Copper (Cu) | 1.6% Cu | 0.28% Cu |
Mechanical Properties
Yield strength
7075 aluminum alloy has a higher yield strength than 6061 aluminum. Consequently, 7075 aluminum is able to withstand more pressure and more impact without deformation. The yield strength of 7075 aluminum is due to its chemical composition and heat treatment. However, the yield strength of 276MPa means that 6061 aluminum is not completely weak.
Thermal conductivity
Aluminum alloys are generally good conductors of heat. However, the thermal conductivity of 7075 aluminum vs. 6061 aluminum varies. This is also a result of their chemical compositions and heat treatment. 6061 aluminum’s thermal conductivity is slightly higher than that of 7075 aluminum. Therefore, it is an excellent choice in heat exchangers whose primary requirement is heat dissipation.
Electrical resistivity
Both 7075 and 6061 aluminum have low electrical resistivity, meaning that they are good electrical conductors. Thus, these alloys are suitable for electrical use. However, a difference between 6061 and 7075 aluminum is that 6061 has the lowest electrical resistivity. Therefore, it is a better conductor of electricity than 7075 aluminum.
Elasticity
Elasticity helps you to make sense of the resilience of materials and their resistance to deformation. It also correlates to material stiffness. Both 7075 and 6061 aluminum have similar responses to elastic deformation.
Temperature resistance
We analyze the temperature resistance of 7075 t6 vs. 6061 t6 by comparing their melting points. 7075 aluminum has a slightly lower melting point of 477 – 635°C than 6061 aluminum with a melting point of 582 – 652°C. Thus, 6061 alloy can withstand higher temperatures better than 7075 alloy. However, you should note that 7075 aluminum has an excellent reaction to heat treatment. It also allows for a much better distribution of elements in the metal.
Material hardness
The hardness of materials establishes their ability to resist deformation by indentation, penetration, or other means. Both alloys are hard enough to resist pressure and not crack or deform. However, 7075 aluminum is harder than 6061 aluminum.
Machinability
Machinability describes the difficulty of processes like milling, cutting and die-casting. 6061 and 7075 aluminum alloys differ considerably when it comes to their respective machinability compared to each other. 6061 typically is easier and quicker to machine than 7075 due to lower hardness/tensile strength values as well as less tool wear being experienced during use, thus becoming the go-to material for most parts machining parts.
However, 7075 Aluminum Alloy contains higher concentrations of magnesium and copper which both enhance its strength, as well as make machining it more challenging. Using advanced tools and techniques can still result in successful 7075 Aluminum Alloy machining operations.
Anodising
Anodising is an electrochemical process used to transform metal surfaces into decorative, durable and corrosion-resistant anodized surfaces that offer both decoration and corrosion protection. Both 6061 and 7075 can be anodized to form a transparent oxide layer for protection. However, if 7075 contains too much zinc, it could turn brown during anodisation.
Welding Performance
6061 aluminum is considered highly weldable due to its lower hardness and magnesium and silicon as key alloying elements, and can be welded using various techniques while withstanding high temperatures during welding applications.
7075 is generally unweldable due to its high zinc content which increases welding defects such as hot cracking. Welding of 7075 often produces weak joints or surface defects during welding operations. Annealing may improve weldability. After being softened up during annealing it becomes more suitable for welding. Postweld heat treatment must then take place to restore strength before riveting is used for connection of parts made out of 7075.
Cost Consideration
7075 aluminum alloy can be more costly to produce due to its composition containing zinc and other alloying elements that enhance strength but increase material and processing costs. Furthermore, its more specialized treatment requirements (for instance advanced welding techniques or postweld treatment), further drive up its costs. On the contrary, 6061 is commonly preferred due to being easier and costing less to machine.
Corrosion resistance
6061 aluminum alloy is more resistant to corrosion than 7075. The reason for this is not far-fetched. There is a much higher amount of copper in the 7075 alloy than in 6061. Since copper reacts more with the environment, corrosion is bound to occur.
Fabrication Considerations
When dealing with fabrication, 6061 aluminum alloy has the edge over 7075 aluminum alloy. This is often due to the lower hardness and tensile strength of the 6061 alloy. Its lesser hardness allows for easy machining, while the lower tensile strength ensures better formability. You can join both materials by soldering, brazing, or use of adhesives. However, 6061 aluminum is weldable, while the 7075 variant is considered not weldable.
Applications
There is a kind of application ‘overlap’ between 6061 and 7075 alloys. Both alloys are useful for making automotive parts, aerospace components, and consumer products. However, they differ in the specific areas of use.

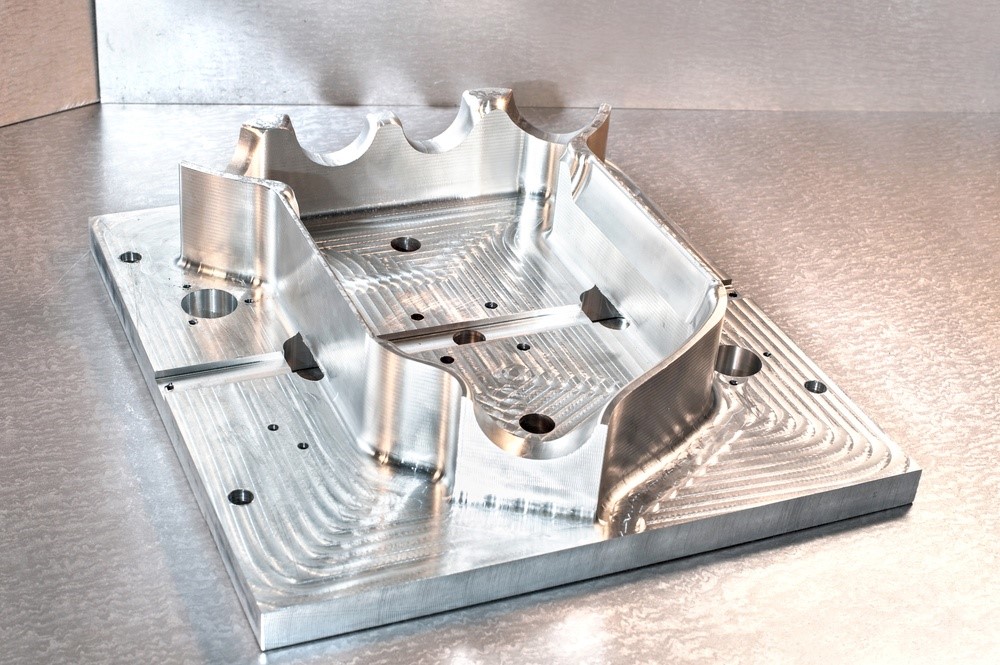

Some typical uses of 6061 aluminum alloy include:
- Building products
- Automotive parts
- Electrical products
- Bicycle frames
- Piping

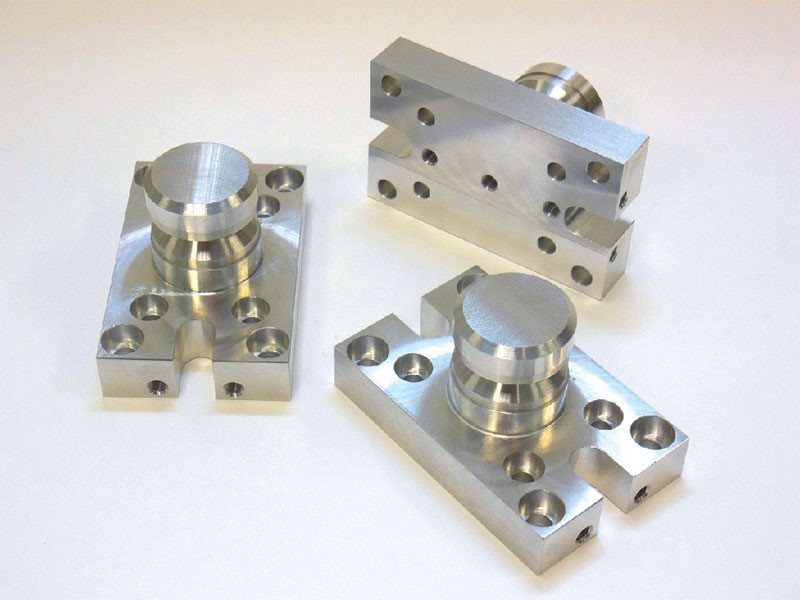

Some typical uses of 7075 aluminum include, but are not limited to the following:
- Missile parts
- Aircraft components
- Gears and shafts
- Fuse parts
- Regulating valves
6061 vs. 7075 Aluminum: Which One to Choose?
Choosing between titanium vs. aluminum may be quite straightforward. However, making a choice among alloys of the same metal may be a little tricky.
As with several other things, your choice will depend on certain factors, the major one being the intended application. Other factors include manufacturing conditions and costs.
Being a versatile alloy, 6061 is suitable for several structural components. It is useful when:
- A lot of machining is required
- There is a need for a lot of welding on the part
- Corrosion is a concern
- Cost is a primary factor
On the other hand, 7075 aluminum is more useful when:
- High strength to weight ratio is crucial
- There will be high exposure of the plant to heat
- Lots of friction is involves
- Cost is less of a concern

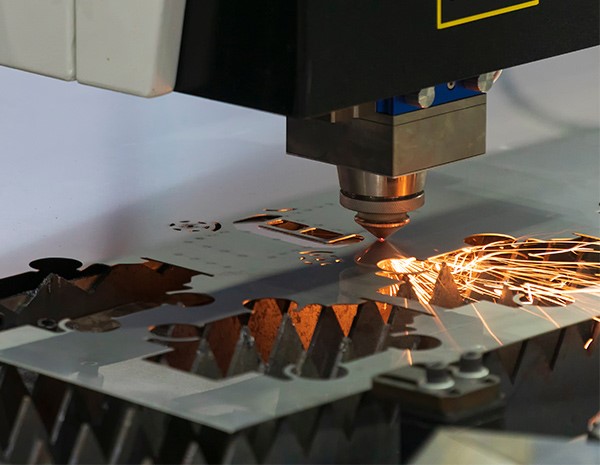

RapidDirect’s Fabrication Capabilities
RapidDirect is your ideal manufacturing partner, providing adequate solutions to all manufacturing issues. At RapidDirect, we understand the importance of choosing suitable materials in product development. Therefore, we use our expertise to make the right material choice for your project.
We boast of over 100 different materials for parts production, allowing you to choose the ones that best meet your needs. Our manufacturing standards combined with engineering capabilities help us to offer the best rapid prototyping services. All these, and many more, are available at competitive prices.
6061 vs. 7075 Aluminum FAQs
6061 aluminum has lower tensile strength and lesser hardness than 7075 aluminum. Therefore, it is more formable and weldable. As a consequence, 6061 aluminum alloy responds better to machining than the 7075 alloy.
7075 aluminum alloy has a higher yield strength than 6061 aluminum. This is due to its chemical composition. Therefore, it withstands more impact and more without deformation than 6061.
There are some fundamental factors you need to consider while choosing between 6061 and 7075 aluminum alloys. Your budget is a significant factor. Therefore, you must consider the costs of the alloys. Also, the intended application of the final product plays a crucial role in your choice of alloy. Furthermore, you need to consider the fabrication process as they do not have equal machinability standards.
7075 aluminum alloy is known to be durable and strong, making it suitable for high performance applications in aerospace and military fields. Additionally, its corrosion-resistance and temperature tolerance makes this aluminum more ideal than others in its field of application; but due to its alloyed elements containing zinc, magnesium copper, and chromium that contribute strength and hardness require special machining methods to be successfully utilized for cutting out shapes from it.
Welding generates heat that changes a metal’s internal structure and leaves it easier to cracking, while 7075’s high zinc content contributes to porosity during welding that compromises both strength and appearance. Even if welding were possible for 7075, postweld heat treatment to restore strength often makes the process too time consuming or expensive. These complications have made welding this alloy impractical. Thus, 7075 is usually avoided while alternatives like 6061 aluminum are usually preferred instead.
6061 aluminum alloy is an economical yet flexible alloy with excellent strength-to-cost ratio that offers balance in strength, corrosion resistance and ease of manufacturing. 6061 is an easy choice to weld and machine, making it well-suited to applications spanning construction to automotive to marine. Furthermore, anodization for 6061 aluminum alloy further extends durability in outdoor environments.
Conclusion
We cannot overstate the importance of material choice in product development. Aluminum alloys are among the most widely used metal for fabrication processes. This article compared 7075 aluminum vs. 6061 aluminum based on various parameters, including their unique features and specific applications.
Therefore, you must consider each material to ensure that you are selecting the ideal one for your project. Do you find it challenging to decide between 7075 t6 vs. 6061 t6? Then, let us help you. Get in touch with RapidDirect today!
