One of the leading causes of damage and failure of precision machined parts today is corrosion and surface damage. Part manufacturers, not to be defeated, have turned to several different measures to combat this, and one of the absolute best is the alodine finish.
In this guide, we will walk you through alodine coating, its principle, applications, design considerations, and many more important aspects of the alodine finish in parts manufacturing and precision machining.
What is Alodine?

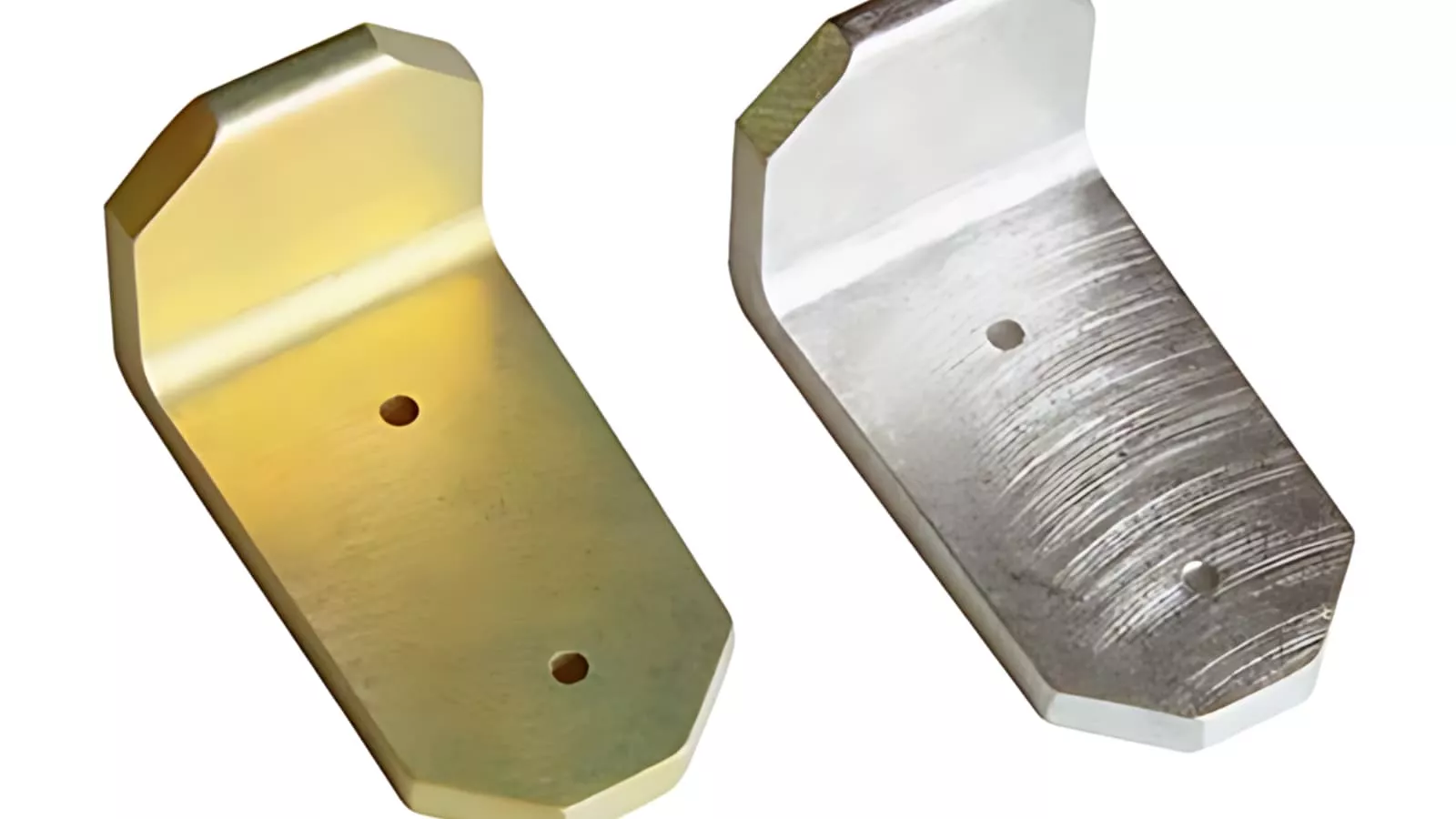

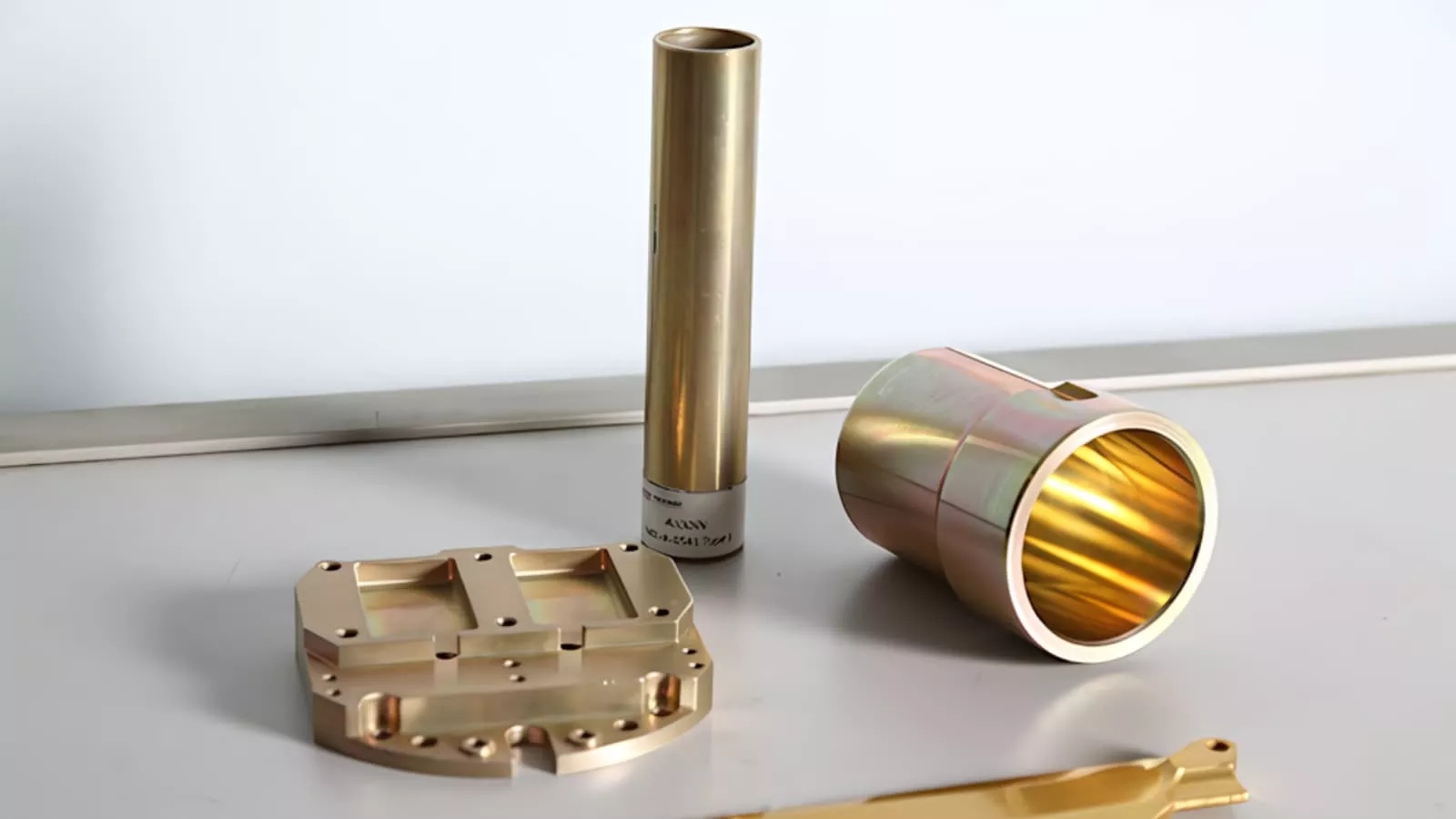

Alodine is a chromate chemical film coating for metals that enhances the part’s corrosion resistance, strength, surface adhesion, etc., without altering its dimensional accuracy. The chromate ions act as oxidizing agents, creating a passive layer that chemically bonds to the metal surface and is responsible for its protection.
Currently, the term “Alodine” is a trademark of Henkel Surface Technology. Other related chromate conversion coating brands include Bonderite®, Iridite®, Chromicoat®, and TCP-HF.
The alodine chromate conversion coating process contains hexavalent or trivalent chromium ions. Traditional alodine formulations such as Alodine 1200S contain hexavalent chromium known for stronger protection but toxic nature.
A newer alternative, such as Alodine 5200, contains trivalent chromium ions, which deliver good protection (lesser than the hexavalent ions) but are less toxic.
When to Choose Alodine Finishing
Unlike other surface coating techniques, alodining retains the part’s electrical conductivity. The thinness of the alodine layer prevents interference with the metal’s electrical conductivity while offering it protection. This makes alodination a reliable surface coating technique in industries that need electrical continuity.
The alodined metal parts adhere to dimensional tolerance due to their thinness (between 0.00001 and 0.00003 inches). As a result, automotive manufacturing or precision engineering requires tight tolerances and relies on the surface coating process.
The slightly rough surface of an alodined part promotes the adhesion of paints or primers. In addition, its corrosion resistance due to the passivating chromium ions makes it suitable for coating parts in harsh environments, e.g., saltwater and high humidity.
How Alodine Finish Works
Alodine finish chemically modifies metal surfaces, such as aluminum, enhancing properties like corrosion resistance, paint adhesion, and electrical conductivity.
The process starts with thoroughly preparing the surface by cleaning contaminants like oils, greases, and oxides using alkaline or acid cleaners, etching to protect untreated areas, and deoxidizing to remove remaining oxides.
After preparation, apply the Alodine coating via immersion, brushing, or spraying, with each method offering distinct benefits.
Immersion involves submerging the entire workpiece into a tank containing the Alodine solution. This method ensures consistent coating thickness and uniformity. However, it requires a significant amount of chemical solution, which can be costly and increase exposure to hazardous chromate ions.
Brushing is a manual method where the coating is applied using a brush, ideal for smaller parts or specific areas of a larger workpiece. It requires less specialized equipment but may result in uneven coverage and is labor-intensive, making it less suitable for large-scale production.
Spraying uses a spray gun to apply the coating. It’s versatile, providing uniform coverage for both large and small parts, and allows for quick application with minimal setup. However, spraying can lead to increased costs and potential inconsistencies in the coating.
After application, the chromate ions in the Alodine react with the metal to form a protective, gel-like layer on the surface. Once the coating stabilizes, any excess solution is rinsed off, and the part is dried, typically with air or forced hot air, to complete the process.
Types of Alodine Coatings
Different types of chromate conversion coating usually vary in chemical composition and shape. While there are many types, the most typical ones are Type 1 and Type 2 of the MIL-DTL-5541 standard. Other standards available today are AMS-C-5541, MIL-C-81706, and AMS-2473 and 2474. Below, we will consider the MIL-DTL-5541 types.
MIL-DTL-5541 Type 1
Type 1 chromate conversion coating, also known as hex chrome, creates a protective layer on metals through the use of hexavalent chromium. The process begins with meticulous surface preparation, following these steps:
- Cleaning: Alkaline detergents remove oils, oxides, and impurities.
- Rinsing and Drying: The surface is rinsed and dried to eliminate cleaning residues.
- Masking: Etching protects areas that won’t receive the Alodine finish.
- Rinsing and Drying: Another rinse and dry step follows etching to ensure a clean surface.
- Deoxidizing: This step removes any remaining oxides and contaminants.
- Final Rinsing and Drying: A final rinse and dry prepare the surface for the coating application.
The Alodine solution, containing hexavalent chromium, is then applied through immersion, brushing, or spraying. This reaction forms a corrosion-resistant layer on the metal, typically displaying a brown or gold hue, with the thickness and color influenced by the immersion time and solution concentration.
After coating, any remaining chemicals are rinsed off, and the surface is dried, either by air or forced air, to stabilize the chromate layer. This protective layer not only enhances corrosion resistance but also improves paint and primer adhesion.
Caution: Hexavalent chromium is highly toxic, and its use is regulated in many countries due to environmental and health concerns.
MIL-DTL-5541 Type 2
Type 2 chromate conversion coating, also known as hex-free chrome, employs trivalent chromium for corrosion protection, offering a safer alternative to hexavalent chromium.
This process can follow one of two paths: acid cleaning or alkaline cleaning.
In the acid cleaning process, acidic detergents are used to remove impurities like oils and oxides from the metal surface. Afterward, the part is rinsed and prepared for coating, which can be applied via immersion, spraying, or brushing. A final rinse completes the process, with an additional rinse in TCP-HF for enhanced protection.
The alkaline cleaning process begins with alkaline detergents to clean the surface, followed by rinsing. Deoxidation then removes any remaining oxides and contaminants. After another rinse and dry, the coating is applied using one of the three methods: immersion, spraying, or brushing, followed by a final rinse, including a TCP-HF rinse for added durability.
In both variations, trivalent chromium ions react with the metal surface to form a protective film. Unlike Type 1 coatings, Type 2 coatings are applied at lower temperatures, making the process more energy-efficient and easier on equipment.
Comparing MIL-DTL-5541 Type 1 and 2
Here’s a comparison of key features between Type 1 and Type 2 Alodine processes:
| Feature | Type 1 (Hexavalent Chromium) | Type 2 (Trivalent Chromium) |
| Chromium Type | Hexavalent Chromium (Cr6+) | Trivalent Chromium (Cr3+) |
| Color | Brown, gold, or clear | Clear |
| Application Temperature | Higher temperatures | Lower temperatures |
| Safety | Less safe, toxic | Safer, less toxic |
| Corrosion Resistance | Higher | High |
| Adhesion | Good | Good |
| Regulatory Constraints | Stringent due to hexavalent chromium toxicity | Fewer due to trivalent chromium’s safer nature |
Classes of Chromate Conversion Coating
Chromate conversion coatings have two categories: Class 1A and Class 3, each with distinct environmental and performance requirements.
MIL-DTL-5541 Class 1A
MIL-DTL-5541 Class 1A provides high corrosion resistance with a thicker chromate layer, typically 0.0001 inches in thickness. This thicker coating, which has a darker appearance, slightly reduces electrical conductivity and increases surface roughness, making it ideal for enhancing paint adhesion. These properties make Class 1A a popular choice for industrial components like aerospace aluminum aircraft hulls, landing gears, and wing panels, which need strong protection against extreme weather and mechanical stresses.
MIL-DTL-5541 Class 3
MIL-DTL-5541 Class 3 features a much thinner chromate conversion coating, with a maximum thickness of 0.00001 inches (0.01 mils), allowing for nearly perfect electrical conductivity. The coating typically retains a clear to light yellow hue. This class suits applications requiring corrosion protection while maintaining dimensional accuracy and electrical conductivity, making it a top choice in precision machining and consumer electronics.
| Feature | MIL-DTL-5541 Class 1A | MIL-DTL-5541 Class 3 |
| Corrosion Resistance | High | Moderate |
| Color | Golden to brown | Clear or light yellow |
| Thickness | Minimum of 0.0001 inches (0.1 mils) | Maximum of 0.00001 inches (0.01 mils) |
| Conductivity | Slightly lower due to thicker coating | Better maintained due to thinner coating |
| Applications | Aerospace, marine | Precision machining, consumer electronics |

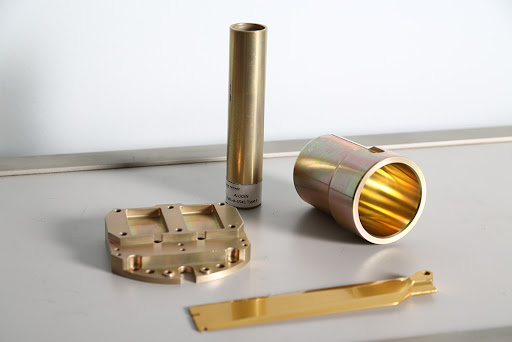

Advantages of Alodine Finish
The alodine process has several benefits, making it ideal for industries that value durability and precision. They include:
Thin, Uniform Coating
While both Alodine and anodizing layers protect aluminum alloys from corrosion, Alodine coatings are distinct due to their thin, uniform film, typically ranging from 0.5 to 4 microns. This thin layer is soft and porous, offering excellent adsorption properties without altering the part’s dimensions. These characteristics make Alodine an ideal choice as a base layer for paint, ensuring strong adhesion without compromising the precision of the part.
Corrosion Protection
The Alodine finish provides effective corrosion protection through its chromate layer, which shields the metal from environmental factors such as moisture and corrosive agents. This protective barrier significantly reduces the risk of rust and degradation, helping to extend the lifespan of the treated metal.
Application at Room Temperature
Applying Alodine films at room temperature offers a clear advantage for precision machining, reducing manufacturing complexity and minimizing energy use. This creates a more efficient and eco-friendly process. Newer Alodine formulations further lower environmental impact, providing manufacturers with a more sustainable option.
Fast Application Process
Conversion coating, particularly with Alodine, is favored in manufacturing due to its rapid application. The process typically takes just a few minutes, depending on the method used. For example, immersion in a chemical bath usually takes less than an hour, making it a quick and efficient choice for coating aluminum parts. This speed is a significant advantage in high-volume production environments.
Great Conductive Surface
The thinness of the Alodine finish ensures that it does not interfere with the electrical properties of metals. This characteristic makes it an ideal choice for coating components that need to maintain electrical conductivity, such as those used in electronic and electrical applications. As a result, the process is well-suited for environments where maintaining the metal’s conductive properties is essential, effectively addressing concerns about whether it affects conductivity.
Compatibility with Various Metals
Alodine is primarily for aluminum but is compatible with other metals, including zinc and cadmium. This wide material compatibility allows manufacturers to use a single treatment process for different materials while simplifying the production processes.
Improved Paint Adhesion
Alodine coatings enhance the adhesion of paints and primers to metal surfaces. The porous and slightly roughened texture provides a better mechanical bond for subsequent layers. An improved adhesion reduces the paint peeling or chipping, particularly in environments subject to mechanical stress or environmental exposure.
Disadvantages of Alodine Finish
Alodine finish also has its limitations, including toxicity and environmental concerns that can affect their application and performance, as explained below:
Toxicity and Environmental Concerns
Although generally safe and not harmful to the environment, Alodine can be quite toxic to the skin. Therefore, it must be carefully handled and disposed of after use, with some types regulated by government bodies.
Limited Color Options
Alodine coatings typically yield finishes in gold, brown, or clear shades, limiting color options. This can be a constraint for applications needing a specific visual appearance. For instance, the standard Alodine colors may not suffice in consumer products or decorative items, requiring additional finishing steps to achieve the desired look.
Lower Durability Compared to Anodizing
While Alodine coatings offer good corrosion resistance, they are generally less durable than anodizing. Anodizing produces a thicker, more resilient oxide layer, enhancing wear resistance and environmental stress, whereas Alodine films are thinner and softer, potentially wearing off more quickly and providing less protection against mechanical damage.
Limited Thickness Control
Controlling the thickness of Alodine layer can be challenging. The typical thickness ranges from 0.5 to 4 microns, but achieving a precise and uniform thickness can be difficult. This variability may impact performance in applications requiring exact dimensional tolerances, such as precision machining.

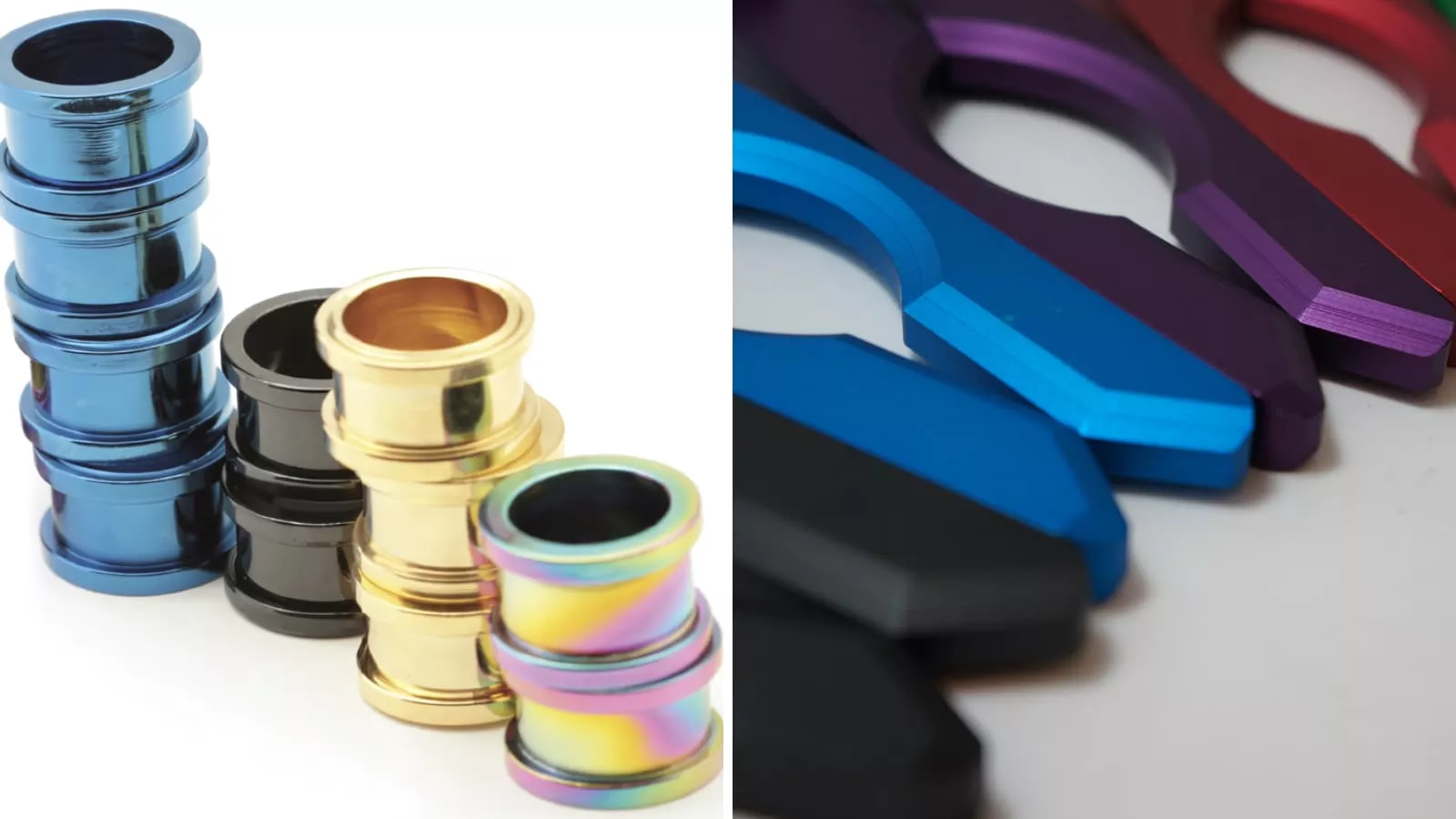

Key Differences Between Anodizing vs Alodining
Alodining and anodizing both enhance the surface properties of metals, especially aluminum, but they use different methods and achieve distinct results.
Alodine is a chromate conversion coating that is applied directly to the metal surface, creating a thin film typically between 0.5 and 4 microns. Anodizing, on the other hand, is an electrolytic process that thickens the metal’s natural oxide layer, resulting in a more substantial coating that can reach up to 25 microns.
The thinness of the Alodine layer makes it ideal for applications requiring precision, such as CNC machined parts, where maintaining exact dimensions is crucial. In contrast, the thicker anodized coating offers greater durability, wear resistance, and corrosion protection.
Alodining offers greater efficiency, as it works at room temperature and takes less time, while anodizing requires higher temperatures, longer processing times, and more energy.
While both processes enhance corrosion resistance, anodizing provides a harder, more durable coating, making it better suited for applications where long-term wear resistance is critical. In comparison, the softer Alodine coating suits applications requiring a thin, conductive layer.
| Feature | Alodine | Anodizing |
| Coating Thickness | 0.5 to 4 microns | 5 to 25 microns |
| Corrosion Resistance | Good | Excellent |
| Surface Hardness | Soft | Hard |
| Application Temperature | Room temperature | High temperatures |
| Processing Time | Minutes to an hour | Longer |
| Color Options | Limited (golden, brown, clear) | Wide range (clear, dyed) |
| Energy Consumption | Low | Higher |
| Dimensional Tolerance | Maintains original dimensions | Affects dimensions |
| Safety Concerns | Potential toxicity | Less toxic |
Applications of Alodine Finish
Alodine finishing is a vital metal finishing process for aluminum and aluminum alloy in various industries and fields.

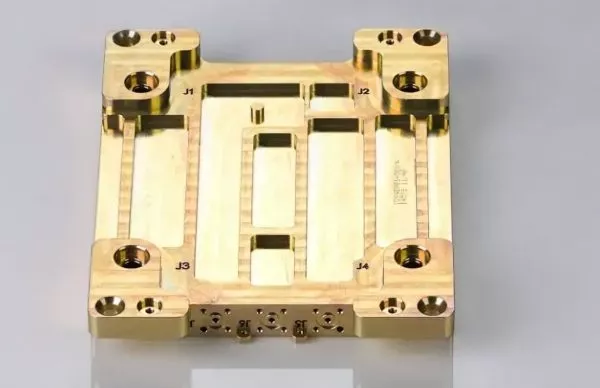

CNC Precision Machining Parts
The Alodine process proves valuable in CNC precision machining, where aluminum’s qualities make it a common choice. It provides corrosion resistance without changing the final dimensions of machined parts, improves adhesion for priming, and maintains surface electrical conductivity, making it essential for manufacturing precision components.
The Aerospace Industry
In the aerospace sector, aluminum’s lightweight and durability make it ideal for many components. Alodine coatings enhance corrosion resistance on critical parts like aircraft hulls, landing gear, and shock absorbers, ensuring long-term performance in demanding conditions.
Military and Defense industry
The military and defense sectors rely on aluminum for its strength and lightweight. Alodine coatings protect military-grade aluminum parts from rust and corrosion, ensuring reliability in harsh environments.
Electronics and Electrical Industries
In the electronics and electrical industries, the thin Alodine coating is essential for maintaining dimensional accuracy while providing corrosion protection. Its ability to enhance surface properties without affecting the functionality of components makes it a key process in the production of electronic devices and electrical equipment.
Choosing the Right Alodine Finish for Your Project
Alodine, a chromate conversion coating, protects aluminum from corrosion, making it essential for industries like CNC machining. Choose the right finish to ensure your aluminum components stay protected and meet project requirements.
At RapidDirect, we are committed to providing high-quality finishes that meet your specific needs. Our experienced team is ready to address any related challenges, ensuring your aluminum parts receive the best possible protection.
Ready to get started? Contact us today, upload your files, and receive an instant quote for your finishing needs.
Conclusion
Alodine coating is a crucial surface finish for protecting aluminum from corrosion, especially given the widespread use of aluminum in various industries. Understanding the basics of Alodine is essential when working with precision parts. Not only does it provide excellent corrosion resistance, but the application process is also straightforward and efficient. However, it’s important to handle Alodine with care, as it can be toxic and harmful to the environment if not managed properly.
FAQs
Alodine finish is crucial for CNC machining parts because it provides a protective layer that prevents corrosion without altering the precise dimensions of the components. This is particularly important in applications where maintaining tight tolerances is essential. Additionally, the Alodine coating improves paint adhesion and maintains electrical conductivity, making it ideal for parts that require both durability and performance in challenging environments.
Chromate conversion coatings are typically very thin, ranging from 0.5 to 4 microns in thickness. The exact thickness depends on the specific process used and the intended application. Use thinner coatings of around 0.5 microns when maintaining electrical conductivity is crucial, while thicker coatings, up to 4 microns, offer better corrosion resistance for tougher environments.
