For hardware startup founders and senior mechanical engineers, the race to market is relentless. A delay of just a few weeks can mean missing a critical product launch window or losing early-adopter market share to a competitor. Traditionally, transitioning a product from the prototype phase into mass production presented a massive bottleneck: steel tooling. Hardened steel molds (like P20 or H13) offer incredible durability, but they come with crippling 8 to 12-week lead times and demand tens of thousands of dollars in upfront capital before the Design for Manufacturing (DFM) is even fully locked.
Enter aluminum injection molding. No longer just a cheap alternative for rough prototypes, modern aluminum tooling has evolved into a highly strategic asset. It serves as the ultimate “bridge tooling” solution—allowing teams to rapidly acquire 2,000 to 5,000 beta units, validate designs in the real world, and generate revenue while the final mass-production steel molds are still being cut.
This guide explores the strategic value of aluminum injection molding, evaluates high-performance tool-grade alloys, and explains why sourcing your molds through a factory-direct partner is far safer than relying on opaque manufacturing brokers.
What is Aluminum Tooling and Why Use It as “Bridge Tooling”?

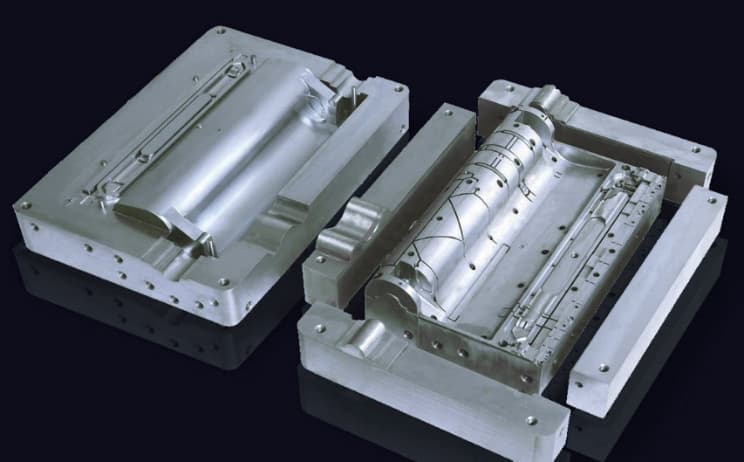

Aluminum injection molding is an innovative technique based on injection molding used to produce parts (either prototypes/real products) with aluminum tooling. Historically, engineers have relied on conventional injection molding, which relies heavily on steel injection molds to produce large numbers of parts. However, conventional injection molding processes using steel leave much to be desired, as they do not guarantee quick production. In fact, steel injection molding can take months from mold design to the final product.
Bridge tooling is the strategic intermediate step between one-off prototyping (like 3D printing or CNC machining) and high-volume mass production. When you need to get a product into the hands of beta testers or early customers, you cannot afford to wait months. Aluminum injection molds can be created in just days, producing molds, prototypes, and final products. A typical aluminum cavity is made in about 10-15 days, as the process requires only mechanical methods.
By using low-volume injection molding with aluminum molds, hardware teams mitigate significant financial risks. If a design flaw is discovered during early user testing, modifying an aluminum mold is vastly cheaper and faster than reworking hardened steel. Aluminum molds are softer and easier to machine, making repairs or design tweaks much simpler and more cost-effective than with hardened steel molds.
High-Performance Aluminum Alloys: Beyond “Standard” Aluminum
A common misconception among newer product developers is that all aluminum is soft, weak, and unsuited for injection molding pressures. However, modern prototype injection molding relies on specialized, high-performance alloys. In aluminum injection molding, selecting appropriate cutting parameters, grades, and geometries will lead to a more efficient process. Therefore, aluminum alloys used in tooling will increase productivity while lowering the cost-per-component ratio.
QC-10 Aluminum: The Thermal Conductivity Champion
When cycle time is a critical factor, QC-10 aluminum is often the alloy of choice. Aluminum has a high coefficient of thermal expansion. Therefore, after heating to the correct temperature, it can cool quickly, which speeds up production. QC-10 takes this inherent property to the extreme. Because aluminum prototype molds dissipate heat much faster than steel molds, they can heat and cool much more quickly. During injection molding, the cooling time accounts for a significant portion of the overall cycle time. By utilizing QC-10, manufacturers can dramatically reduce this cooling phase. Choosing an aluminum molding process allows for a shorter cycle time, resulting in faster part production.
Aluminum 7075-T6: Aircraft-Grade Strength for Tooling
While standard aluminum might warp under the intense clamping forces of an injection press, 7075-T6 is an aerospace-grade alloy known for its exceptional yield strength. For workpiece accuracy, a tool with adequate mechanical strength and rigidity is necessary. Aluminum has strong metallic properties, which maintain its rigidity and strength to some extent. A tool must be strong enough during the manufacturing process. By using an alloy such as 7075-T6, engineers ensure the mold can withstand the repetitive stress of the injection cycle. Aluminum alloys are strong and can support batches of up to 5000 parts.

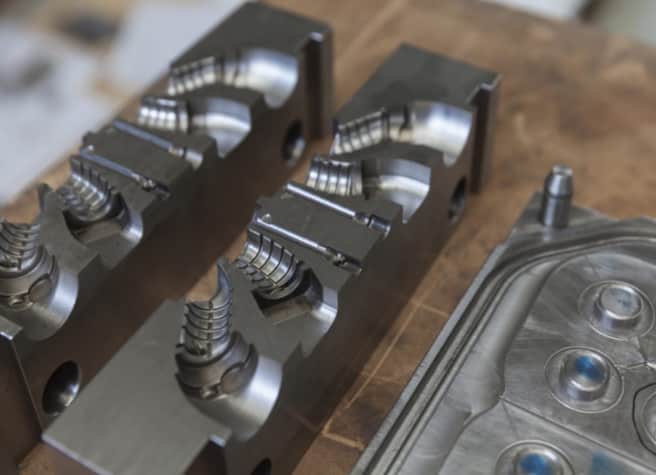

Aluminum vs. Steel Injection Molding: A Strategic Comparison
While both injection processes are complementary, they offer distinct advantages and disadvantages that engineers must consider before adopting one. Based on different features, there are many differences between an aluminum injection mold and a steel plastic injection mold. Below is a strategic breakdown comparing tool-grade aluminum alloys against standard P20 steel.
| Tooling Material | Thermal Conductivity (W/m·K) | Machinability Index | Typical Tool Life (Shot Count) | Primary Use Case |
| Aluminum 7075-T6 | ~130 | Excellent | 5,000 – 10,000 | High-strength bridge tooling, complex low-volume parts. |
| QC-10 Aluminum | ~160 | Excellent | 2,000 – 5,000 | Rapid-prototyping injection molding with extremely fast cycle times. |
| P20 Tool Steel | ~30 | Good | 50,000 – 500,000+ | Long-term mass production, high-volume consumer goods. |
Upfront Cost & Lead Time (The Aluminum Advantage)

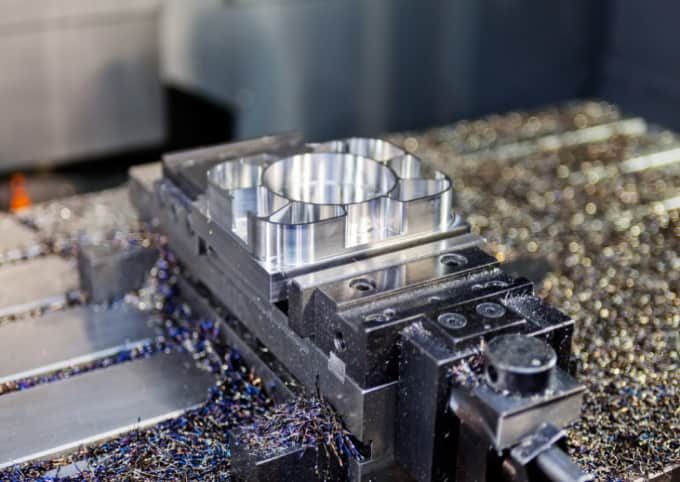

The most immediate benefit of aluminum tooling is the reduction in financial risk. The initial tool investment for aluminum is less if all other factors are equal. The cost of an aluminum injection mold is lower than that of a steel injection mold. Furthermore, aluminum plastic injection molds are manufactured from aluminum using CNC machining. There is no need for special manufacturing equipment or thermal processing. In contrast, steel injection molds are expensive and take months to manufacture. This is due to steel’s rigidity and hardness.
Thermal Dynamics and Cycle Times
Aluminum’s ability to manage heat not only speeds up production but also improves the physical quality of the molded parts. Plastic parts injection-molded with aluminum molds benefit from faster, more even heating and cooling than steel molds, helping reduce defects such as sink marks, voids, and burn scars—resulting in more consistent quality and fewer rejects. Aluminum molds provide a faster path to product production.
Tool Life and Volume Limitations (When to Transition to Steel)
It is crucial to understand aluminum’s limitations when planning your product lifecycle. Mold robustness is the number of parts a mold can produce before it becomes too corroded or worn out. Aluminum prototype molds come from aluminum, which, compared to steel, is a soft material. Therefore, it has less mold robustness than steel injection molds. Aluminum molds wear out faster under high heat and pressure, making them unsuitable for long runs or mass production. After several thousand production cycles, aluminum plastic injection molds will wear out and have non-conformities, leading to flashing in the product.
Conversely, steel injection molds are hard since their manufacturing process includes heat treatment. They also possess few joints, which makes them rigid and durable; thus, steel injection molds can produce millions of parts. The smart NPI strategy is to use aluminum to bridge the gap: launch the product, gather revenue and feedback, and then invest those profits into P20 or H13 steel molds for the millions of units that follow.

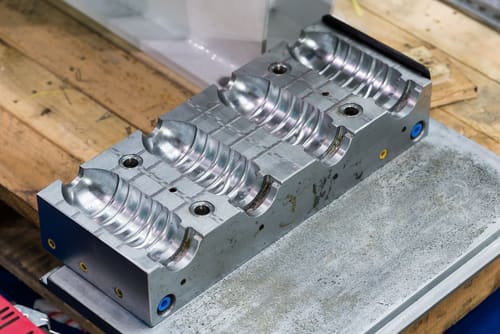

Engineering Best Practices for Aluminum Mold Design (DFM)
The aluminum mold design is an essential step in the product manufacturing design process. The failure of an aluminum mold for plastic injection molding is often due to a poor design or poor tooling practices. To maximize the lifespan of a QC-10 or 7075-T6 mold, mechanical engineers must adapt their DFM practices.
Incorporating Larger Draft Angles
Because aluminum is softer than steel, the ejection phase of the molding cycle places significant stress on the cavity walls. If a plastic part grips the core too tightly as it cools, the friction during ejection can scratch or deform the aluminum. To mitigate this, engineers should incorporate draft angles that are more generous (typically 1 to 2 degrees beyond what would be required for steel) to ensure a smooth, frictionless release.
Ensure Uniform Wall Thickness
Thinner sections in an aluminum mold design tend to cool and solidify first. Dense areas act as reservoirs that feed the lighter cells as they cool and harden. Feed paths must account for solidification in both thick and thin sections. Doing this ensures the thickness of the plastic part is constant, simplifies the aluminum molding process, and allows progressive solidification to occur quickly.
Strategic Use of Steel Inserts and Fillets
You do not have to choose purely between aluminum and steel; hybrid approaches are highly effective. Inserts of various shapes and materials, such as brass-thread inserts, can be incorporated into the aluminum mold design to enhance mold durability and provide extra-hard surfaces where needed. If your design features intricate, high-wear areas such as shut-offs or complex lifter mechanisms, these sections can be machined from steel and inserted into the main aluminum mold base. Furthermore, when designing aluminum plastic injection molds, avoid sharp corners; use fillets instead. The presence of sharp corners in the procedure may significantly affect the shrinkage of the produced part, leading to cracking or permanent deformation.
Factory-Direct vs. Brokers: Sourcing Your Aluminum Molds Safely
Knowing how to design an aluminum mold is only half the battle; knowing who is actually cutting your tool is just as critical. In recent years, the manufacturing industry has seen a massive influx of “marketplace” brokers.
The Hidden Costs of Manufacturing Marketplaces (Brokers)
Broker networks act as digital middlemen. You upload your CAD file to their sleek website, and they outsource your project to a sprawling, opaque network of third-party machine shops—often choosing the lowest bidder to maximize their own margins. This “Black Box” model is incredibly risky for bridge tooling. If a broker routes your mold to a facility that uses subpar aluminum or fails to properly machine the critical shut-off surfaces, you will experience severe flashing and premature tool failure. Because the broker does not own the CNC machines or employ the floor technicians, resolving quality issues turns into a nightmare of miscommunication and delayed timelines.
RapidDirect’s In-House Advantage: AI DFM and Dedicated CNC Capacity
For reliable metal injection molding and aluminum tooling, you need a partner that controls the process from end to end. When choosing an aluminum injection mold company, consider mold quality, lead time, customization capabilities, and engineering support. A reliable partner should offer not just manufacturing, but also design feedback and fast, cost-effective tooling options.
By working with a factory-direct manufacturer like RapidDirect, you eliminate the broker’s markup and gain direct access to the engineers who are actually cutting your mold. RapidDirect is a trusted aluminum injection mold company known for high-quality rapid tooling, flexible production volumes, and expert support. We at RapidDirect provide optimized aluminum injection mold design in product manufacturing. Because we utilize our own in-house, high-speed CNC machining centers, we guarantee the alloy you specify—whether it is standard aluminum, QC-10, or 7075-T6—is exactly what goes into your machine.
Conclusion: Accelerating Your Time-to-Market
Time-to-market is the ultimate currency for hardware startups and NPI teams. Navigating the transition from prototype to mass production can seem overwhelming, but aluminum bridge tooling offers a strategic shortcut. However, maximizing this advantage requires partnering with the right company—one that understands the molding process and has an excellent track record in product development.
Do not let the grueling 12-week wait for steel molds kill your product launch momentum. By leveraging high-performance aluminum alloys and factory-direct manufacturing, you can validate your designs, secure early revenue, and dominate your market window.
Ready to accelerate your NPI cycle? Upload your design files to RapidDirect today. You can easily access our digital platform to get instant quotes, professional DFM analysis, and expert manufacturing advice tailored specifically to your bridge tooling project.
FAQs
The lifespan of an aluminum injection mold depends on its use in product manufacturing. When used for prototyping, aluminum injection molds can produce a few thousand parts due to the density of their molds. However, the lifespan shortens when used for intense product manufacturing.
In recent times, processes such as surface coating and anodizing have been incorporated to improve the durability of aluminum molds, making them useful in production cycles.
The use of aluminum or steel injection molding would depend significantly on the nature of your design and the type of products you intend to achieve. While both injection processes are complementary alternatives, they both provide distinct advantages and disadvantages that engineers must consider before adopting a manufacturing process.
When choosing an aluminum injection mold company, it’s important to consider factors like mold quality, lead time, customization capabilities, and engineering support. A reliable partner should offer not just manufacturing, but also design feedback and fast, cost-effective tooling options.
RapidDirect is a trusted aluminum injection mold company known for high-quality rapid tooling, flexible production volumes, and expert support. You can easily upload your design files to get instant quotes and professional advice tailored to your project.
