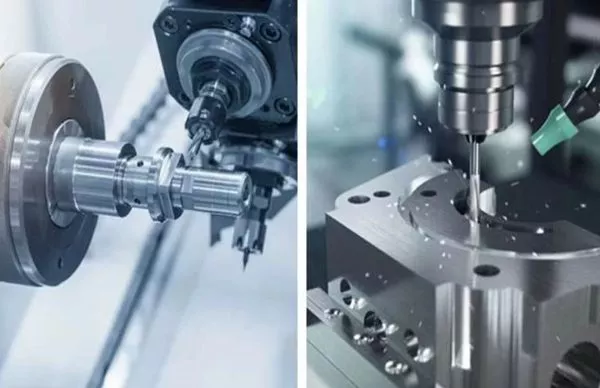

Two widely-known machining procedures used for modern manufacturing are CNC turning and milling. CNC turning vs milling work with CNC technology to manufacture very accurate parts. However, their mode of operation is different. CNC milling makes use of cutting tools with multi-points for shaping a fixed workpiece. This makes it suitable for detailed components as well as complex geometries.
CNC turning, on the other hand, deals with the rotation of the workpiece, while single point cutting tools get rid of material. This makes it suitable for parts having a cylindrical form. Understanding how CNC turning vs milling both processes differ is important in determining the most suitable method with respect to the manufacturing requirements, material, and part design.
What is CNC Milling?
CNC milling makes use of a rotating milling cutter to get rid of material from workpieces. In contrast to CNC turning, which causes the workpiece to spin, the process ensures the material stays fixed as the tools carve highly accurate holes, shapes, and complex features. With this process, you can create complex profiles and shapes, which wouldn’t have been possible with manual milling.
Furthermore, CNC-integrated milling machines run on many axes, usually between 3 and 5, ensuring accurate and detailed cuts. Several industries, including the medical, automotive, and aerospace industries, depend on this procedure to manufacture top-notch components with tight tolerances. You can mill different materials, which include composites, plastics, and metals, thereby serving as a versatile solution for manufacturing.
As software and automation continue to experience advancements, modern machines for CNC milling provide higher efficiency, accuracy, and speed. This technology will always be an essential aspect of manufacturing, thereby ensuring that there’s consistency in custom fabrication as well as bulk manufacturing.
What is CNC Turning?
CNC turning is an accurate process of machining that helps shape cylindrical parts through the rotation of the workpiece as the cutting tool takes out the material. You perform the process on the CNC lathe machine, which helps to achieve repeatability and accuracy. The tool can pass through multiple axes, ensuring the creation of complex grooves, threads, and shapes with high accuracy.
Furthermore, in contrast to manual lathes, CNC turning works with programmed instructions to ensure higher production efficiency and reduce human error. You can use this process in various industries, including medical manufacturing, automotive, and aerospace, where smooth finishes and tight tolerances are necessary.
Also, you can shape materials like wood, plastic, and metal using CNC turning, ensuring that it is a reliable solution for achieving mass and custom manufacturing. Also, with improvements in technology, CNC lathes of today feature multi-axis capabilities, thereby enabling more complex designs. This is why CNC turning is widely regarded as the foundation of modern manufacturing, which ensures consistency and quality of machined components.
CNC Milling: What are the Features and Processes Involved?
It is one of the important milling machining processes that involves the use of rotating cutting tools to get rid of material from a workpiece. A computer controls the cutting tools used in this process. The CNC mill machining method is especially popular across different industries because of its benefits. This method is efficient, precise, and can create complex parts.
In this section, we explain CNC machining processes and features.
CNC Machining Process
During the CNC mill process, digital design is the first step you begin with. This step requires you to create a design with the help of a program known as CAD (computer-aided design). After this, you use CAM (computer-aided manufacturing) software to convert the design into a CNC program. The CAM software gives the machine certain instructions as regards the cutting depth, speed, and tool paths.
Immediately, you load the CNC program, the milling machine secures the workpiece while the cutting tool rotates along different axes to create the material you desire.
You can operate the milling machine on multiple axes while ensuring precise cuts. This machine follows specific instructions to remove material until it achieves the final shape. You can also minimize heat accumulation by using a coolant. This coolant can also extend the lifespan of the tool. The CNC milling process is an automated one and, as such, offers high accuracy. This makes it one of the best machining methods for custom parts production and mass manufacturing.
What are the Components of a CNC Milling Machine?
A CNC milling machine has many core parts that help you achieve precise and intricate cuts. The main components of this machine are:
- Spindle: This part of the machine grips and rotates the cutting tool to enable it to cut through the workpiece.
- Control panel: The control panel is the brainpower of the machine. This is where you enter the program, make adjustments, and regulate the machining process.
- Cutting tool: There are different types of cutting tools. These include drills, end mills, and face mills. These tools help you create the shape you want.
- Worktable: This part of the machine holds your workpiece and moves in various directions. The way you configure your machine will determine the direction in which the worktable.
- Axes: Some axes determine the movement of the work table and cutting tool. These axes are termed X, Y, and Z. They can also be axes A and B in some advanced machines.
- Coolant system: A coolant in a CNC machine works by minimizing friction and heat.
The components mentioned above are crucial in ensuring the smooth operations of this milling machine. When all these components work together, they help you create CNC-milled parts with complex contours or geometry.
CNC Milling Operations
You can use this machining process to create various shapes and features in a workpiece. These machines can carry out different tasks like boring, plain milling, drilling, and angular milling, among others.
- Boring: This process enlarges already drilled holes. It is common in engine components.
- Face Milling: In this type of operation, you create smooth, even surfaces by cutting shallow surfaces on your workpiece.
- Drilling: You can use a CNC drilling machine to drill holes on a surface. This operation requires you to use specialized drill bits to ensure the exact diameter and depth.
- Peripheral Milling: In this operation, the cutting tool goes along the materials ‘ edges, thereby shaping the external features of the workpiece.
- Thread Milling: You can use CNC mills to make inner or outer threads in materials. It is a much better alternative than traditional tapping.
- Slot Milling: This operation helps to create keyways or grooves in a material. It is a machining operation used for mechanical parts.
Each of the operations discussed above helps in making custom parts for different industrial applications.
Benefits and Drawbacks
Benefits
CNC milling is one of the most popular machining processes used across a wide range of applications. Known for its precision and efficiency, you can use this machining process to achieve tolerances within tiny workpieces. Due to its consistency and high precision, it is a preferable choice for mass manufacturing.
Furthermore, it integrates automation, which reduces the need for human intervention. This helps to minimize errors and increase efficiency. Also, the milling process is used across various industries due to its versatility and efficiency. CNC mills can work with different materials, and you can use them in different applications like industrial, medical, aerospace, and automotive.
Drawbacks
Despite its benefits, CNC milling comes with its challenges. Cost is a major concern for most manufacturers. The cost of the machine and programming is expensive. Another drawback is that only skilled operators can operate and machine and program it. Machine maintenance is also a concern for manufacturers. Regardless of these downsides, the accessibility and efficiency of CNC milling keep improving.
Materials Compatible with CNC Milling
You can mill different kinds of material workpieces, including metal & alloys, thermosets, thermoplastics, wood, and even ceramics.
- Metals: CNC milling is compatible with metals like brass, copper, aluminum, titanium, etc.
- Composites: These include fiberglass and carbon fiber. Aerospace and automotive manufacturers mill these materials during production.
- Plastics: Plastics such as polycarbonate and ABS are useful in applications where there is a need for lightweight parts.
- Wood: CNC mills are useful in the furniture industry for shaping engineered wood.
CNC Turning: What are the Features and Processes Involved?
CNC turning is a machining process that shapes cylindrical parts with the help of computer-controlled lathes. It is a common process in manufacturing as it creates complex components. Turn-mill operations offer consistency, efficiency, and accuracy.
CNC Turning Process
The first step in CNC turning involves using CAD software to build a digital design. You will need to convert this design into machine programs with the help of a popular software known as CAM (computer-aided manufacturing). Load the program in the CNC lathe to secure the workpiece on the spindle.
During this process, there is a stationary tool that rotates along various axes to remove material. This step helps you create the shape you want. You can use the cutting tool to make contour and straight cuts. The type of cuts you achieve depends on the instructions you program on the machine.
You can use advanced CNC lathes to achieve complex geometries. These lathes have multi-axis features that offer machining functions like threading and drilling. CNC turning is an automated process that requires less human intervention and ensures consistency.
Components of a CNC Turning Machine
There are many important components in a CNC turner. Each of these components plays a crucial role in achieving precise cuts. These components include:
- Chuck: This machine part helps you hold the workpiece in the right position. Some CNC turning machines have collets to hold smaller parts.
- Spindle: The spindle uses controlled speeds to rotate the workpiece, thereby ensuring precise cutting.
- Bed and Carriage: The bed ensures stability, and the carriage rotates the cutting tool with a workpiece.
- Tool turret: A tool turret switches different cutting tools during machining.
- Cutting Tool: This part of a CNC turning machine removes the material and refines the workpiece by moving it along various axes.
- Control panel: The control panel in a CNC turner helps to input programs and make necessary adjustments.
CNC Turning Operations
You can use a CNC turning center to perform a lot of tasks. This helps you make various features on your workpiece. Below are common operations the CNC turning machines can handle.
- Turning: This involves removing a material to make cylindrical shapes. You remove the material in line with the length of the workpiece.
- Facing: A common operation that creates flat surfaces by removing material from the workpiece’s end.
- Drilling: This requires you to use CNC lathes to create holes in the workpiece’s axis. You can achieve this by using specialized drill bits.
- Boring: You use a tool to enlarge holes to a certain dimension.
- Threading: Threading is used to cut outer or inner threads in your workpiece for fastening.
- Grooving: In this operation, grooves on the surface of your workpiece are made using a cutting tool.
- Knurling: This involves adding patterns to the surface of your workpiece.
You can use CNC turning machines to perform these operations with high precision.
Benefits and Drawbacks
There are many advantages to using CNC turning. In today’s manufacturing, this machining method is useful due to its high precision and efficiency. With CNC lathes, you can get consistent quality parts regardless of the tight tolerances. This machining process adopts automation, which helps speed up the production process and reduce human intervention.
CNC turning is also a versatile machining process that you can integrate to create both simple and complex items that are axially symmetrical. Therefore, it is widely used across different industries.
Although all these benefits make them highly adopted, they have certain drawbacks. These include high setup costs, as well as the purchase and programming of the machine. Since CNC turning integrates automation, skilled operators are still required for programming and maintenance.
Tool wear is also a major drawback, particularly when you are working on hard materials. These materials can increase the cost of production since more effort and time will be required. CNC machining still remains an efficient method for creating intricate components despite its weaknesses.
Materials Compatible with CNC Turning
CNC turning is a versatile machining process you can use on different materials. Below are common materials.
Metals: Common metals like titanium, steel, copper, and aluminum are compatible with CNC turning
Plastics: You can use CNC to turn workpieces made of plastic. Common plastic materials are polycarbonate and ABS.
Composites: In applications where strength and light weight are important factors, composites like fiberglass and carbon fiber are often used.
Wood: Although it is less common to use CNC turning machines on wood, CNC lathes can create decorative pieces from wood.
The type of material you are working on will determine many factors like cutting speed, type of cutting tool, and others. The program and settings on your CNC turning machine depend on the type of material your workpiece is made of.
What are the Similarities Between CNC Milling vs Turning?
CNC milling and CNC turning are both machining processes commonly used in precision manufacturing. Although there are some differences between these two processes, they have some common features. So, let’s discuss the similarities between these two…
Automation
Both machining processes require you to use computer numerical control (CNC) technology for precision and repeatability. In this aspect, these machines follow already programmed instructions designed by CAM software. The cutting tools in these machines follow these instructions to ensure precision. Therefore, both machining processes integrate automation, which helps to minimize human mistakes and speed up production. In the long run, manufacturers will be able to achieve mass production.
Material Compatibility
Another interesting similarity between these processes is that you can use them on different materials. They are compatible with metals, wood, plastics, and even composites. Their versatility makes them highly preferred across different industries, such as medical, aerospace, automotive, construction, and more.
Cutting Tool
Both milling and CNC turning require you to use cutting tools to get rid of material from your workpiece. For CNC millers, there are rotary cutting tools that help you achieve the shape you want. CNC turning machines require the use of stationary single-point cutting tools. Also, both machining methods require you to change tools based on the material of your workpiece and parts geometry. Both milling and turning require you to inspect and maintain your tools to extend the tools’ lifespan.
Multi-Axis Machining
CNC turning and milling machines can achieve complex geometries by operating on multiple axes. Modern CNC mills feature a five-axis function. Traditional CNC millers only offer three axes.
This is similar to CNC lathes, as modern models now include multi-axis capabilities like live tooling lathes. These lathes integrate milling functions during a turning process. With these recent capabilities, you will be able to create intricate designs with both CNC milling and CNC turning.
Industrial Applications
You can use both CNC turning and CNC milling in similar applications since they can both create intricate parts with precision.
For instance, you can use both machining methods to produce engine components in the aerospace sector. Some automotive manufacturers use these two methods to create structural parts like brackets and shafts. The medical industry depends on CNC milling and turning to manufacture surgical tools, diagnosis equipment, implants, and medical furniture. CNC turning and milling share a lot of things in common. This is evident in their material compatibility, automation, and applications.
CNC Turning vs Milling: What are the Differences?
Although you can use both CNC milling and turning to create complex geometries with precision, both of them are suitable for use in modern manufacturing. The difference between a lathe and milling machine has to do with their operation, tooling, machining complexity, and other aspects. Let’s explore their differences;
Workpiece Movement
During milling, your workpiece maintains a stationary position as the cutting tool moves along several axes to create your desired shape.
This is different when it comes to CNC turning. In this machining process, your workpiece moves with speed as the stationary cutting tool gets rid of material. Due to this difference, the types of shapes you can create with each method differ.
Cutting Tools
The type of cutting tools each machining method uses differs. CNC milling gets rid of material from your workpiece by using multi-point cutting tools. These tools include face mills, drills, and end mills. They can handle different tasks like slotting, drilling, etc.
On the other hand, CNC turning removes material by using single-cutting tools. You can use CNC turning tools to create tubular or round parts since they have conical and cylindrical shapes.
Machining Complexity
If you need to create complex geometries like intricate designs, 3D shapes, and pockets, you may need to integrate CNC milling. This process integrates multi-axis capabilities that help you produce intricate and detailed components for the medical, automotive, and aerospace industries.
Due to the types of cutting tools and processes involved in CNC turning, it is ideal for producing symmetrical or cylindrical parts like fasteners and rods. Advanced CNC turners have live tooling configurations that can carry out enhanced milling tasks. However, such turning machines have limited capabilities to create intricate geometries.
Number of Axes
CNC millers usually feature three axes, X, Y, and Z, but advanced models feature five axes for improved efficiency. With these extra axes, you can make more complex cuts without the need to reposition your workpiece.
CNC turners have just two axes, X and Z. However, some modern turners may feature more axes to perform live tooling tasks. CNC Milling machines enable multi-directional machining, which helps during mass production.
Production Speed
If you want to create cylindrical parts, CNC turning is a better option as it is faster. This is because the rotation ensures continuous cutting. When producing round components in large quantities, CNC turning is usually preferable.
This doesn’t undermine the suitability of CNC milling. You can use this to create complex cuts. This process allows you to use multiple tools, although you might need more time to achieve intricate designs.
Industrial Applications
CNC turning and milling is useful across the medical, aerospace, and automotive industries. However, the type of parts you produce will determine the suitable machining process. For instance, you should use milling to create components that have complex shapes. With this, you can achieve components like medical implants, engine housings, custom machine hardware, and molds. Consequently, CNC turning is suitable for manufacturing cylindrical parts like shafts, bolts, and screws.
What are the Applications of CNC Turning vs Milling?
Different industries integrate both CNC milling and CNC turning due to their efficiency and precision. While CNC turning and milling may both have similar applications, each machining method has its own unique areas.
Applications of CNC Milling
Aerospace
If you want to create complex parts, CNC milling is a suitable option since it integrates multi-axis machining. In the aerospace industry, where there are complex components to produce, this machining process has become a more preferred option. You can use this machining method to design airframe parts and engine housings.
Automotive
Due to its high level of precision, CNC milled 3 has become a popular machining process in the automotive industry. Automotive manufacturers use this method to produce brackets, engine blocks, suspension components, and other complex parts.
Medical
CNC milling plays a crucial role in the medical industry, where intricate and complex parts like prosthetics and surgical instruments are needed. You can use this process to machine materials like stainless steel and titanium.
Electronics manufacturing
CNC milling is suitable for electronics manufacturing where precision and efficiency are important. As an electronic manufacturer, you can use this process to produce heat sinks, PCB housings, and enclosures.
Tool and die making
This industry also relies on the use of CNC milling to produce complex tools. You can use this process to create dies and molds.
Other industries that integrate CNC milling include energy, construction, and manufacturing. For instance, it helps you to create some parts of wind turbines and power generation systems. Also, milling p is a versatile machining process that works on different materials like plastics, wood, and metals. This makes it a crucial process required in the mass production of complex parts.
Applications of CNC Turning
CNC turning is perfect for creating components that have cylindrical or symmetrical shapes. Therefore, you can use this machining process for creating round parts.
Automotive
For instance, automotive manufacturers use CNC turning to design pistons, shafts, fasteners, and bushings. These components need precision to achieve accurate diameters and fine finishes.
Aerospace
The aerospace industry also integrates CNC turning in producing engine shafts and landing gear parts. These parts require a high level of precision during manufacturing.
Another industry that relies on CNC turning is the medical sector. Parts of medical equipment, like screws, joint replacement components, etc., require precision in their manufacturing. CNC turning helps manufacturers to produce these parts precisely.
Oil and Gas
Industries involved in oil and gas make use of CNC-turned parts for the drilling of couplings, pipeline fittings, and components, which need to withstand harsh conditions and high pressure. In addition, CNC milling is
Manufacturing of Industrial Equipment
CNC turning also helps in producing industrial equipment like pulleys, gears, and rollers, which are utilized in conveyor and machinery systems.
Electronics Industry
The electronics industry utilizes CNC turning for the creation of precise and small contacts and connectors for several electrical applications.
CNC Turning vs Milling: Which Should You Choose?
Two important machining processes are CNC milling and CNC turning. However, the right choice for you between CNC turning vs milling is dependent on the complexity, shape, and manufacturing requirements. You should use milling when dealing with components having complex geometries, complex details, pockets, flat surfaces, etc.
It also makes use of multi-point cutting tools to take out material. This is why it is great for medical, automotive, and aerospace applications, where there is a need for complex and very accurate designs. Also, with milling machines, you get multi-axis capabilities, thereby helping you manufacture 3D shapes and complex parts.
For CNC milling, you can use milling when machining symmetrical or cylindrical parts. It is suitable for fasteners, bushings, rods, and shafts. This is a very efficient process for mass manufacturing, offering quick cycle times and great surface finishes. Milling is useful in different industries, including automotive, medical, and oil and gas.
It would be the better choice to mill the work when dealing with parts requiring many cutting angles and complex shapes. However, when handling round parts requiring high efficiency and accuracy, choose CNC turning.
CNC Milling vs Turning Services: Why You Should Choose RapidDirect
CNC milling and CNC turning require high reliability, efficiency, and accuracy, and RapidDirect offers excellent, high-quality machining with quick turnaround times. Also, our CNC milling services are advanced, handling intricate details and geometries. We also provide high-quality CNC turning services, producing very accurate cylindrical components with smooth finishes, which are great for fasteners, bushings, and shafts.
Focusing on competitive prices, tight tolerances, and streamlined online quotes, RapidDirect ensures a smooth manufacturing process. They also boast an expert team and use cutting-edge technology, which makes them trustworthy when handling precision milling services.
Conclusion
CNC milling and CNC turning are very important in manufacturing, with each performing well in several applications. Milling is great for multi-angled and complex components, while turning, on the other hand, is suitable for manufacturing round and symmetrical parts. Choosing between CNC milling vs turning depends on several factors, including material, manufacturing volume, and part complexity. In so many cases, manufacturers use the two methods to get the best results. By choosing the right process for machining, businesses may reduce costs, enhance efficiency, and achieve better product performance.
Choosing the right manufacturing partner and selecting the machining process are equally crucial. An outsourcing partner with relevant experience, expert engineers, CNC equipment, and a large network of material supply chains can guarantee both quality and cost benefits. If you are looking for related prototyping and manufacturing services, our CNC milling and CNC turning services can provide the solutions you need.
