What’s End Milling? Cutter Types, Uses, & Benefits

January 17, 2025 · About 3 minutes
What is end milling
Share
Table of Contents

CNC milling is a versatile machining process known for precision and complex parts. It involves different techniques/operations and can accommodate diverse tooling; end milling is one of them. In fact, this is the second most popular machining technique after CNC turning.

Different tooling options, high material removal rate, precise finish, and some other factors make this process widely used across industries.

This article will elaborate on what is end milling, compatible cutters, applications, benefits, potential challenges, and machining considerations.

What is End Milling?

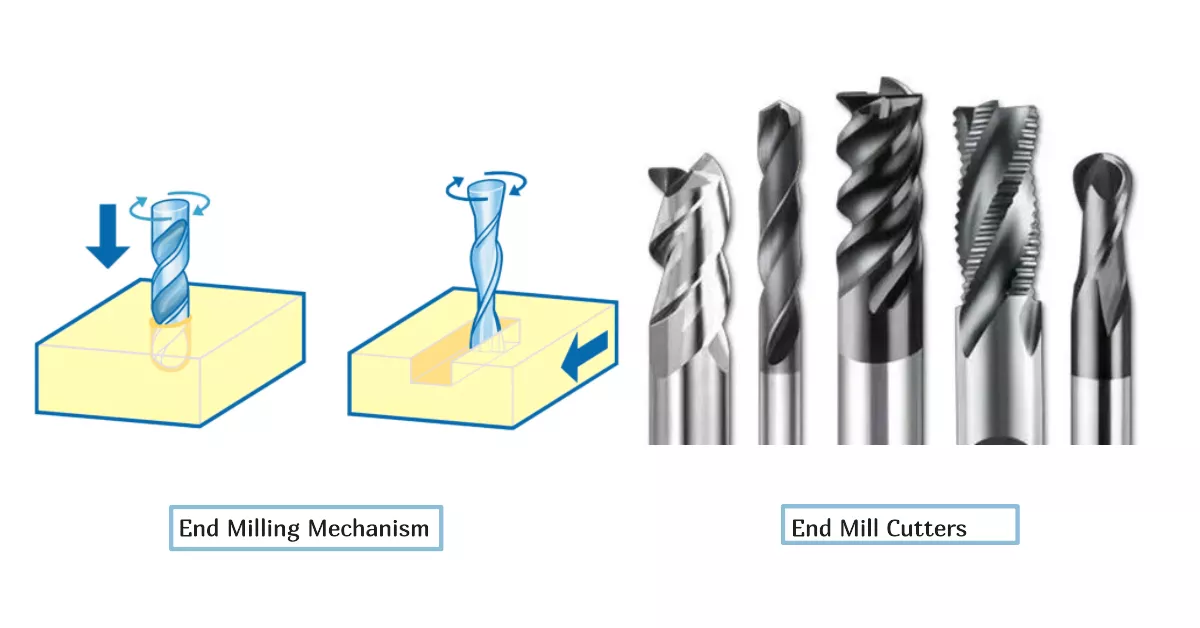

End milling mechanism and cutters

Like every other subtractive manufacturing process, end milling involves the use of rotating cutters with multiple edges to remove material until desired shapes and features are formed. It crafts complex and intricate features on metals, alloys, plastics, composites, and other engineering materials.

What makes end mills different from other tools is the helical design of cutting edges. The cylindrical-shaped shank contains tooths on both ends and sides, so they cut the workpieces from multiple directions.

Moreover, a variety of CNC end mills(square, ball nose, corner radius, etc.) allow you to work with multi-feature 3D shapes. With the right cutters, you can make complex contours, deep holes, pockets, slots, flat profiles, recesses, etc.

Anatomy and Terminologies

Before moving into further discussion, let’s look at its anatomy and key terminologies;

CNC end mill anatomy
  • Shank: The cylindrical part of the mill that is clamped into the machine’s spindle or tool holder.
  • Neck: The reduced diameter section between the shank and the cutting portion for deeper reach and clearance.
  • Flute: The helical grooves along the end mill’s body, which form cutting-edge during machining.
  • Cutting Diameter: Diameter at the widest point of the edges.
  • Cutter Sweep: The arc or path formed by the cutting edge during rotation.
  • Cutting Length: The axial length over which the cutting tooth’s edges engage in material removal during milling.
  • Helix Angle: The angle between the end mill’s helical flute and its centerline.

How End Mills Work?

Schematic diagram of end milling proces

A specialized end mill machine or regular CNC machine accommodates suitable end mill tools in its spindle (or other rotating components). Then, it controls the movement precisely across the workpiece in a pre-determined tool path.

The size of the cut, depth, speed, cycle time, and all other variables depend on CNC inputs and geometry & end mill sizes.

The detailed steps for How the end mill works?

Part Design and Programming

A detailed design of the part to be end-milled is created first, outlining all features, dimensions, and machining directions. While creating the design, it is essential to consider the capabilities of end mill cutters; what kind of shapes they can machine?

Machine Setup

The end milling cutter is secured in the spindle’s collet or tool holder, whereas the vice, clamps, or fixture hold the workpiece. Consequently, the position of the workpieces is parallel to the table or the spindle axis. The value of the input parameter depends on the work material and tool coating. The operator sets the reference point (work offset) after setting tool and work.

Milling Process

Once the program is run, the spindle rotates the end mill tool, and then the cutting edges interact with the material and form the chips via shearing. Edges at the end perform axial cutting and side edges perform radial cutting, whereas helical flute design facilitates easy chip removal.

The entering angle and cutting path depend on the CNC program. The same program codes dictate the spindle to move the cuter across the axes( X, Y, Z).

Types of End Mills and Their Applications

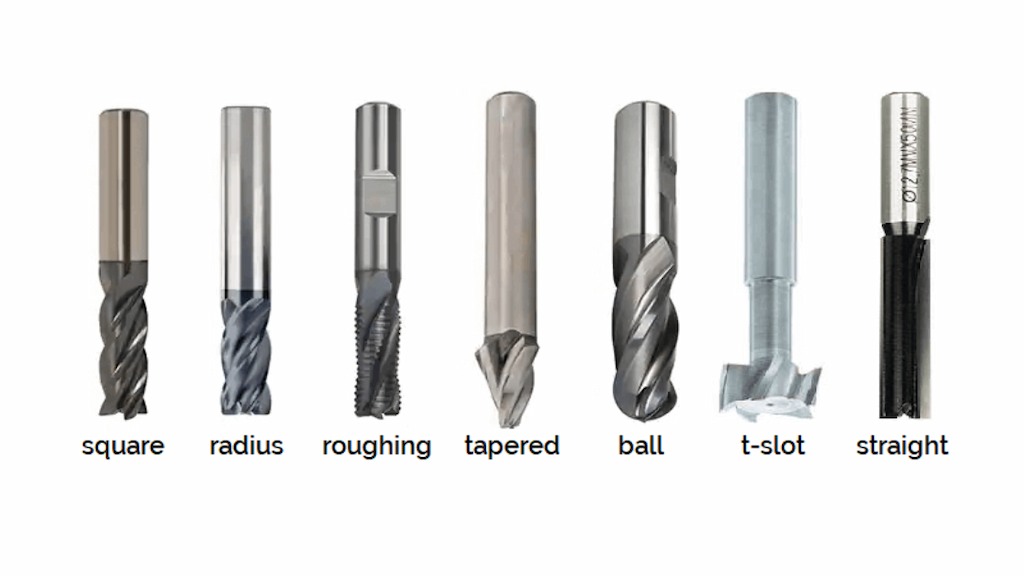

Types of end milling tools

Based on the geometry of machining edges and application preferences, there are different types of mill bits for the end milling process. The tip (end) shape and flute characteristics make them distinct from each other.

Let’s discuss some common CNC end mills shortly;

Roughing End Mills

These end mills remove a large amount of material while leaving a relatively rougher surface finish. The rugged or wavy edges and larger core diameter allow for heavy cuts with minimal vibration.

Application: Heavy-duty machining of steel, aluminum, iron, and other metals. E.g. Molds, shipbuilding, pre-finishing auto parts, etc.

Ball End Mills

A ball end mill is characterized by the hemispherical tip (nose) with a two or four-flute design. These mills can cut the works in a continuous path crafting complex 3D contours, curves, and concave profiles. You can use the ball nose end cutters for facing, pocketing, profiling, filleting, etc.

Applications: 3D contour machining for molds and die, sculpting automotive and aerospace parts, adding fillets on complex designs, etc.

Corner Rounding End Mills

A corner rounding type of end mill involves a radius at the tooth edges, which removes the material from work to achieve a rounded corner or specific radius. You can choose the radius size of these milling bits according to your requirements.

Applications: Deburring, filleting (or radii on sharp edges), aesthetic finishing, and transition curves between contours in complex parts.

Square End Mills

As the name suggested, these cutters involve a flat and square tip perpendicular to the tool’s rotational axis. This geometry crafts perfect 90-degree edges, corners, and flat bottoms on the workpiece. Thus, square mills are popular for general purposes in machining tasks.

Applications: Keyways, slots, external contours, vertical cutting, flat bottom holes, and flat surface smoothing.

Dovetail End Mills

Dovetile or fishtail milling cutters are defined by angled edges for cutting (matching the desired dovetail profile) that are available in standard angles like 45°, 60°, and 90°. You can choose them to create dovetail-shaped grooves or profiles.

Applications: Slots & sliding fixtures, dovetail joints, grooves, notches, undercut features, etc.

Finishing End Mills

It is a sharpened and fined end mill, designed to achieve tighter dimensional tolerances and smooth surface qualities. The bit design includes a higher number of flutes (2 to 6) and larger helix angles to achieve lower roughness levels, down to Ra 0.4 µm.

Applications: Different industrial items requiring smooth finish for performance, such as medical device parts, heat sinks, measurement instruments, vehicle engine parts, etc.

V-bit End Mills

These are the milling cutters with a V-shaped tip formed by tooth edges in 30, 60, or 90 degrees. The sharp conical tips in V-milling bits make them suitable for chamfering, engraving, and 3D carving.

Applications: V bits engrave Signs, logos, symbols, numbers, and letters on the work surface. Consequently, they are also applicable for chamfering and narrow-cuts.

Materials Used in End Milling

You can choose different plastics, metals, alloys, and composites to machine with end milling processes. Material selection is directly related to tooling and machining conditions; suitable tool coating and milling variables are different from one to another material type.

The table below outlines the common materials, and what is the right End Mill for them;

Material CharacteristicsEnd Mill FeaturesGrades/Types
Aluminum AlloysLightweight, easy to machineHigh helix angles, polished flutes6061, 7075, 2024
Steel & Stainless SteelsStrong, wear-resistantHigh Speed Steel (HSS ) or carbide, TiCN coatingAISI 304, AISI 316, AISI 1018, AISI 1045
Titanium AlloysStrong, corrosion-resistant, hard to machineVariable helix designs diamond-like carbon (DLC) coatingGrade 5 (Ti-6Al-4V), Grade 2
PlasticsLightweight, prone to meltingSharp edges, single or double flutesAcrylic, Polycarbonate, Nylon, Delrin, PE, PP
CompositesAbrasive, risk of delaminationCompression end millsCFRP, GFRP, Kevlar, Epoxy, Thermoplastics

Applications of End Milling in Various Industries

Custom end milled items

Various precision machining features are possible to create with a CNC end mill, flat surfaces, complex profiles, channels, holes, etc. So, its uses are diverse; from general consumer items to industries requiring tight accuracy.

The following are some major application sectors ;

Aerospace Industry

End milling operations are useful in the production of complex components such as engine mounting and bracket housings in aerospace. These components are typically made with aluminum and have very high requirements for accuracy and quality. Other examples are

Aircraft wings, turbine cartridges, and surface roughing of many other components.

Automotive Components

CNC end mill cutters create both rough and smooth finish automotive components; the level of precision, fine details, and surface quality makes them more favorable in vehicle manufacturing. You can make engine parts, valve seats, transmission housings, oil channels wheel hubs, etc.

Moreover, this milling approach also addresses the growing demands of EVs, like motor elements, batter housing features, and drivetrain components.

Precision Parts for Electronics

Miniaturization and accuracy are key demands for electronics parts; carbide end tools are used to make Printed Circuit Boards (PCBs). For instance, smooth holes, and keyways facilitate smooth connection.  Other uses include enclosures for electronic devices, mounting components, thermal management elements, etc.

For Medical Devices

Accurate dimensions and finish are critical in medical device manufacturing, directly impacting treatment effectiveness and safety. End milling can process medical-grade titanium, stainless steel alloy, and some plastics to create diagnostic devices, implants, and surgical tools. Additionally, it also allows for the customization of implants according to patient needs.

Prototyping and Custom Part Manufacturing

Engineers and manufacturers use multi-axis CNC end milling machines to test and refine designs. They can produce intricate designs in metals, plastics, and composites. For example, molding tools, jigs, fixtures, custom parts, etc.

Benefits of End Milling

  • An end mill cutter performs multiple operations like cutting, plunging, fattening, profiling, contouring, etc.
  • It provides high machining precision and accuracy, down to ±0.05 mm in standard and ±0.002 mm in precision milling.
  •  It involves cutting in or across all four axes of a spindle, which enables to creation variety of complex shapes and surfaces.
  • The operation’s accuracy minimizes the number of additional finishing processes. A typical range of the as-machined roughness level is 6.3 to 0.8 µm.
  • The multi-flute design and coating allow for deeper cuts.

Common Challenges in End Milling and How to Overcome Them?

Like every other CNC process, it has its own difficulties and limitations. Understanding these challenges and strategies to mitigate them helps to avoid machining issues and achieve the desired result.

Chattering, excessive tool wear, poor finish, and heat buildup are common challenges. Let’s discuss these challenges more briefly and how you can overcome them;

Dealing with Chatter and Vibration

Machining chatter and vibration are mainly associated with machine stability and tool rigidity. Long overhanging tools, loose clamping of work, and wrong cutting angles cause this periodically self-excited vibration.

Prevention: Using vibration dampers or absorbers is the in-process method to mitigate the chatter. During setup, ensure stability, optimize cutting variables, and clamp the workpiece securely.

Potential for Tool Breakage

Although it is a rare phenomenon, tool breakage can occur if there is excessive cutting force, chatter, hard workpiece, incompatible tool geometry, chip packing, or thermal stress. Over time a CNC end mill cutter becomes dull and its angle’s wings get ripped off. Moreover, tool breakage not only results in part failure but also poses a critical safety concern.

Prevention

  • Optimize the tool path
  • Use the correct feed and speed
  • Monitor the process continuously,
  • Choose an end milling cutter with a suitable coating (E.g. TiAlN, DLC)for hard work materials.

Requires Specialized Setup

You might need custom fixtures and calibration tools for perfect alignments during the setup. This is more complex than standard milling and requires a high level of expertise. Additionally, it can be time-consuming for small batches and prototypes.

Prevention

  • Use modular and adjustable fixtures to reduce setup complexity
  • Perform CAM simulation to analyze setup and tool path before actual machining.

Heat Generation

During the operation, cutting edges move against the works or they contact each other periodically, leading to friction. When any imbalance happens in processing, friction increases, which deforms the edges and converts mechanical energy into heat.

Prevention:

  • Use suitable coolant type and flow
  • Do not push extra feed and speeds, balance these with productivity
  • Keep the rake angle positive
  • Monitor the tool rubbing and take the correct action right away
  • Often, climb milling effectively transfers the heat into the chip.

More Expansive

Manufacturing parts with end milling are more expensive than conventional or standard milling operations. The reasons are simple; expensive tooling, demand for experienced operators, complex machine setup, etc. To keep the cost of end milling in balance, you can use high quality tools, leverage automation, and choose efficient tool paths.

Key Considerations of Using End Mills

Select the Right Tool Material

High Speed Steel (HSS) and Carbide are the two main end-mill materials. HSS tools are affordable and work best with plastics and soft metals like aluminum. On the other hand, carbide is harder than HSS and suitable for high-speed machining and hard materials like titanium and tool steel.  For more robustness, you can choose these tools with hard coating, such as TiN, TiAlN, or DLC.

Use the Correct Flute Count

Although tools with different flute numbers are in practice, typically 2 and 4-flute end cutters are popular in machining shops. The main difference between the 2 vs 4 flute end mills is the cutting speed and finish quality. As the number of flutes increases, it can cut harder materials and the finish level also improves. On the other hand, low flute numbers provide faster cutting speed. So, choose the right count accordingly.

Control Depth of Cut

Highly deep cuts cause heat generation and shallow cuts reduce the speed, therefore controlling the cut depth is essential. There are two general rules for maximum depth; either half of the mill diameter or less than the length of the flute. For smooth finishes, you might need to control the depth up to 10-20 % of the tool diameter.

Optimize Feed Rate and Speed

Set the right feed and speed by considering factors, material properties, tool rigidity, tool geometry, and capabilities of CNC machines. The best suggestion is to follow the manufacturer’s guidelines(charts) and incremental adjustments for fine-tuning. Moreover, you can also use online milling speeds and feeds calculator to find out the optimal speed and feed.

Use Coolant or Lubrication

As previously said, heat is one of the common challenges and you must use suitable coolant or lubrication to avoid this. Lubrication reduces friction and coolant stabilizes the temperature of the machining area. There are different options for coolants, oil-based, water-based, synthetic, etc. Moreover, you can apply these either by flood coolant or MQL method.

Maintain Proper Tool Holder Balance

A correct tool holder balance is essential to reduce the vibration and achieve optimal milling performance with minimal tool wear. There are two ways of balancing; static and dynamic.

Static means measuring imbalance while the tool holder is stationary, whereas dynamic (or high-speed) approach involves rotating the tool holder at operational speeds to detect and correct imbalances.

Regularly Inspect the Tool

You can integrate real-time monitoring systems to inspect the tool’s wear, scratches, tear, and dullness. Schedule a periodic inspection and use checklist to ensure the too condition. Furthermore, continuously track the inspection results and performance over time to decide when to change your tool.

Difference Between End Milling and Face Milling

End milling and face milling processes

Face milling is a more specialized operation and focuses on flat workpieces, removing large amounts of material to achieve surface flatness. Often, face mills are used in preparatory steps before performing complex machining tasks. Unlike an end mill cutter, a face cutter tool involves a large and flat face with edges around its periphery.

The face mill vs end mill table below outlines their key differences;

AspectEnd MillingFace Milling
Cutting ToolSmall cutters, edges on the sides and end.Large and flat cutters, edges on the face.
Tool MovementVertical or angled movementHorizontal or flat movement
Chip FormationComplex and discontinuous chipsLarge and continuous chips
SpeedLower cutting speedsHigher cutting speeds
Surface FinishGood for precision but rougher than face millingSmoother finish on large workpieces, Ra ( 0.8 – 1.6 µm)
ApplicationsDetail work, pocketing, profilingSurface finishing, flattening, large cuts
Best forSmall parts, deep slots, narrow spacesFlatening and surface smoothing
Tool LifeLonger under proper use and maintenanceFaster wear due to higher cutting forces

How RapidDirect Supports Your Milling Operation Needs?

Considering the end requirements and arranging the right end mill type is essential for any end milling project, which we completely understand at RapidDirect. Our engineers closely work with you until your parts are delivered, including design optimization assistance, material selection, and finishing recommendations.

Furthermore, our in-house factory has milling machines with the latest CNC integration that tackles custom and complex designs with high precision.

  • Instant quotation & design feedback
  • 20+ end milling operations
  • Custom tooling for complex parts
  • Milling Prototypes and full-scale production
  • 100+ material options
  • Streamlined manufacturing and quick leads

Whether you are a small startup or an established brand, our CNC milling services can provide high-quality parts across industries, strictly in compliance with your design.

Conclusion

Overall, the end milling process enables to creation of intricate features and profiles on various types of workpieces. The use of the right type of cutter, milling variable, and setup is essential to make parts with high geometrical complexity.  Furthermore, understanding its possible challenges before the machine runs helps to prevent defects and risk of failure.

This process is helping innovations of complex mechanical structures for industries and continuously pushing the manufacturing precision and efficiency.

FAQ

What Are the Different Types of End Mills?

Based on geometry and specific uses, there are many types; flat, ball nose, roughing, finishing, corner radius, and tapered end mill.

How Do I Choose the Right End Mill for My Project?

Choosing the right CNC end cutter requires considerations of the material, cutting type (roughing or finishing), geometry (flutes, shape), machine capability, and surface finish.

How Does End Milling Differ from Drilling?

Drilling cuts axially for cylindrical hole creation, whereas end bits work in both axial and radial directions for slots, grooves, channels, and intricate contours.

Why Is It Called an End Mill?

The name comes from its functionality—it involves cutting edges at the end and sides, which allows for multi-directional material removal.

How Does a Milling Cutter Differ from a Ball-End Mill?

A milling cutter is a broad term including end, face, and slab mills. On the other hand, a ball-end mill is a specific type that involves a hemispherical tip for machining 3D contouring and complex surfaces.

How to Determine the Feed Rate of a Milling Cutter?

You can determine the material feeding rate using the given formula; Feed= Spindle Speed (N) x Chip Load per Tooth (Z) x Flute Count.

Subscribe Our Newsletter

    Written By
    Noah Harrison is the Director of Content Marketing at RapidDirect with over a decade of experience in content writing. He specializes in creating custom content for research projects, thesis, and reports, and is skilled in 3D modeling, rendering, and designing innovative products for engineering assignments and advertising.

    Recent Blog Posts

    side milling.jpg
    CNC Machining

    What’s Side Milling and Why Should You Use It

    There are lots of machining processes available, with each offering unique benefits and side milling surely ranks among the best....
    Read More
    form milling.jpg
    CNC Machining

    What’s Form Milling and How Does it Work?

    As a professional manufacturer, it could be a frustrating exercise to understand all the metalworking processes and integrate them into...
    Read More
    Types of injection molding technology
    Injection Molding

    Different Types of Injection Molding Technology

    The reason behind the diverse use of injection molding technology lies in its variations. Several types of injection molding techniques...
    Read More
    Ready for Your Project?
