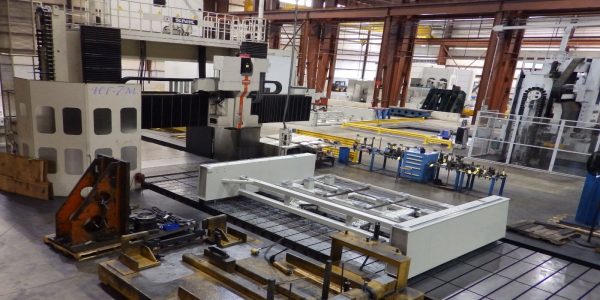

Large CNC Machining: Its Processes, Applications & Benefits

Many manufacturers depend on large CNC machining for producing different components and devices. Large CNC machines ensure the production of complex components integrated across industries such as energy and automotive. CNC machining relies on a computer-controlled system to achieve accuracy when handling heavy-duty components. Its advanced features help manufacturers to achieve precise and high-quality results for complex parts with tight tolerances.

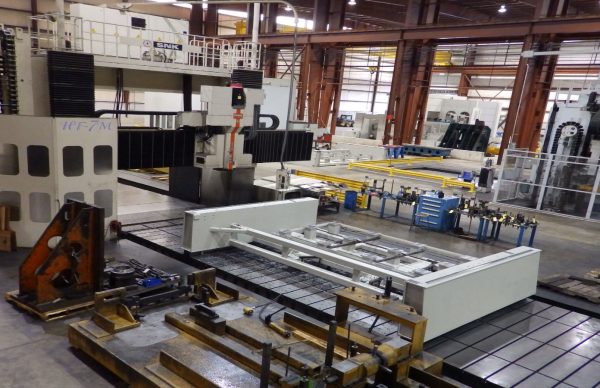

What Does Large CNC Machining Mean?

Large CNC machining is a part of the manufacturing process in which you integrate Computer Numerical Control (CNC) machines for the production of heavy-duty and extremely complex parts or components. This machining process is suitable for making large parts of machines, which are usually heavier in weight and measure several meters

CNC machines are known for their powerful spindles, work envelopes, and reinforced structures. Therefore, they can work well with high-profile materials like titanium, steel, and aluminum. A large part machining aids the production of components and parts like turbines and engine blocks.

One of the most important benefits of CNC machining is its high level of precision. CNC technology helps you to precisely create large parts with tight tolerances. Also, the integration of computer controlled systems helps to minimize human errors and achieve accuracy.

Although there is no fixed size for large parts machining, typically machining around 40″ x 20″ x 20″ or above sizes of workpieces is called large size machining. For cylindrical workpieces, above 12” in diameter (⌀).

What are the Steps Involved in Large CNC Machining?

This process involves many steps, with each contributing to the success of the end results. Every step in this process relies on a computer controlled system, therefore reducing human intervention.

Design creation

This step requires you to create a digital design of the large parts with the aid of Computer-Aided Design (CAD) software. As the first step in the large size CNC machining process, its success determines a lot of things. You can create 2D or 3D models using CAD software. This model serves as a blueprint where there are necessary details concerning the dimensions, construction lines, tolerances, and geometries of the desired machine parts.

The design creation phase is very important due to the complexity and size of the components or parts involved. It is important that you include any details about thermal or structural stress in your CAD model file. The CAD software helps to create a virtual design of the parts, thereby helping you to identify possible errors or defects before the main machining process starts.

The CAD file explains further details like movement simulations, thermal behavior, and stress analysis to help ensure optimal performance.

Conversion of CAD Files into Numerical Codes

Once you have created the CAD model, you can translate the design into the language the CNC machine understands. You use the Computer-Aided Manufacturing (CAM) software to convert the model into Step-by-Step commands known as NC code or G-code. These commands dictate the movement of the machine and other instructions like cutting depths, tool paths, and spindle speeds.

During the large CNC machining process, the instructions are often more detailed due to longer machining times and thermal expansion. In such cases, you have to optimize the code to be certain the paths of the machine are efficient. Also, you must avoid compromising precision during this process.

A lot of CAM systems feature simulation tools to help you visualize the entire machining process before the real world begins. With this, you will be able to detect tool interference and possible setup issues on time. This will eventually help you save costs by preventing material waste

Preparing and positioning your tooling and workpiece

You need to prepare all your workpieces and the tooling you will be using for the precision machining process. In this step, you will need to choose the right tooling based on the weight and size of the components. Also, you must secure your workpiece to the machine bed to ensure stability throughout the machining process.

It is important that you arrange all the necessary tools for the process. The type of tooling you are using depends on the requirements of the operation. Check all your tools to ensure they are in good working condition. This includes checking their calibration and sharpness. You should also check their compatibility with the material you are working on. Multiple tool changes occur more often while producing large CNC machining parts.

You will need to reposition your part if it is more than the axis range of your machine. Ensure you reposition parts precisely to prevent any misalignment. Coordinate measuring machines and other advanced metrology equipment can help you verify the accuracy of your positioning before machining begins.

Generation of Automated Part

After you have completed the necessary setup, the CNC machine starts generating automated parts. In this step, your machine uses pre-coded instructions to cut and shape your workpiece. This step is automatic and, as such, requires less human intervention. Typically, large machines use multiple axes to create complex geometries and intricate contours with extreme precision.

Large parts usually require longer machining cycles, which can take hours or days. However, this depends on the complexity and size of the component. Also, these machines have sensors to help monitor temperature, tool wear, dimensional accuracy, and vibration in real time. This automation helps you to ensure error-free and consistent results.

Also, you need to check the coolant systems of your machine. The coolant systems prevent heat from building up. Once you have completed the machining process, you need to inspect the parts to ensure it meets the specifications.

Important Considerations for Large Parts CNC Machining

There are certain challenges associated with large parts CNC machining. These could result from the complexity and size of the workpiece being machined and the level of precision required. Therefore, it is important to pay attention to the considerations below to achieve efficient and high-quality results.

Planning

The success of large CNC machining heavily depends on proper preparation and planning. Large parts machining usually requires more time for tool preparation, handling, and execution. While planning, you should include every important detail from the selection of material to logistics and setup.

Also, you need to plan for any possible machining difficulties that may arise. During the machining process, your machine may experience tool deflection, vibration, and expansion. Therefore, you should have solutions in place should any of those problems arise. Also, you need to account for any possible delays during this process. Proper planning reduces errors and improves productivity.

Multiple Setups and Runs

Large components or parts always require several runs and setups due to their size and complexity. Also, these parts need constant repositioning during machining. If you fail to execute your setup properly, there is a potential risk of dimensional inconsistency or misalignment.

You may integrate laser alignment systems or dowel pins to maintain precision during machining runs. Another way to ensure uniformity and consistency during operations is through proper documentation. Repeatable setups will help you maintain tight tolerances during machining. This is important for parts that have intricate internal features.

Design

Design considerations are important factors to pay attention to during CNC machining. You need to account for machine accessibility and stress points of the material during machining. Generally, the design should reduce the complex features or the need for repositioning and tool changes.

Also, it may be difficult to achieve tight tolerances and high precision due to design issues. Therefore, machinists and engineers should work together to detect potential problems during the early stage and prevent such issues. Also, they can adjust designs to ensure successful machining operations.

Size of the Part

The overall size of the part you want to machine determines the fixture, machine type, and tooling you need. For parts that are extremely large, you need to integrate specialized machines like horizontal boring machines and advanced gantry mills. Such machines can handle parts that are heavy and have large dimensions.

Also, large parts may likely experience deflection and vibration during machining. This makes it important you integrate intermediate machining steps or additional support to prevent such from happening. The size of the part impacts the material performance.

Machining Process

Machining large parts takes a longer time due to the complexity of the machining process. You need to adjust certain parameters like feed rates, cutting depth, and cutting speed to achieve good results.

Large-sized CNC machinery involves a heavyweight.  They operate at a very slow machine speed. During machining, operators must plan roughing passes to help get rid of the bulk of material. After these passes, the semi-finishing and finishing passes are crucial to achieve accuracy. You need to carry out intermediate inspections between passes to maintain dimensional accuracy throughout the machining process.

Another important consideration is tooling. You should ensure your tools are strong and can maintain a cutting performance during long cycles. Machinists always prefer indexable inserts and carbide tools due to their versatility and wear resistance.

For large parts, you may need to use long-reach tools, which can cause deflection without proper support. Therefore, you need to integrate the right tool length and machining strategy to prevent potential issues. Automatic tool changers feature multiple identical tools, which enable switching of tools during the machining process.

Part Geometries

Part geometries play a crucial role in large CNC machining projects. Structural frames and other rectangular parts need flat surface machining, demanding pocketing and face milling. Rectangular parts always require large cutting tools, although they are easier to fix.

For round parts, you need specialized turning operations or rotary tables. Generally, complex geometries need multi-axis machining to maintain uniformity. For instance, when machining complex geometries like internal bored, grooves, and external threads, you need to integrate multi-axis machining. Part geometries determine how well you secure your material and rotate it during machining.

Accuracy

Maintaining accuracy during large CNC machining is very important. However, this can be quite difficult due to potential issues like tool deflection, thermal expansion, and vibration can affect precision. You need to maintain frequent machine calibrations and a temperature-controlled environment to achieve precision. Large and complex parts usually require a lot of work to achieve precision.

Also, CNC machines feature advanced metrology tools such as 3D scanners and laser trackers to help verify critical dimensions have certain tolerances. In-process inspection enables real-time adjustments to prevent any inconsistencies. This ensures the final result meets the standards of the desired part.

Common Materials Compatible with Large CNC Machining

You can integrate large mills, lathes, or turn-mill CNC machining centers on different materials like aluminum, titanium, plastics, wood, and even composites. Each material has its own mechanical properties and durability. Machinists always consider the material of the parts they want to machine before choosing the right tooling. Here are the most common materials you can work with in large CNC machining processes.

Metals

Metals such as aluminum, steel, and titanium are commonly machined. Aluminum is corrosion resistant and lightweight, making it ideal for machining. Also, it is a common material used across industries like automotive, aerospace, and manufacturing.

Stainless steel and carbon steel are corrosion resistant, strong, and durable. Also, their lightweight nature makes them easy to machine.

Titanium is a strong, durable material known for its ability to resist corrosion. However, machinists find it difficult to machine this material due to its hardness. Inconel is another material that is compatible with CNC machining. This nickel-based super alloy can withstand extreme pressure and heat. It is commonly used for engine components and turbine blades.

Plastics and Composites

Although Plastics and composites aren’t as popular as metals, they are compatible with large parts CNC machining. Plastics like PEEK and polycarbonate are corrosion resistant and lightweight. These materials are commonly used in non-conductive parts, structural panels, and insulating components.

Composites have an excellent strength-to-weight ratio, but require a special machining strategy and tools before you can machine them. Carbon fiber reinforced polymers (CFRP) are a good example of composites.

Special Materials Used in Aerospace, Defense, and Energy

Special materials like nickel-titanium alloys (Nitinol), and ceramic matrix composites are commonly used in extreme and high-demanding industries like aerospace and energy. Such materials are extremely difficult to machine. You need specialized cooling systems and equipment to machine these materials. However, these materials excel in corrosive and high-stress environments.

What are the Applications of Large CNC Machining?

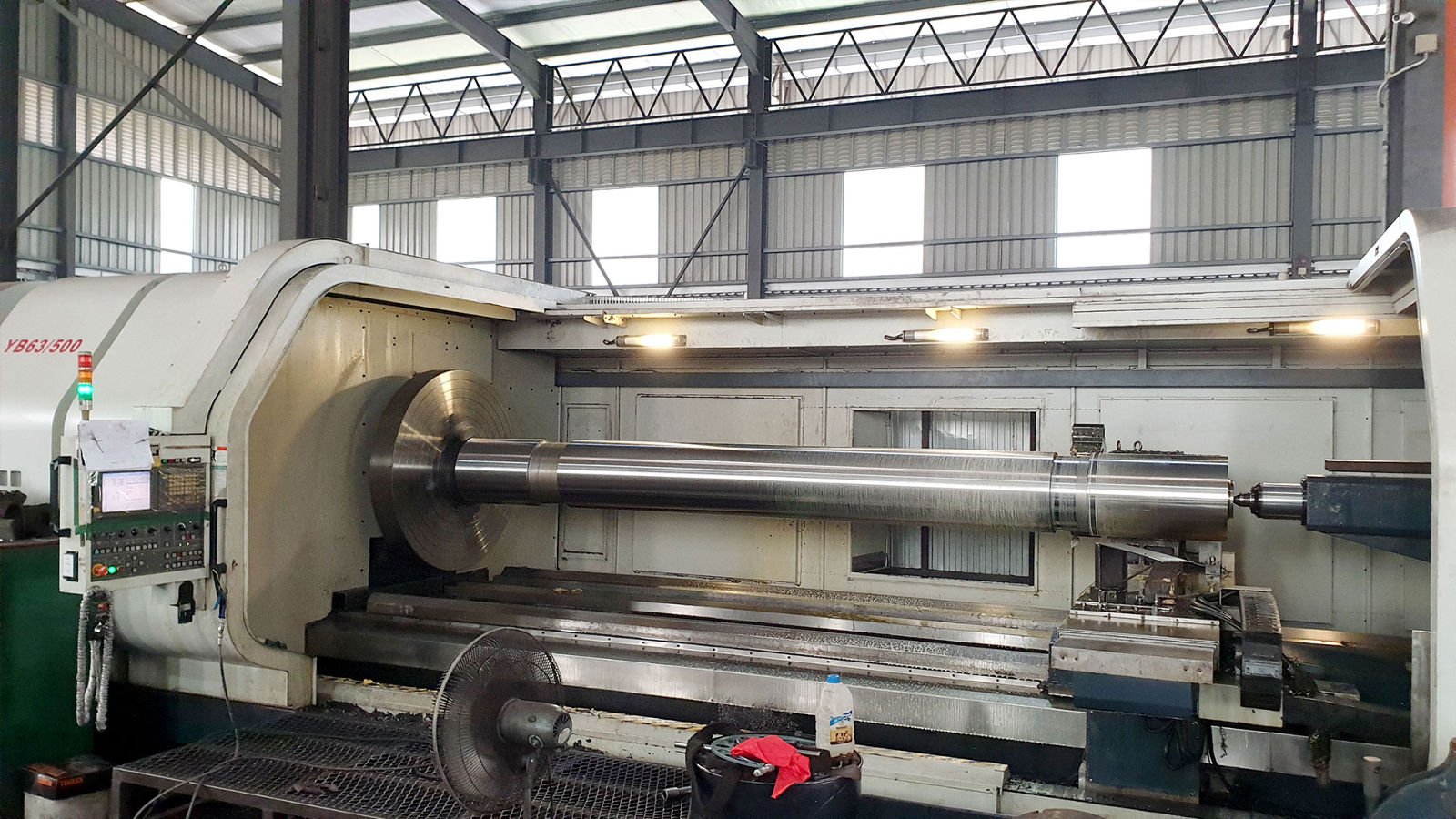

To manufacture large components that deliver high accuracy across different heavy industries, large part machining is very important. It has the capability to provide accurate, strong, and repeatable answers, be it in advanced manufacturing or infrastructure, thereby making it a strong foundation of modern engineering. Below are some of the major applications;

Generation of Power and Energy

In generating power and energy, it is important to work with large CNC machining to manufacture parts having the ability to endure harsh temperatures, stress, as well as operational loads. This features components like rotor shafts, frames of generators, turbine housings, as well as casings for thermal, nuclear, wind, and hydro power plants.

These parts usually need accurate geometry as well as very tight tolerances to achieve effective conversion of energy and a long life of service. Also, the CNC machines used here have to deal with materials like Inconel, stainless steel, as well as alloys that are heat resistant. This machining accuracy has a direct effect on the reliability and performance, which are very important in the infrastructure of power generation.

Automotive

While the majority of automotive parts usually come in small sizes and are produced in bulk, large size machining is very necessary for the creation of molds, manufacturing tools, molds, as well as heavy vehicle components. Large machines help in crafting dies for car body panels, engine blocks for trucks and industrial vehicles, and customized frames for prototype development or motorsport.

In addition, CNC machining ensures quick prototyping of huge auto components, offering accurate iterations during the vehicle design phase. As electric vehicles become more prevalent, large-scale machining is also increasingly used for manufacturing battery enclosures and driving unit components.

Aerospace

Weight efficiency, accuracy, and strength are important in aerospace, and large CNC machining helps in creating structural components like fuselage frames, wing spars, landing gear parts, and engine mounts. The majority of these parts are usually manufactured from lightweight, high-strength materials such as titanium, aluminum, and carbon fiber composites, which demand advanced and large machining capabilities.

CNC machines in aerospace should adhere to tight tolerances, which are usually within thousandths of an inch, while producing components that are large, safe, and complex. The industry also benefits from multi-axis CNC machines that can handle intricate geometries in one setup, improving productivity and precision.

Mining

It is also important in mining for creating the rugged parts that drive extraction and processing machinery. Components like gear housings, crusher frames, excavator arms, and dragline parts must withstand massive mechanical stress and abrasive conditions.

These parts are often machined from hardened steel or castings and require large working envelopes due to their size. Accuracy, while not always on the same scale as aerospace, is still vital to ensure compatibility, safety, and efficient performance in rough operational environments.

Industrial Equipment

The manufacturing industry relies heavily on CNC large machines to create custom machinery and automation systems. Examples include machine beds, press frames, robotic arms, and conveyor component structures.

These machines often serve as the backbone of high-volume production lines, and their components must be both structurally sound and dimensionally accurate to maintain operational efficiency. CNC machining ensures that these parts are consistently manufactured, even in low volumes, with minimal error.

Shipbuilding

Shipbuilding deals with huge structures that require components that are machined accurately for both underwater and surface vessels. Large CNC machines help in manufacturing elements such as rudders, propeller shafts, structural beams, engine beds, as well as other critical hull components.

These components are usually manufactured from metals that are corrosion-resistant, such as bronze, stainless steel, and high-strength alloys. Because ship components come with huge sizes, the machines should be able to handle heavy workpieces, long spans, and complex geometries. Therefore, it is important to maintain accuracy over large surfaces to achieve proper seaworthiness and assembly.

Energy (Oil and Gas)

In the oil and gas industry, large CNC machining provides support to both downstream and upstream operations. This is useful for manufacturing pump housing, drill heads, subsea equipment, valve bodies, and flanges. The components usually experience corrosive and harsh environments and high pressure.

Accuracy is necessary for performance, safety, as well as regulatory compliance. Components that are machined must adhere to API standards and be machined from exotic alloys to achieve long-term durability.

Large CNC machining operations deliver the scale, strength, and precision needed across these demanding industries, making it an irreplaceable asset in modern manufacturing and infrastructure development.

Advantages of Large CNC Machining

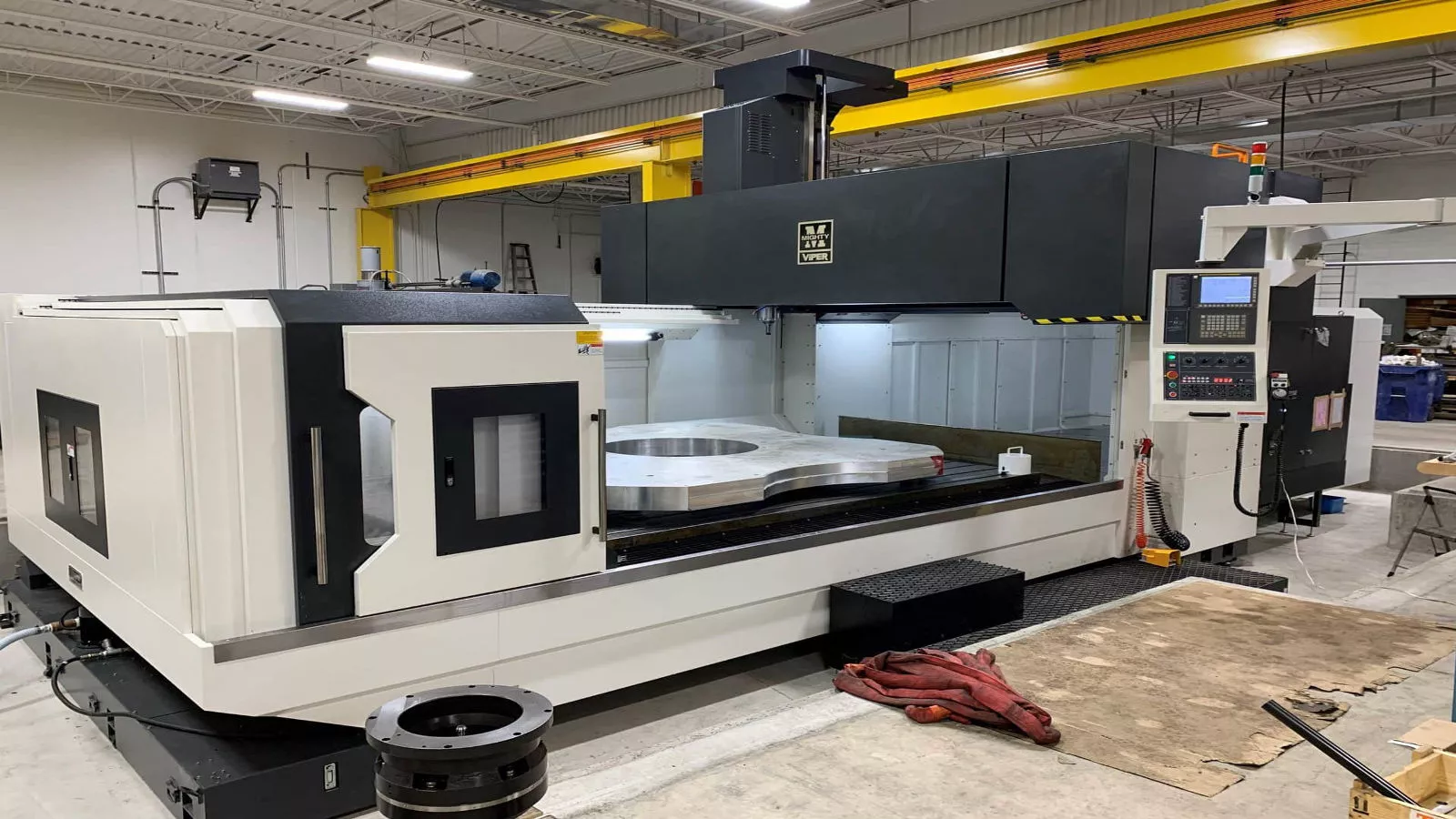

A lot of industries benefit from the machining of large items. This type of machining is crucial for industries that have large and complex parts or components. This approach is popularly used in the manufacturing of automotive parts, airplane components and engines, heavy equipment used in manufacturing, and more. Here are some key benefits;

High Precision and Efficiency

It helps you to maintain precision when working with complex and large parts. While it is easier to machine small parts and maintain tight tolerances, it is more challenging to do the same with large parts.

Large CNC equipment machines have advanced software control and reinforced structures that enable them to machine extremely large parts precisely. These features help you achieve precision and structural integrity when working with large parts.

Reduced Assembly Time

With large CNC machining, you can easily manufacture intricate parts as a single piece instead of producing small sections that require assembling. Producing complex and large parts in one piece reduces the need for assembling various parts.

Also, you have fewer chances of experiencing alignment errors when there are fewer joints. When you machine large parts as a single piece, it helps to improve the structural integrity of the final part.

Consistency

It offers consistent results regardless of the size of the parts you are machining. Once you have programmed and set up the machine, you can create identical parts with little or no differences. Regardless of the number of times you machine the said parts, you get similar results. This makes it ideal in applications where you need to fit many large components seamlessly. Also, you can easily maintain quality control with CNC machining.

Cost-Efficiency

The large part machining process is a cost-effective option for the mass production of complex parts. The initial machine and setup costs are usually high, but this machining process offers long-term benefits like reduced labor costs and material waste. If you are machining many large parts, the cost per part reduces. This helps you save cost without compromising quality.

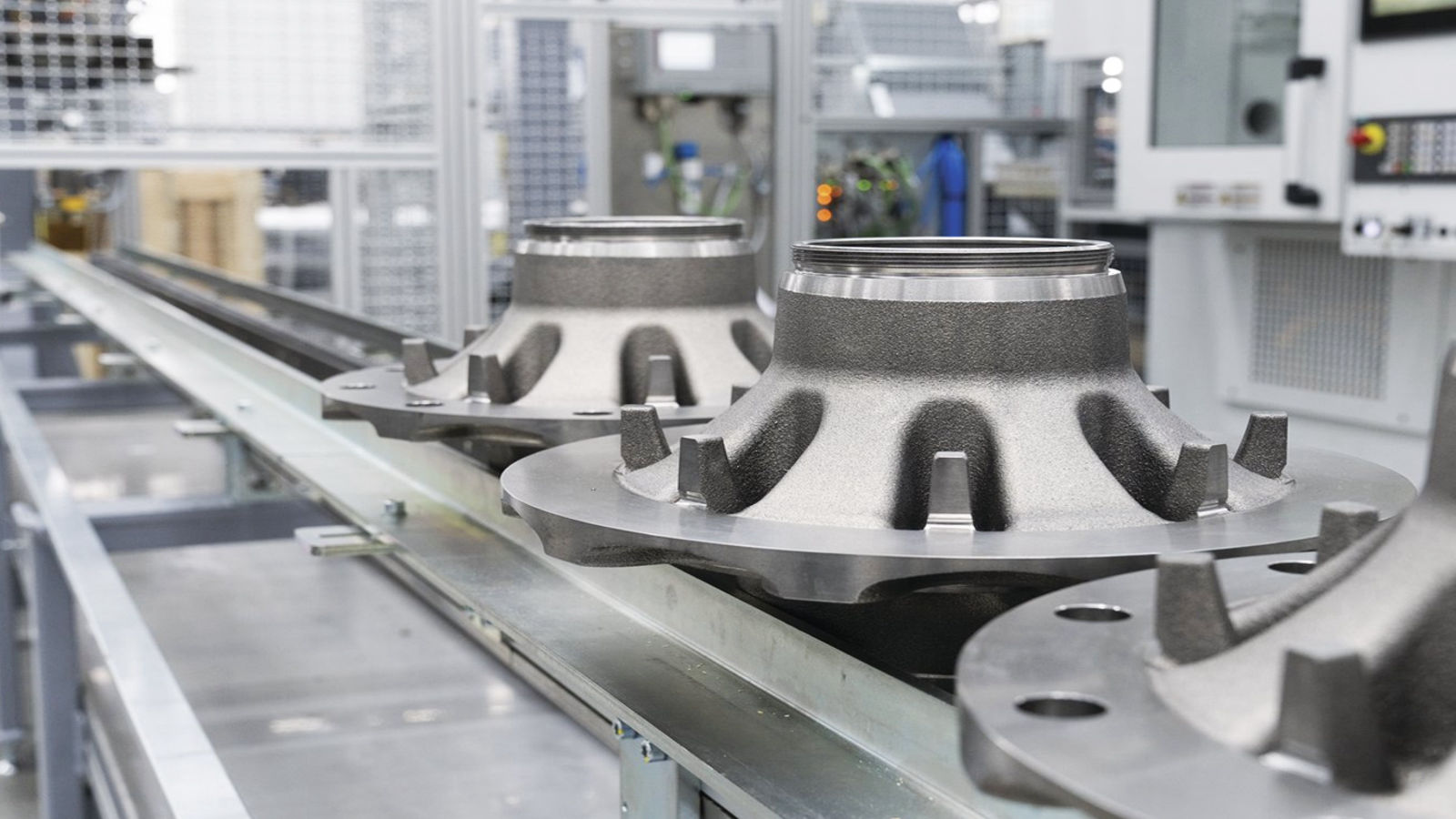

Common Challenges Associated with Large CNC Machining

There are certain challenges commonly associated with large CNC machining. These challenges could affect production timelines and the overall quality you get. Therefore, it is crucial to assess these challenges to achieve efficiency and accuracy.

High Cost of the Machine

The cost of investing in a large parts machining project is high. Large CNC machines are very expensive, including the tooling, setup, and footprint. The cost of climate control systems and reinforced floors required on the floor of the machine shop is high.

Also, they are so big that they require a large facility to operate. The cost of installing them is also high. Considering all these costs, manufacturers need to spend a lot to invest on large CNC machines.

Complex setup and tooling

Large CNC systems are very complex to set up unlike standard machines. Also, you have to be careful when handling large workpieces. You may need to use precision alignment tools and crane systems to achieve good results. Every setup takes time, especially when you need to reposition parts for multi-sided machining. Large CNC machines require specialized tooling that usually requires heavy-duty inserts. Also, the prolonged cutting times in the machining process require you to monitor tool wear.

Vibration Control

Vibration and stress are common during large CNC machining. It can be difficult to address these issues, especially when you are matching extremely large workpieces. The chance of vibration is usually higher when working on a large workpiece. If not controlled, this can cause dimensional inaccuracies.

Other forms of stress, like thermal expansion, can result in deflection or warping. Therefore, you need to support your workpiece and plan your cutting strategies prior to machining. Heat treating is another way to relieve stress during machining.

Large Parts Transportation

You may face some obstacles when transporting the final large parts. Large parts, particularly, have several feet and weigh tons, hence they need specialized transportation and logistics strategies. You also need to maintain safety protocols when moving large parts within the facility.

These processes usually take a lot of time and require serious planning to avoid any accidents. For parts that require remote installations or go through international routes, you will need to get transportation permits and adhere to strict protocols to ensure safety.

What are the Capabilities of RapidDirect’s Large CNC Machining?

RapidDirect is a reliable company with great expertise in large CNC machining. This company provides a wide range of large CNC machining services that suit different demands across different industries. From complex prototypes to large CNC machined components and their sophisticated facilities, RapidDirect prioritizes the interest of their customers. Here are some of the services they offer:

CNC Turning

Their CNC turning services help you manufacture cylindrical components with precision. Cylindrical components like bushings and shafts can be very challenging to produce due to their tight tolerances. However RapidDirect’s large turning centers ensure fight tolerances and good surface finish regardless of the lengths and diameters of your components.

Also, their CNC turning is ideal for prototype and large scale production of lathe parts. With the integration of advanced CNC turning machines, this company produces parts with accuracy and consistency.

CNC Vertical Milling

The CNC vertical milling service helps manufacturers machine complex geometries and flat surfaces with precision. RapidDirect’s vertical mills can work on large workpieces and different materials ranging from steel to titanium and aluminum. You can integrate their CNC vertical milling services for parts that need drilling, pocketing, or contouring.

Horizontal & CNC Boring

Horizontal and CNC boring are suitable for parts that need complex bores. RapidDirect’s horizontal & CNC boring machine offers exceptional stability when used in heavy workpieces. Therefore, you can integrate this boring machine for manufacturing structural parts, engine blocks, and more. These boring machines have advanced features like high-torque spindles to ensure consistency and efficiency across large dimensions.

Others

At RapidDirect, you can enjoy other large CNC machining services like multi-axis machining, tapping, surface grinding, and thread milling. These additional services help them meet the demands of customers while boosting their reputation in the large parts machining industry.

RapidDirect extends its services across industries like manufacturing, energy, automotive, medical, and aerospace. With the help of their quality control systems and CAM programming, this company keeps delivering quality.

Conclusion

Creating large-sized items is crucial in modern manufacturing for both time and cost efficiency. This machining process is widely used across industries where precision, consistency, and efficiency are critical. Large CNC machines have advanced features that help them produce large, complex components with accuracy. Although there are certain limitations, it offers many more benefits.

While the initial cost of investment is high, large CNC machining offers long-term benefits like cost-efficiency and a high level of precision. With this machining process, you can machine large components with tight tolerances. RapidDirect provides advanced services that contribute to the growth and development of large -scale manufacturing.
