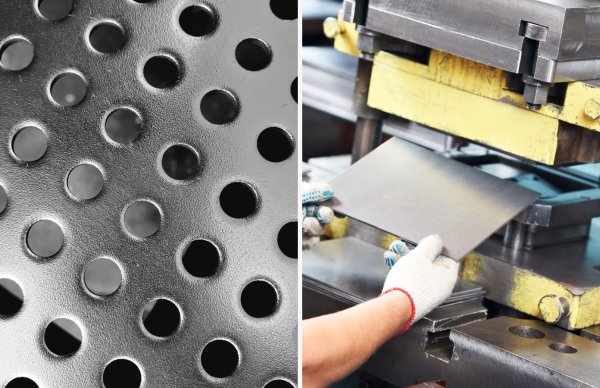

Metal punching vs stamping might appear as interchangeable terms for shaping sheet metal, but the truth is each process addresses slightly different use cases. Stamping covers multiple metal-shaping processes while punching is focused solely on hole making.
If an engineer inadvertently recommends the wrong process to a machinist, the result can be wasted materials, longer lead times, or budget overruns, particularly in high-volume environments. This makes the choice a critical decision.
In this article, we will clarify the differences between punching and stamping, and illustrate when to use the particular process. You’ll learn about the working principles of each process, the materials and equipment required, and the associated costs.
What’s Stamping?
Sheet metal stamping is a cold-forming process that turns flat metal sheets into specific shapes through the application of high-pressure presses. In this sheet metal fabrication process, a flat sheet is placed into a stamping press where a tool and die surface form the metal into a desired shape. The process may or may not involve cutting material, depending upon the specific type of stamping.
Stamping and pressing are two synonymous terms that actually cover a range of sheet metal forming processes performed over a press machine. Common stamping techniques include punching, blanking, embossing, bending, flanging, and coining.
Stamping could be a single-stage operation where each stroke of the press produces the desired form on the sheet metal part, or it could occur through a series of stages.
Automotive, aerospace, electronics, and consumer goods heavily rely on metal sheet stamping services. Car body panels, aircraft parts, electronic connectors, and household appliances are made via stamping techniques.
Advantages of Metal Stamping
- Cost-effective process compared to other metal machining and fabrication methods (like die casting).
- Flexible use case; allows for a range of operations: bending, punching, flanging.
- Setup time is lower than casting and machining methods.
- Scrap can be reused.
- The surface finishing cost is lower for stamped parts than for other manufactured products.
- It is also flexible in parts sizes, you can stamp the parts from 10mm x 300mm to 2,000 mm x 10,000 mm in dimensions.
Limitations of Metal Stamping
- Stamping presses can be expensive, especially for simple fabrication designs due to costly die setup.
- The scrap from stamping is relatively higher than in other processes.
What is Metal Punching?
Sheet metal punching is a subset of the stamping fabrication process that focuses on creating holes in sheet metal. A bit simpler explanation is how a punch machine (stationary item) creates precise holes in paper.
However, this process uses a more powerful punch press. The punch tool is forced through the metal sheet into a die, shearing the material and leaving a clean, precise cut. The separated piece called the slug, is considered scrap, while the remaining stock retains its integrity.
Metal sheet punching is an auxiliary process that may be carried out after the stamping methods. Examples of sheet metal punches are car panels, brackets, faceplates, and circuit boards.
Advantages of Punching
- Very precise and clean out that don’t require finishing.
- Cost-efficient compared to laser cutting.
- Quicker than drilling.
- Works well across different sheet metals including steel, aluminum, and copper.
- Low die and tooling cost, compared to stamping.
Limitations of Punching
- Punching works best on sheet metal (0.5mm to 6mm).
- Punch may leave the burrs on the top section of the hole, demanding deburring and other finishing processes.
Metal Punching vs Stamping: 9 Differences
From the introductory review, it is evident that punching fabrication and stamping are distinct processes. However, the comparison isn’t simple, as stamping encompasses a broader range of operations while punching is a more specialized technique.
“Stamping includes punching, but punching alone isn’t stamping. Punching focuses on holes and cutouts, but stamping goes further—bending, forming, and transforming sheet metal into intricate shapes”
To make things, let’s compare the process against different aspects. Before that, here’s a summarized view showcasing the key differences between punching and stamping.
| Metal Punching | Metal Stamping | |
| Major Function/s | Hole Cut Outs | Shaping to any 3D geometry/ Cutting a section |
| Supported Thicknesses | 0.0036 – 0.5 inches | 0.0001 – 6 inches |
| Tools | A punch and die set | Heavy duty stamp machine |
| Average Setup Cost | $200 – 10,000 | $10,000 to 10,000 |
| Lead | Low | High |
| Material Waste | High | Low |
| Applications | Perforating casing, brackets, ventilation holes | Body panels, Casings, surgical components, external housings |
Process Principle
The process principle in both methods revolves around a press and die system. A press exerts force, and a die shapes or shears the material to achieve the desired result. However, in both cases, the end results are different.
In most stamping techniques, the press works by shaping the metal in the die shape or just flanging it. So, basically, it transforms a flat 2D sheet metal into a 3D structure. In contrast, the punching process uses the same press and die system, but its sole purpose is to cut out holes in the material without altering its overall geometry.
Material Thickness
As per experts, stamping and punching are best suited for only processing sheet metal i.e. metal sheets with thicknesses 0.5mm (1/64 inch) to 6mm (1/4 inch). However, industrial practices differ slightly.
Most stamping presses available on the market can handle sheet metal thicknesses between 0.001 inches and 0.625 inches. However, some specialized dies can extend stamping capabilities to form and cut steel bars up to 3 inches thick.
Punching, being a specialized stamping process, is commonly performed on sheets with thicknesses between 0.0036 inches and 0.25 inches. Advanced CNC punching machines, however, can handle thicker materials, potentially cutting holes in sheets up to 0.5 inches thick.
Design complexity
Stamping is a group of shaping processes that transform the shape of sheet metal. It includes bending, flanging, coining, blanking – even punching technique also falls under the umbrella. With these combinations of techniques, manufacturers can make highly complex geometries out of sheet metal.
On the other hand, punching is a simple process that just focuses on one design element – making precise holes or cutouts in the workpiece. It often complements stamping by introducing features like perforations after the primary shaping is complete.
Tools and Equipment
A punch press is usually smaller and compact. Many use a C-frame, which is open on three sides. This makes it easy to load and unload materials. Some punch presses also have a turret with multiple punch tools, that allow quick tool changes for different hole sizes. Advanced machines often include CNC controls for precise hole cutting.
In contrast, a stamping press machine is usually more rigid and heavy-duty, because it has to require more forced tasks. Most stamp presses have a straight-sided frame to handle the heavy force needed for forming metal. These presses come with larger beds to support big or multiple dies. Stamping presses can be mechanical for speed or hydraulic for better force control.
Setup and Operational Costs
Punch presses are available in entry-level, compact models. Also, since they only have a single function to perform. So, such machines are comparatively affordable. Being compact in nature, they also occupy less space. Entry-level punching presses are available for a few hundred dollars.
In metal punching vs stamping comparison, stamping plants have heavy-duty presses and come with tonnes of force capacities. Their versatile nature comes with higher setup and operational costs. The initial investment is significant, and maintenance is also recurring.
Lead Time
Stamping can be a multi-step process involving several stages such as cutting, bending, or forming. Each step requires precise alignment, tooling changes, and additional handling, which overall makes the process somewhat time-consuming.
In contrast, punching is a single-step operation. Material is placed on the machine, and the hole or cutout is made in one motion without further processing. For single-operation processes, the lead time for stamping matches with punching.
Material Waste
Punching, by its nature, produces scrap in the form of slugs – the pieces of material removed to create holes. This waste is unavoidable as the process is focused solely on cutting through the material.
However, stamping encompasses a broader range of operations, and cutting is only one of its potential types. Many of its operations only reshape the material without removing any. Consequently, average material waste in stamping is much lower than in punching,
Applications
There are many application differences between punching and stamping, especially the diversity of use and capability of fabricating complex designs.
Some examples of punched products across different sectors are:
- Automotive Industry: Mounting holes for brackets and support structures.
- Electronics: Perforating casings and enclosures for ventilation or cable management.
- Appliances: Ventilation holes or assembly points in appliance panels.
Stamping shines in metal shaping and forming applications like:
- Automotive Industry: Body panels, chassis components, and engine parts.
- Aerospace: Complex 3D structural components with precise tolerances.
- Consumer Goods: Parts for household appliances and metal casings.
- Medical Equipment: Surgical instruments and diagnostic devices.
