CNC Milling is one of the most versatile machining operations. It aids in creating flat surfaces, complex internal geometries, and slots. Usually, that would require straight cuts.
But what if your geometry requires beveled edges or angular surfaces? Can milling handle it too? Yes, angle milling is a specialized technique for handling such geometries.
This blog explains all about angle milling, i.e., the process steps, the type of angle cutters, best practices, and applications.
What is Angle Milling: How is It Different from Plain Milling?
Angle milling is a type of milling technique for cutting materials at a specific angle (other than 90°) to create angular features like beveled edges, chamfers, or slanted surfaces.
Plain or standard milling uses a cylindrical cutter with teeth on the periphery to produce flat, horizontal surfaces parallel to the cutter’s axis. It basically shaves the layer to create level lines.
In contrast, for angular milling, either the workpiece or tool is tilted at an angle, or the tool has angular teeth to remove material in slopes. Sometimes, the feeding can be in a curved path, depending on the requirement. That’s basically how it achieves precise angles and shapes from raw workpieces.
How Angle Milling is Done: The Complete Process
Angular cutting is a precision machining process that requires careful planning and execution. Here’s a basic process workflow:
- Workpiece Setup

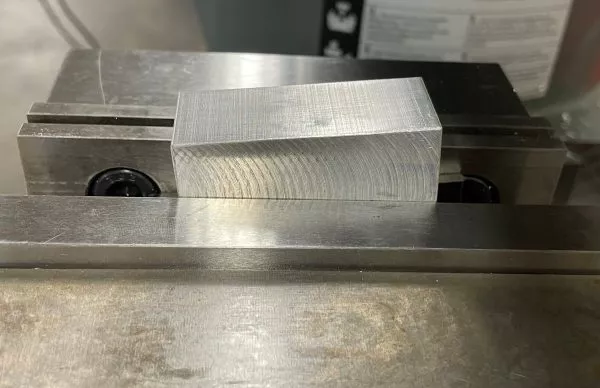

The first step is setting up the workpiece. Depending on the requirements, engineers determine if the desired geometry can be achieved by tilting the workpiece. If so, the workpiece is clamped at an angle on the vice. Angle blocks or fixtures can be used to ensure precise angular alignment.
- Tool Selection
In scenarios where you need chamfers or angled grooves, you may need a dedicated angle milling cutter. Single-angle cutters are best suited for chamfers, while double-angled cutters help in angled slots and grooves. You can choose between carbide or HSS cutters based on the material being cut.
- Setting Up the Machine and Cutting Parameters
In some cases, machines come with a tilted head, which can be adjusted to the desired angle. Other cutting parameters, such as speed, feed rate, and depth of cut, are set according to the material being machined. The recommendation is to start with conservative speeds and feeds to avoid tool deflection or overheating.
- Inspection
Once the cut is made, it needs to be inspected via an angle indicator or any other gauge available in the machine shop. For tighter tolerances and higher machining applications, coordinate measuring machines (CMMs) are much more effective.
Advantages and Limitations of Angle Milling Process
Angular milling is a unique process that offers multiple advantages. But like every other process, there are limitations, too.
Here’s a brief look at them:
Advantages:
- Very Precise: It achieves tight tolerances (±0.1° or better) by combining angular tool positioning with controlled machining paths. Unlike manual grinding or secondary operations, it delivers the same precision as plain milling but for angled features.
- Versatility in Designs: By adjusting the tool or workpiece angle, this method unlocks complex geometries like bevels, chamfers, dovetails, and V-grooves, features that are cumbersome or impossible with standard milling.
- Reduces the Need for Secondary Processes: Beveling edges or chamfering holes can be completed in a single setup, eliminating post-machining grinding or finishing.
- Saves Materials: Due to accurate cuts and machining in a single operation, material scrap is largely reduced.
Limitations
- Tool Wear: Angled cuts increase tool engagement and friction, accelerating wear.
- Setup Complexity: Aligning workpieces or tools at different angles demands specialized fixtures (e.g., sine bars, angle plates), meticulous measurement, and skilled labor – all of which make things complex and add up costs.
Types of Angle Milling Cutters
Milling cutters come in different profiles (multiple angles), each suited for specific applications. There are two primary types of angle cutters, single and double angle.
Single-Angle Milling Cutter
Single-angle cutters are distinguished by their conical face/angular face, which carries cutting teeth. They’re usually manufactured in single right and left angles at 45° and 60°. In most cases, they are used along the sides or edges of the workpiece for creating dovetails, chamfering, or beveling.
Double-Angle Milling Cutter
Double-angle milling cutters feature two symmetrical angular faces, each with cutting teeth, allowing them to create V-shaped grooves or slots in a single operation. These cutters are available in standard configurations like 45°, 60°, and 90°.
They can make grooves and dovetails in a single go, unlike a single-angle cutter, which needs multiple runs to create a symmetrical slot.
What Materials Can Undergo Angular Cutting?
The angular process is compatible with most common industrial metals, but the specific process parameters vary depending on the material’s properties. So, you’ve to adapt and make changes with respect to each material.
Here’s a breakdown of some common metals suitable for milling and what each one has to offer:
| Material | Hardness (HRC) | Tensile Strength (MPa) | Machinability | Strengths |
| Steel Alloys | 20–65 | 400–2,000 | Moderate | High strength, durable, versatile |
| Aluminum Alloys | 10–30 | 100–600 | Excellent | Lightweight, easy to machine |
| Titanium Alloys | 30–45 | 900–1,400 | Difficult | High strength-to-weight, corrosion-resistant |
| Brass/Copper | 10–40 | 200–500 | Good | Soft, excellent conductivity |
Best Practices for Successful Angle Milling Job
Angle milling is a peculiar machining job that requires careful design, planning, and the right tools to make things work. These few recommendations can help you achieve the best results:
Select Cutters Based on Geometry and Material
The cutter needs to be chosen based on the geometry. For simple bevels or chamfers, single-angle cutters (45° or 60°) are ideal. For more complex geometries, such as V-grooves or gear teeth, double-angle cutters provide the symmetry and precision needed.
When machining harder materials like steel or titanium, carbide-tipped or coated cutters are recommended for their durability and heat resistance. Specialized single cutters, commonly called chamfer cutters, are also available for precise finishing operations.
Combination of Cutters
You may also use a combination of milling cutters. For instance, a combination of a double-angle cutter with an end mill enables you to create a V-groove and finish the slot floor without tool changes.
Gang milling, where multiple cutters are mounted on a single arbor, is another effective strategy for machining several features simultaneously.
Design Custom Fixtures for Holding Workpieces
Whether you choose an angled cutter or decide to tilt the workpiece, the rigidity of the setup is very important. Angled cuts generate lateral forces that can cause vibration, deflection, or even tool breakage.
So, develop custom angular fixtures that keep the workpiece in place during the milling operation. Since angular cuts are being made, ensure you have an angle indicator or measuring gauge nearby to fix alignment issues.
Develop Coolant Strategy
Heat buildup is a staple in any machining operation, but you can manage it with an effective coolant strategy. For materials like steel and titanium, flood coolants (oil-water based) are best for heat dissipation. For softer materials like aluminum or copper, mist coolant is often sufficient and helps prevent chip welding.
Try and Test Machining Parameters
Balancing speed, feed, and depth of cut ensures precision and tool longevity. Generally, harder materials require a slower speed than softer ones. However, it’s better to try and test out parameters on a scrap piece before performing the actual job.
Best Use Cases/Applications of Angle Milling
Slots or chamfering may seem like simple tasks, but angle milling cutters play a critical role in complex and high-precision applications across industries.
Below is a table illustrating how angle milling is used in key sectors:
| Industry | Applications | Role of Angular Milling |
| Aerospace | Turbine blades, wing ribs, structural brackets | Machining aerodynamic edges, bevels, and lightweight structural features |
| Automotive | Engine blocks, transmission gears, camshafts | Making chamfers, gear teeth angles, and tapered slots |
| Medical | Orthopedic implants, surgical instruments | Machining biocompatible angled edges, micro-chamfers |
| Mold & Die | Injection molds, stamping dies | Cutting complex contours, draft angles, and textured surfaces |
