The process of boring machining is a unique process of cutting that helps in enlarging and refining workpieces with already-existing holes. This helps to achieve accurate alignment, great surface finishes, precise hole dimensions, which makes it suitable for industries such as heavy machinery, aerospace, and automotive.
In contrast to drilling that creates new holes, with boring you can improve the finish, shape, and size of existing holes. You can perform this process by making use of boring mills, milling machines, or lathes, usually with CNC automation to achieve high efficiency and accuracy.

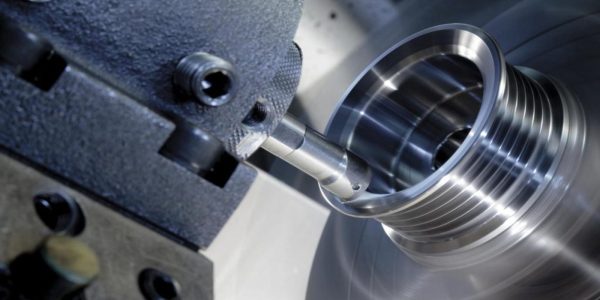

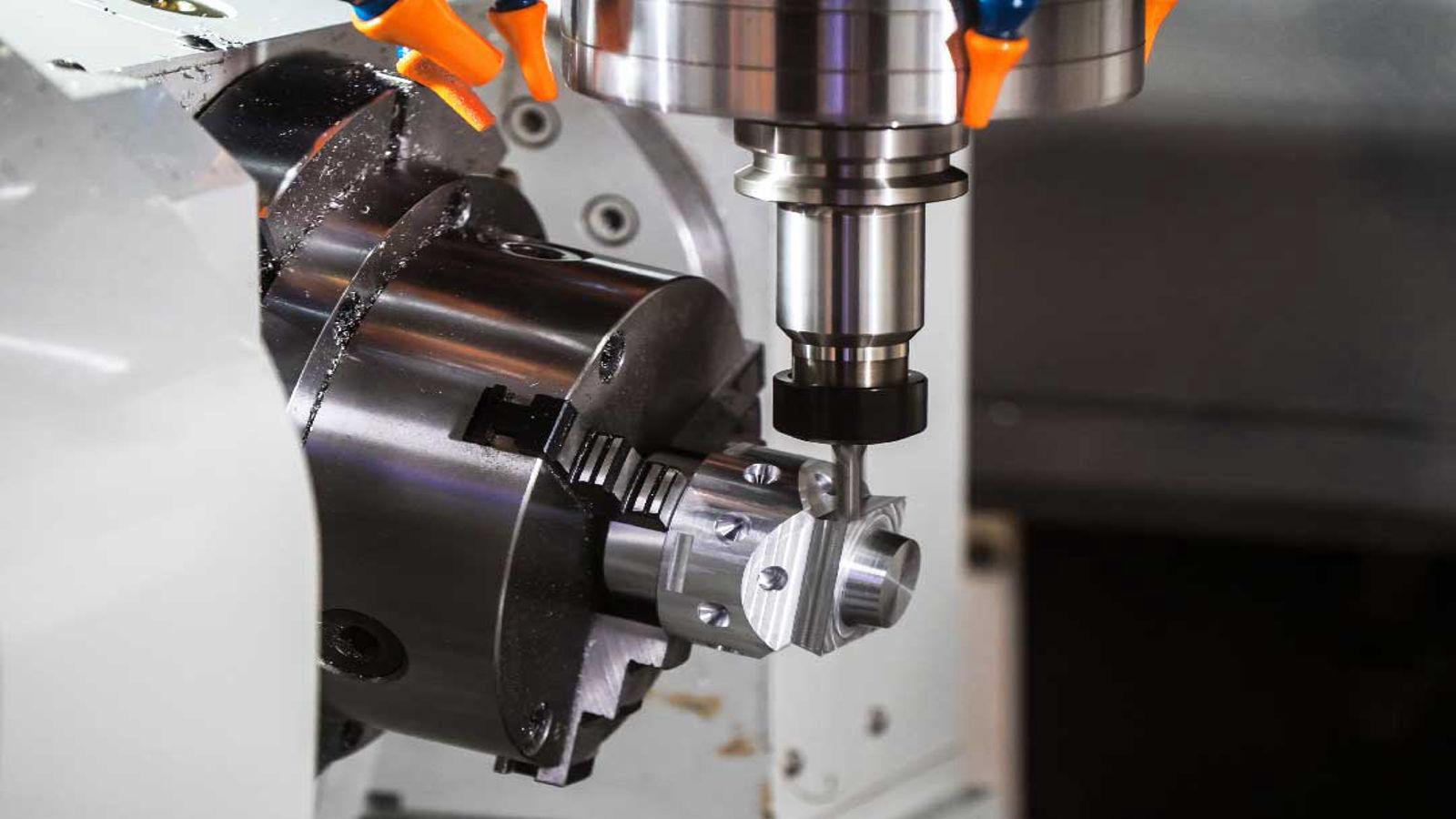

What’s Boring in Machining?
First, what’s boring about machining? It is a specialized technique that enlarges and refines the pre-cast or drilled holes with high accuracy. This helps in improving surface finish, hole accuracy, as well as alignment, thereby ensuring that it is important for manufacturing industries such as heavy machinery, aerospace, and automotive.
“ The key purpose of boring is increasing the diameter of the hole, achieving tighter tolerance, and smooth finish”
You can perform the process by making use of a boring tool, which is usually mounted on a milling machine, a lathe, or a boring machine. This tool gets rid of material from the hole’s inner surface, ensuring that it adheres to the right geometric and dimensional tolerances.
Furthermore, boring is usually used whenever the standard type of drilling fails to offer the required accuracy or whenever a hole has to undergo expansion beyond a drill bit’s capability. You can classify it into several types, like precision boring, back boring, and line boring; this depends on the application.
The process of machining is very important in achieving smooth finishes and tight tolerance, which makes it an important technique for precision engineering.
How Does Boring Machining Work?

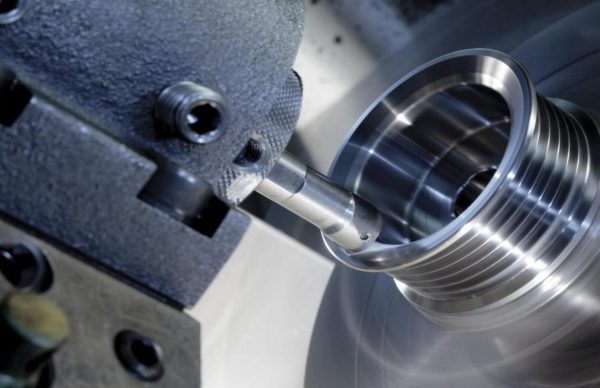

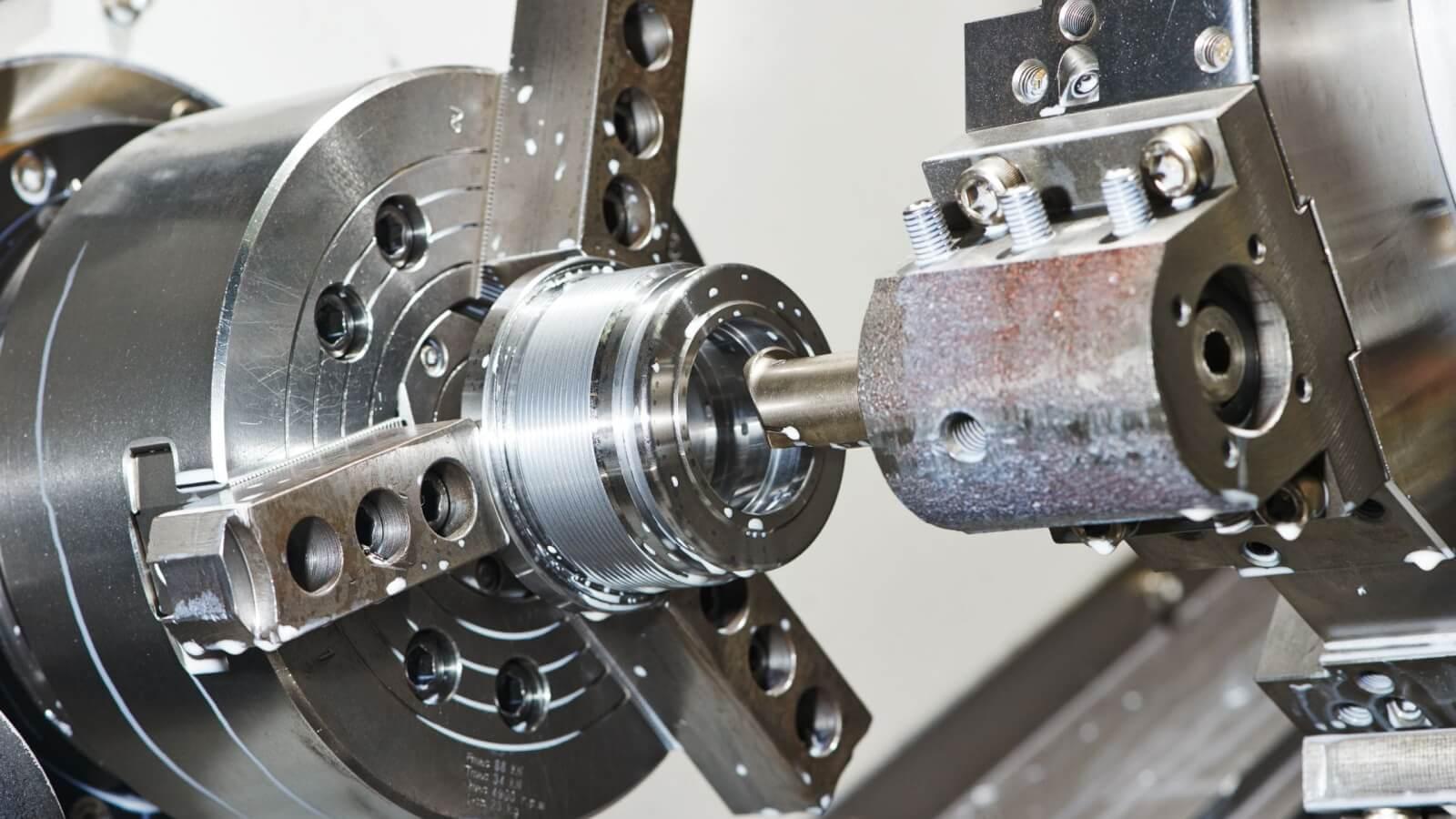

This machining method deals with a single-point cutting tool that removes material for a hole’s inner surfaces in order to have accurate dimensions, perfect alignment, and a better surface finish. Typically, the process starts with an already cast or drilled hole, functioning as a guide. Next, a boring tool, which is mounted on a milling machine, lathe, or boring machine is fed inside the hole. This tool rotates, removing the material gradually and ensuring that the hole achieves its desired shape and diameter.
You can perform boring tasks in two ways. The first is internal boring, whereby the tool passes through one end of the hole. The second way is through boring, which involves the complete passage of the tool through the workpiece. Also, to prevent tool deflection and maintain accuracy, you have to control the speed and cutting depth.
Boring has different techniques including line boring, which are useful for large workpieces such as back boring and blocks, then allows you to machine from the inside out. The CNC machines are useful for high accuracy, achieving consistency, and ensuring automatic boring.
To achieve accuracy, you must carefully select factors such as tool material, feed rate, and cutting speed. You may also use coolants to help prolong tool life and reduce heat.
What are the Different Types of Boring Machining?
Vertical Boring
This type of boring requires the use of a vertical boring mill machine. In this case, your workpiece remains in a stationary position as the boring tool moves in the vertical boring axis. You can integrate this technique for creating large and complex shapes parts like turbine housings. This machining method is stable and precise, which makes it suitable for use in industries such as automotive and aerospace.
Horizontal Boring
Here, the boring tools move horizontally while your workpiece is stationary. You can use this method of boring deep holes in big components. Horizontal boring mills are flexible and as such, you can use them for different tasks like milling, tapping, and drilling. Due to their efficiency and flexibility, you will find them commonly used in the mass production of components that require precision. For instance, this boring method is commonly used in industries like power generation and shipbuilding.
Micro Boring
Micro boring can machine every hole with tight tolerances, making it a commonly used method in the aerospace, automotive, medical, and electronics industries. This type of bore machining is popular in applications that require high precision. Moreover, micro boring tools feature diamond or carbide-tipped materials that can work with tight tolerances. If you want to maintain precision and consistency, you can use CNC machines to carry out micro boring.
Table Type Boring
This type of boring machining provides a moveable worktable that holds your workpiece in place while the boring tool is stationary. You can use this method to machine large components since it enables multi-directional movement.
You can use table type boring in tool and die making, industrial equipment production, and general machining.
Through boring
This is a type of boring method that involves boring a hole through a workpiece. Through boring offers smooth surfaces and consistency across the entire length of the hole. Due to its consistency and smoothness, this boring method is suitable in applications like hydraulic cylinder manufacturing, pipe production, and engine block machining. To ensure perfect hole length, this boring method integrates CNC control for high precision.
Floor Boring
The floor boring machine is perfect for machining extremely big and heavy components. This machine provides the high precision needed for cutting large structures. Therefore, it is a common method used in manufacturing turbines, industrial machine bases, and ship hills. For enhanced efficiency, floor boring machines work alongside CNC-controlled systems.
Jig Boring
This boring technique is popular in the aerospace engineering industry due to its high accuracy. It is suitable for applications that require you to machine accurate boring holes with extremely tight tolerances.
Jig boring involves the use of machines that have jigs and measuring systems to maintain dimensional accuracy and precise hole placement. Most times, this machining method is employed when creating bearing fits and dowel holes. In general, they work perfectly for applications where there is a need for extreme precision.
Precision Boring
Just as the name implies, precision boring concentrates on achieving the right tolerances. It is commonly used in industries that require high accuracy and fine surface finishes. This machine maintains perfect hole dimensions. Also, there is minimal tool deflection since the tools used in this boring method are coated with diamond or carbide.
Blind Boring
Blind boring is a type of boring method carried out when a bored hole fails to go through your workpiece. Depth control is important during this process to prevent overcutting the material. Blind boring is a common machining method for producing components that have closed-end holes. This boring method works alongside CNC machines to maintain perfect hole depth and diameter.
Back Boring
You integrate back boring when you need to enlarge a hole from the inside out, especially when you don’t have access from the front. Back boring is commonly used amongst automotive and aerospace manufacturers. Back boring tools enable perfect material removal as they expand when they get into the hole.
Line Boring
This bore making process is commonly used for designs or structures that require precise hole alignment. Line boring helps you to create several aligned holes in one operation. It is commonly integrated into manufacturing heavy machinery, advanced structural components, and other applications where precise hole alignment is crucial.
During line boring, long bars go through the whole workpiece to ensure perfect hole spacing and diameter. This process is suitable for fixing worn-out bores in heavy equipment.
CNC Boring
This method solely depends on computer numerical control (CNC) to bore holes in a workpiece automatically. It is a precise and efficient machining method used across a wide range of industries like industrial manufacturing, aerospace, and automotive. Also, CNC enables you to perform complex boring tasks like automatic tool changes and multi-axis movement. CNC boring is commonly used in high-precision manufacturing since it integrates automation.
Tools Used During Boring Machining Process
The boring machining process involves the use of different tools. These tools help you achieve precision during the entire process.

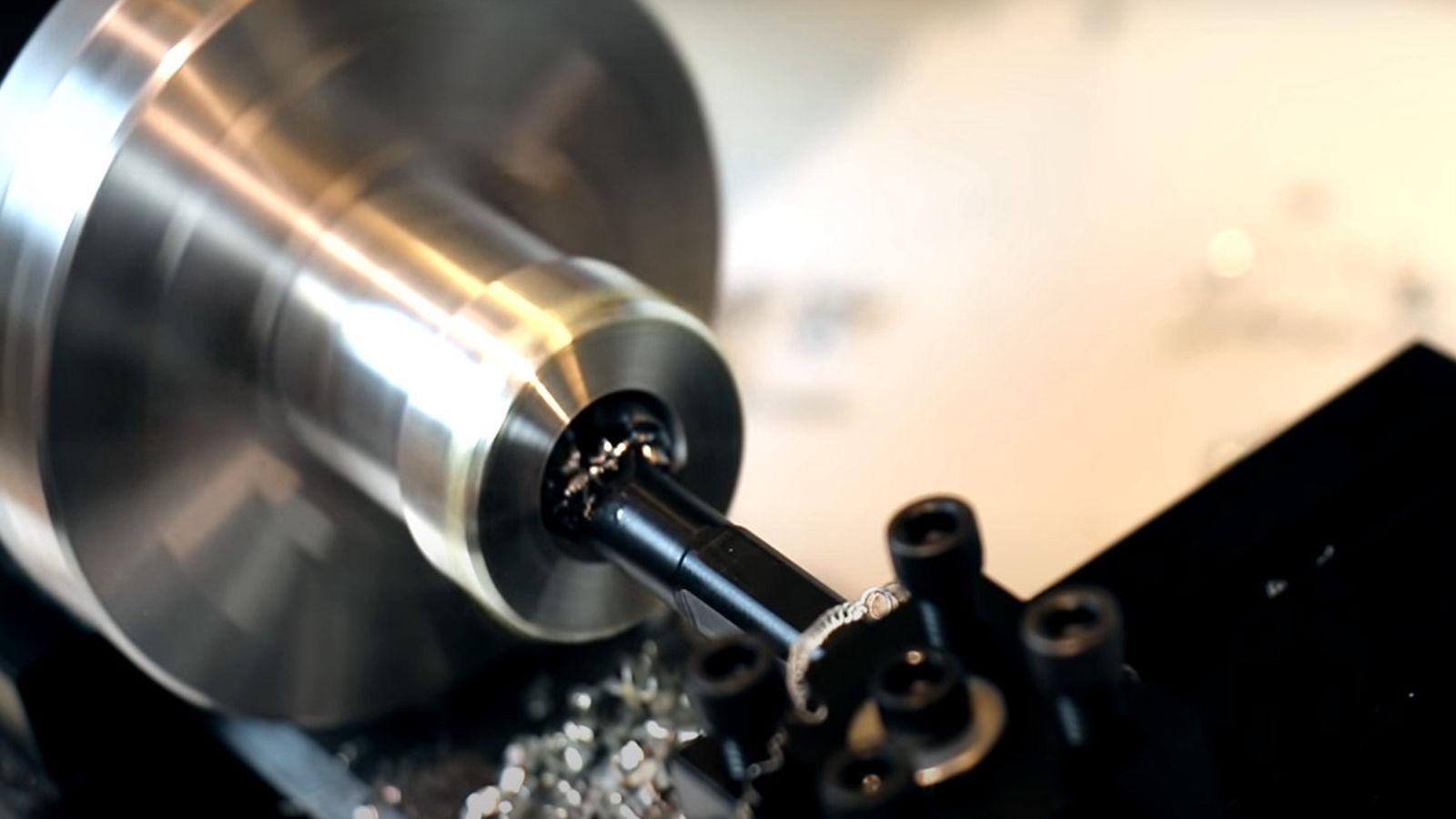

Boring bar
This tool secures the cutting insert and goes into the hole to get rid of material. It is a strong tool that helps in maintaining accuracy.
Boring head
This is a tool holder you can adjust to ensure fine-tuning of bore diameters. A boring head is a common tool used in boring mills and milling machines to create accurate hole sizes. You can adjust this tool for different diameters and cutting depths. This makes it a versatile tool for handling different machining operations.
Cutting inserts
These are replaceable tips that cut through the workpiece during boring . Cutting inserts are available in different coatings like ceramic, carbide, and diamond. These materials enhance their sharpness and performance. The type of insert you use depends on the material you are machining.
Micrometers and Dial Indicators
These are measuring tools that help you confirm the accuracy of the bore diameters. With these precise measuring tools, you can achieve tight tolerances and easily identify any deviations during the boring operation.
Depth Gauges
These tools measure how deep a bore is. The depth of your bore must meet the specifications of your design. Therefore, depth gauges are crucial during blind boring where there is a need for precise depth.
Automatic Tool Changers (CNC Boring)
These tool changers switch different bore processing tools between machines automatically. Since they don’t require human intervention, they enhance efficiency, improve precision machining, and minimize downtime.
Digital Probes
CNC machines make use of digital probes to confirm hole dimensions in real time. These probes maintain accuracy and ensure quality control through automated processes. Hence, they help to reduce machining errors.
Boring is a machining process that requires high precision and consistency. Therefore, it is important you select the proper tools during this process to help you achieve precise holes with fine finishes.
Parameters Required During Boring Machining
The bore machining process involves a wide range of parameters that must be carefully controlled to achieve precise and high-quality outcomes. Here are the common parameters involved during these machining processes.
Cut depth
This describes the amount of material you remove in one pass. There are several factors that determine the cutting depth you use during boring. Such factors include the required accuracy of the bore, material type, and machine’s rigidity.
A high cut depth helps to drive material faster, but this may cause vibration and tool deflection. On the other hand, shallow cut depths can offer a finer surface finish and better accuracy. However, you need more passes with a shallow cut depth, thereby increasing machining time. It is important to maintain a balanced cut depth to achieve quality.
Tolerances
This parameter indicates the deviation allowed from the bore diameter. Automotive and aerospace manufacturers require tight tolerances to achieve proper fit. You can achieve tight tolerances with good boring tools and balanced parameters. With real-time measurements, you can achieve tight tolerances in your operation.
Feed Rate
This is the distance in which your boring tool progresses in every revolution of the spindle. The feed rate is a crucial parameter that impacts the quality of your surface finish and the rate of material removal.
With a higher feed rate, you can remove material faster, but this may cause tool wear and rough surfaces finish. On the other hand, a lower feed rate offers fine finishes and high accuracy, but you get to spend more time during machining. Therefore, it is important you maintain a balance between quality and speed. However, the material of your workpiece determines these factors.
Material Hardness
The type of tool you use and the cutting parameters you select depend on the hardness of the material you are working with. For instance, harder materials need reduced cutting speed, diamond-casted tools, and balanced feet rates to ensure precision. Softer materials need high cutting speeds which may need some adjustments to avoid material deformation.
Spindle Speed
This describes the speed of the rotation of your boring tools. Spindle speed is usually measured in revolutions per minute (RPM). The appropriate spindle speed for your operation depends on the material of the tool, the material of the workpiece, and the bore diameter
Extremely high speed can cause excess heat, which results in poor surface finish and tool wear. Low speed can also increase machining time and cause improper material removal. If you want to achieve perfect cutting, ensure you set your spindle speed to match your material.
Machine Rigidity
Machine rigidity is an important parameter to consider during boring processes. This is because the excess vibration during this process can result in tool deflection and even poor surface finishes. A rigid machine that features a stable workpiece helps you maintain accuracy and consistency.
The rigidity of a machine usually depends on certain factors like the machine’s design and the technique used in securing the workpiece. Unnecessary movements can cause inaccuracies, therefore you should ensure you minimize them.
Tool Overhang
The top overhang describes how long the boring tool extends from your tool holder. If the length is too much, this can minimize accuracy and cause vibration and tool deflection. Also, a longer overhang can increase the risk of your tool bending. You can use the minimum overhang length for the desired bore depth. Also, damped tool holders can minimize vibration during deep boring
Bore Diameter
Bore diameter is an important parameter you should consider when determining the tools to use during boring. For larger bores, you need a boring bar to prevent tool deflection. Small bores, on the other hand, need micro-boring tools for accuracy. Also, bore diameter determines feed rate and cutting speed.
Coolant Flow Rate
Coolant helps to reduce the amount of heat generated during boring and improves tool life. Therefore, you need to use the optimal coolant flow rate to maintain cooling without too much flooding. A high coolant flow rate dissipates heat faster during deep boring, while a regulated coolant rate improves cutting efficiency. Coolants are available in different types, which include oil-based and water-based solutions. The type you choose depends on the machining condition and material type.
Surface Finish Requirements
The surface finish of the bore material should be smooth and fine. For instance, hydraulic systems and bearing fits need smooth finishes. Some factors determine the quality of a surface finish. These include machine stability, tool sharpness, and cutting speed. You can achieve a high-quality surface finish with low fee rates, proper coolant application, and sharper cutting edges.
What are the Benefits of Boring Machining?
Several benefits come with boring machining; this is why it is useful in industries requiring efficiency and accuracy. Below are some important benefits
Versatility
You can perform boring on different machines, which include CNC boring machines, milling machines, and lathes. It works with different materials, including soft metals such as aluminum to composites and hardened steel. This process also works with different hole types, including stepped, through, and blind bores.
High-quality Surface finish
With the boring process, you can produce a better and smoother hole surface in contrast to drilling. With this, it improves the longevity of the component, reduces friction and gets rid of secondary finishes such as honing or reaming.
Higher Accuracy
With boring machining, you can achieve accurate hole refinement and enlargement, which ensures tight tolerances. In contrast to drilling, which may cause slightly rough or misaligned holes, boring helps to achieve perfect alignment, roundness, as well as dimensional accuracy, which is important for applications such as industrial machinery, aerospace parts, and engine components.
Customizable hole sizes
In contrast to standard drilling, you can have control over the hole diameter. You can have customizable hole sizes, that meet your requirements and specifications. This also reduces the need for more finishing operations.
Efficiency
The bore machining process is cost-effective and can be completed quickly. Also, it enhances productivity, reduces material waste, and minimizes manual adjustments, which makes it an important technique during high-precision manufacturing.
Cons of Boring Machining
Although boring is a versatile machining method that offers accuracy and efficiency, it has its limitations.
Needs very skilled operators
It is a sophisticated process that requires the need of highly skilled boring operators who can adjust parameters, achieve tight tolerances, and use the right cutting tools. While CNC automation aids boring, the process still requires experience and knowledge to ensure great results.
High cost of boring equipment
Boring machines are very expensive, particularly the CNC models. Also, the tools involved in the boring add to the expense. This may be too much for small-scale manufacturers to handle.
Tool deflection
The risk of tool deflection is higher, especially when you are boring deep holes. Tool deflection can cause other problems like possible scrap parts, inaccuracies, and uneven surface finishes.
Can only expand or refined holes
Boring can only refine or expand an already created hole. It can’t create new holes. This means drilling has to occur first before boring.
Increased machining time
Since the process of boring requires several passes to ensure accuracy, it tends to be very slow. The finishing passes may have to align with the tolerance requirements and desired surface finish. This would increase machining time.
Boring Machining vs Other Machining Processes?
Boring machining is a popular machining process, just like drilling, milling, and turning. Hence, it is often compared with these other processes. Each machining method differs in its functions, benefits, and drawbacks. So, what are the differences between boring and other machining methods?
Boring vs Turning
The process involved in both boring and turning has to do with material removal. However, these two methods have different purposes. While turning is a process that shapes the outer surface of a workpiece, boring enlarges or refined hole in a workpiece. Turning is only carried out on lathes, however, boring can be performed on milling machines, lathes, and even specific boring mills.
With turning, you can quickly shape outer diameters. Boring, on the other hand, helps to achieve accurate internal bore dimensions.
Boring vs Drilling
Drilling involves making a new hole with the help of a rotating drill bit. Boring is a process that only expands or refines pre-drilled holes. Drilling is more suitable for creating rough holes; however, it doesn’t offer fine surface finish and accuracy unlike boring. You need a boring process when smooth finishes and accurate hole dimensions are crucial. Therefore, in many machining processes, drilling is the initial step performed before boring takes place
Boring vs Reaming
Reaming involves expanding a drilled hole to improve its surface finish and ensure accuracy. It is a finishing process, hence you can change the size of a hole with reaming. Reaming is suitable for fine-tuning as it can only get rid of a very small amount of material. On the other hand, boring is ideal for reshaping or resizing a hole. Reaming is usually performed after boring or drilling.
Boring vs Milling
Milling is a popular machining process that involves material removal through a rotating cutting tool. It is ideal for making flat surfaces and contours. Although milling can create holes too, it won’t be as accurate as boring. Boring is a more suitable method for achieving precise hole dimensions. Milling is suitable for machining complex surfaces.
Applications of Boring Machining
Boring machining is a common machining process in applications where there is a need to enlarge and refine holes precisely. This process helps to achieve high-quality surface finishes, tight tolerances, and precise hole dimensions. Below are common applications;
Automotive Industry
Automotive manufacturers use a boring machining method to make cylinder bores that maintain piston movement. Also, this process is suitable for manufacturing other automotive parts like crankshaft bearings.
Aerospace Industry
Aerospace manufacturers also rely on the boring CNC machining process for producing engine mounts, turbine housings, and other components that need high-precision bores. Since boring helps to achieve tight tolerances, they are an ideal method for creating critical and complex aircraft components.
Construction Equipment
Heavy-duty machines like cranes, excavators, and bulldozers need boring for making precise holes for shafts and bearings. Also, heavy machine frames with worn-out bores need line boring for repair.
Medical Industry
Boring is commonly applied in the manufacturing process of medical components like surgical tools. With the help of micro-boring, manufacturers can make small, precise holes for certain medical devices.
Oil & Gas Industry
Boring is very useful in manufacturing parts like valve bodies, drill collars, and pipelines. For these parts, it is important to use accurate bores as this enhances proper sealing.
General Manufacturing
Boring has been helpful in several applications. This machining method ensures precise hole dimensions and alignment in several applications.
How Much Does Boring Machining Cost?
Boring machining cost varies based on different factors like the type of material, precision needs, bore size, type of machine, and bore depth. However, the average cost of a basic boring task ranges between $60 to $200 per hour. The cost of CNC boring operation may be within the range of $100 to $300 every hour. The price is higher because CNC integrates automation and delivers high accuracy.
Micro-boring and other specialized boring processes may require more cost due to tooling expenses and the time required for machine setup. However, the cost might be lower for large-scale production.
Challenges Associated with Boring Machining
Although CNC boring offers a lot of benefits like precise hole dimensions, efficiency, and accuracy. However, there are some challenges associated with this machining process.
Heat generation
The continuous friction that occurs during cutting causes extreme heat, particularly in deep-hole boring. Too much heat can cause tools to wear out and cause material deformation. This is why you should consider using coolants to manage excess heat.
Machine wear
Constantly boring tasks can stress machines and make their components wear out. Hard materials and poor maintenance can cause wear. This will reduce accuracy and often lead to frequent servicing of machines.
Vibration
This is another common challenge associated with boring. Machine instability and tool deflection are causes of vibration. If not properly managed, vibration can reduce accuracy and cause poor surface finish. You can minimize the impact of vibration by using damping techniques and rigid boring bars.
Surface finish
Poor-quality surface finish is a major challenge in boring machining. This usually occurs when you are handling hard materials or using deep bores. However, you can solve the problem by using the appropriate feed rate and ideal coolant use.
Measurement Error
Boring is a precise process and as such, errors in depth or diameter can tamper with your results. Therefore, it is ideal to rely on CNC machines and automatic measuring tools to achieve high accuracy.
Machining error
Machining errors such as improper tool setup, incorrect alignment, and spindle runout are common challenges in boring.
Material Hardness
When working with hard materials like titanium or stainless steel, there is a greater likelihood of tool wear. These materials usually require slower cutting speeds and specialized tools during boring. Also, use the right parameters and cutting inserts to solve this problem.
Materials Compatible with Boring Machining?
Different materials are compatible with the boring method, although each of these materials has its distinct properties. Therefore, your tool selection and machining techniques will depend on the type of material you are working with.
Aluminum
This lightweight metal requires high cutting speeds. Aluminum doesn’t cause frequent tool wear, making it easy to machine. However, built-up edges can form in this material. You can prevent this by using sharp carbide inserts.
Steel
Steel is a versatile material with high strength. You may need harder cutting tools like carbide inserts to machine High-carbon steel. On the other hand, Low-carbon steel is quite easy to machine. Make sure you use the right amount of coolant to prevent tool wear.
Titanium
This strong material is commonly used in the automotive and aerospace industries due to their non-corrosive features. Titanium is a hard material that can generate high heat during machining. Therefore, you need to use specialized cutting tools and cut at slower speeds.
Copper
This metal has exceptional electrical and thermal conductivity. It is quite difficult to machine since it can create burrs. You can prevent this by using high cutting speed and sharp tools.
Brass
Due to its wear-resistant properties, brass is very easy to machine. You can achieve smooth finishes with brass. This makes it suitable for use in electrical and plumbing applications.
Cast iron
You need strong carbide tools to machine cast iron since it is very hard. This material generates abrasive dust during the boring process. Therefore, you need to ensure rigid setups during this process.
Conclusion
Boring is a common machining process integrated across different industries. This process creates holes with precision. With boring, you can achieve tight tolerances and accurate hole dimensions. Also, this process can be used in different materials ranging from aluminum to carbon-steel, to titanium.
Boring as a machining process keeps evolving, all thanks to the innovation in CNC technology. This makes a commonly used process across several industries where precision and efficiency are crucial in manufacturing critical components.
