What is Multi-axis Machining? Why Precision Matters

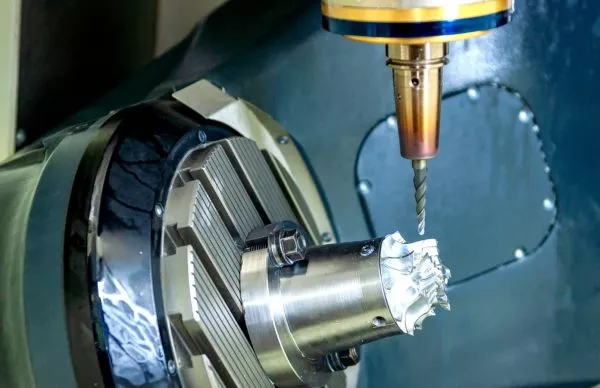

multi axis machining for precision parts

Published:  October 11, 2024         Reading Time:  About 3 minutes

Multi-axis computer numerical control machining is a term that is viable in the future with the ever-growing industrialization. It allows the construction of sophisticated shapes and precise features requiring a high degree of manufacturing precision. Being a non-touch-operated machine, it has evolved from aerospace applications to use in the jewelry-making industries.

This article will focus on multi axis CNC machining in all basic to advanced details. It will include defining multi-axis machining, how it works, its types, the components, how to choose, the limitations, the applications, and more. So, keep watching!

what is multi axis cnc machining

What’s Multi-axis Machining?

“Multi axis machining is a modern form of machining employed in engineering processes that allows manufacturing of even complex parts at simple set up.”

There is a clear difference between the traditional machining ( having only X, Y, and Z axes ) and the multiaxial working concept. Multi-axis machining entails placing further axes either on the tool or the workpiece. It permits rotation or movement in more than one axis. This convenience facilitates advanced tooling and the designing of accessories that are normally not achieved.

This particular process is very common in fields that require intricate patterns in the parts. For instance, multi-axis machining makes it easier and more accurate to fabricate turbine blades, active components of engines, or surgical implants, as other processes call them. Additionally, this increases the rate of production and reduces the rate of working errors.

Apart from improving the directional accuracy and lead time of workpieces, the use of multi-axis machining also motivates the application of high-performance materials. There is always an evolution for viable manufacturing industries into different lightweight but strong materials.

How Multi-axis CNC Machining Works?

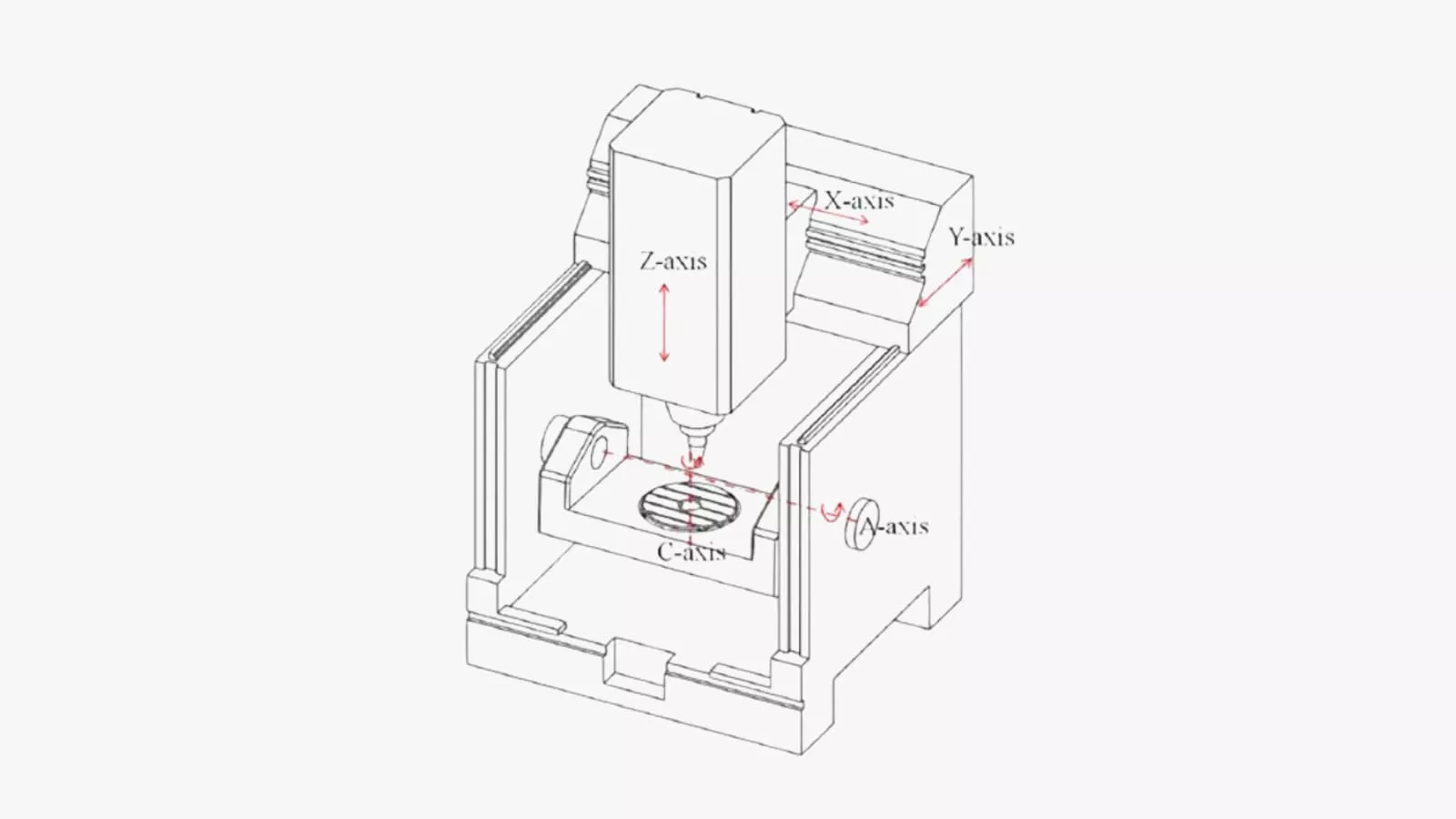

cnc machine working

A multi-axis CNC machining process involves applying computer numerically controlled(CNC) programming. It aims to make parts with moderate intricacies. In this mode of operation, a CNC machine grows complex shapes through several configurations of axes programmed by CNC codes. This vertical type of machine allows the cutting, fracture, or milling of material in complex discrete structures.

Adjusting such machines relative to workpiece direction rather than utilizing separate processes makes it possible to use them to produce many designs simultaneously effectively.

Vertical machining applications invariably shorten the manufacturing lead time and increase accuracy as they cause less likelihood of misfit or misplacement. The processes are mostly high-level automation. Hence, human monitoring is not required.

Types of Multi-axis CNC Machining

5 axis cnc machining

There are various types of multi-axis machining systems, such as;

3-axis CNC Machining

The least complex 3-axis CNC machining technique is the one having limited movements to the X, Y, and Y coordinate confinements. It is suitable for primary parts and standard form.

4-axis CNC Machining

4-axis CNC machining has an extra movement, which is usually rotational movement along the x-axis, enabling more advanced part designs. This is useful for systems that can easily machine on more than one side without needing to reorient the system.

5-axis CNC Machining

5-axis machining centers are most suitable when dealing with complex parts. This machine offers multi-complex geometrically shaped surfaces, which is ideal for aerospace and medical devices.

3+2 axis CNC Machining

3+2 axis machines are almost 5-axis machines, but the difference lies in the number of lines the machines operated along. This is beneficial for machining features that need proper angles.

6-axis CNC Machining

6-axis machines include adding a rotational axis, which aims to enhance the capability of the manufacturing of the parts, enhancing efficiency, and minimizing lead time by minimizing adjustment provisions.

7-axis CNC Machining

7-axis machines include many more movements and robotic arms designed for extraordinary working movements. In addition, it allows one to perform very delicate tasks at a high precision level.

9-axis CNC Machining

9-axis CNC machining encompasses turning and milling operations. It increases the efficiency of production processes by allowing the formation of intricate parts of different configuration shapes in a single setup. It is particularly applicable in the construction of precision engineering components.

12-axis Machining

Finally, you can use 12-axis machining which requires special rotary motion around a length and width plus a travel axis moving along both. As a result, you can use it in the most advanced compounds with specialized applications requiring high precision.

Key Components of Multi-Axis Machines Systems

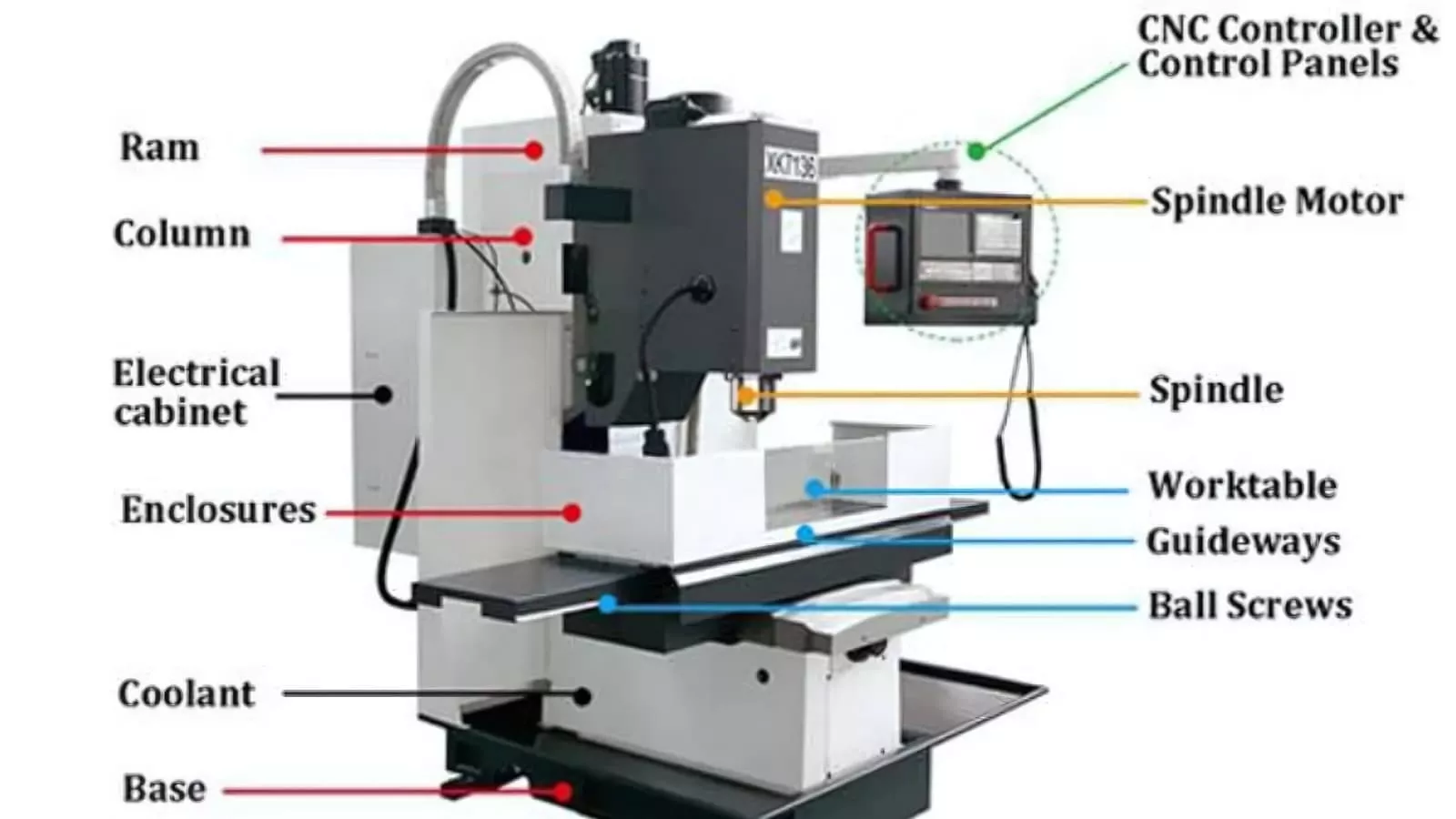

components of multi axis cnc machining

Multi-axis machining systems consist of key system components that, while able to operate independently, accumulate and integrate or interoperate while manufacturing complex and accurate parts.

  • Cutting tool: The cutting tool is the machine part in the work contact. Its functions are to cut, drill, or mill the material as per the job requirement. The nature, quality, and movement of the cutting tool are influential factors in the surface quality and precision of the workpiece being machined.
  • Spindle: The multi axis CNC lathe is one of the major parts of the machine. It is a special device that must fast grip and spin cutting tools. It ensures the maintenance of correct conditions to allow the necessary cutting action.
  • Multi-Axes: Multi axis milling allows the fabrication of parts that have revolute forced rotary and axial rotational head cutters on many other relevant axes.
  • Tool changer: It refers to a device used in machining processes wherein the cutting action is undertaken with numerous tools, with one tool replacing another tool not fixed into the device during machining. This part facilitates effectiveness by lessening the manual operations and machine downtime as required.
  • Workholding devices: How do these workholding devices function? They hold the workpiece firmly. They hold the workpiece firmly and securely to avoid any movements, thereby enhancing the precision machining capabilities.
  • CNC Control Panel: The control panel is the last component of the CNC machine and serves as the interface between the operator and the machine. CNC controller allows the operator to design and control the machining process and, if need be, make changes to satisfy the desired outcomes.

How to Select a Multi-Axis Machine for Your Project

Looking for a multi-axis machine that satisfies the entire requirements and all needs of the project? Alright! Just ponder on the following points.

Understanding Your Project Requirement

The first thing you need to do is analyze your input to the project. Gauge the sophistication of the parts you going to manufacture. Also, consider the materials and how accurate the end workpiece should be. Such factors will help you determine the response type of machine that will be best suited for you.

Choose the Right Number of Axes

Next, it is important to choose the corresponding number of axes. The number of these axes determines to what extent the machine is capable of making complicated such parts. Where the part is simplistic, then the 3-axis or 4-axis will be enough. However, where the parts are more detailed, then a 5-axis machine or even a 6-axis might be necessary to have the needed details.

Evaluate the Machines’ Capabilities

Evaluate all the specifications and parameters of machine performance, such as spindle speed, power, available tooling, and so on. Also, verify that the machine will fit the materials, size, and specifications of the project, such as high-speed machining, automation, and other affordable requirements.

Consider machine Rigidity and Stability

Consider machine rigidity and stability when guaranteeing a part’s quality and accuracy. A part-machine with good rigidity and stability helps reduce quality errors.

Consider the Total Cost of Ownership

The last thing that includes the TCO ‘total cost of ownership’ is a machine and its upkeep, outfitting, and operational costs. Taking all these and other things into account, it is possible to select a multi-axis machine that will meet your needs as it relates to the projects.

Why is Multi-axis Machining Ideal for High Precision Parts

There are so many reasons that assert multi-axis machining as the most effective way of making very high-precision spare parts.

a) Single Setup Efficiency: Multi-axis machine tools require multiple operations done within one machine setup, which is cost-effective and saves time when it comes to repositioning. That is a good thing since it reduces errors, saves time, and sustains constant accuracy throughout the process.

b) Enhanced Precision and Accuracy: Using multiple axes, gives better tolerance and cutting control than can be achieved with a single cutting spindle. This is especially true in industries where tolerance is critical, especially aerospace and medical device manufacturers.

c) Complex Geometry Capability: A multi-axis machine can create structures and shapes that conventional machines can’t. Because of this ability, it is suitable for parts with complex structures.

d) Improved Surface Finish: These machines add manufacturing processes for which accuracy demands even more acute taper cuts and transitions. This leads to an even better finish surface. This cuts the number of finishing operations required, speeds up the time taken to complete the contract, and lowers costs.

e) Reduced Need for Fixtures: Few locating fixtures support the workpiece in multi-axis operations. This leads to good precision because the work stays in place with reduced chances of displacement.

f) Prolonged Tool Life: Multi-axis machines attempted to manage tool wear by changing the angle that they cut, which preserved more of the tool to make maintenance cheaper.

g) Mass Production Capabilities: Multi-axis machines can turn high duplicates of precisely mounted and machined parts. They are most effective in terms of production output quality consistency.

Limitations of Multi-axis Machining in Industry

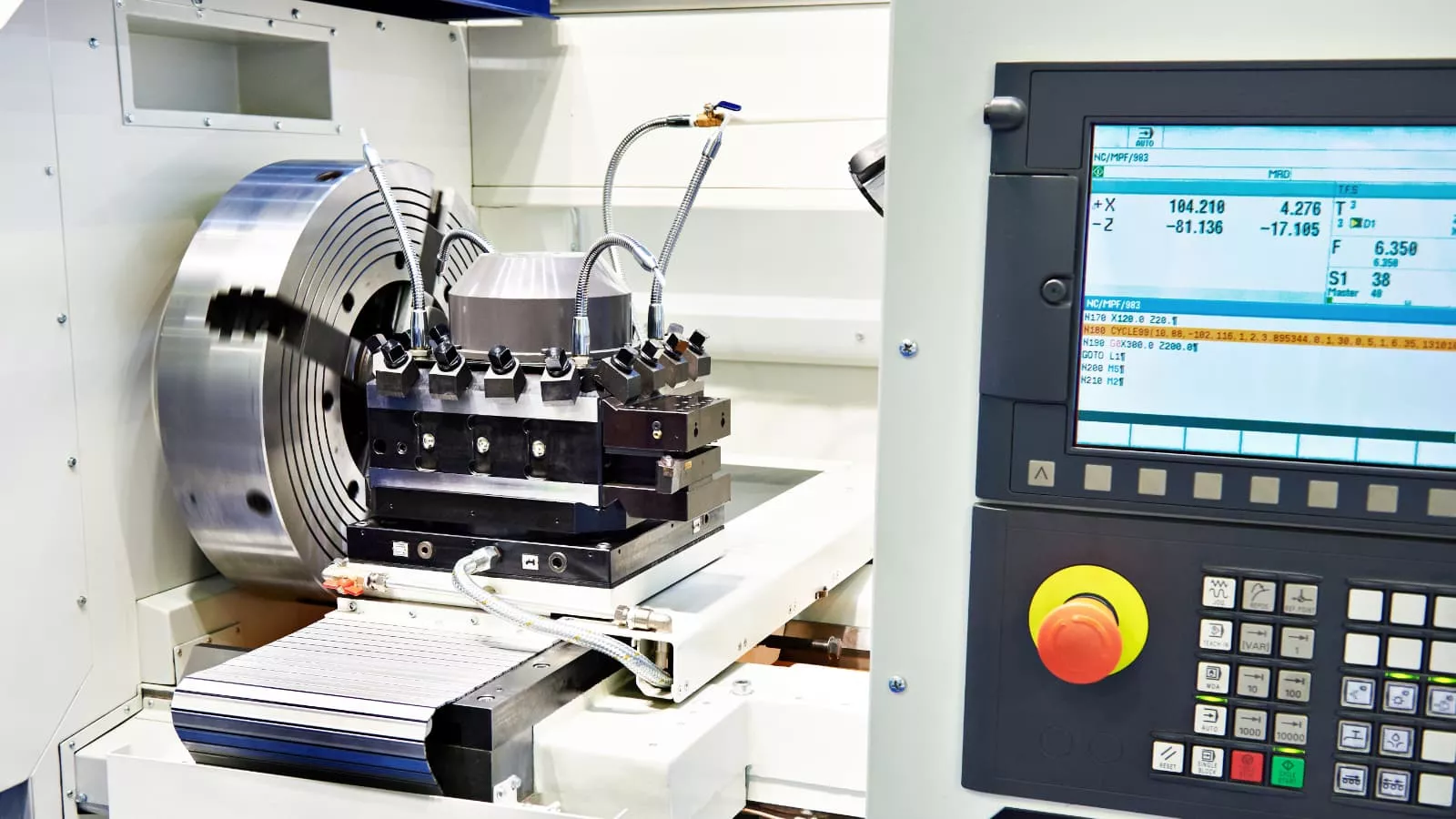

complex setup cnc machining

The advantages of multi-axis machining capability are clear. Natural though it may be, the use of this technology still has some disadvantages which lower its sphere of application in the industry.

High Machining Costs

The costs consist of the initial purchase cost of acquiring the multi-axis machines and the operational cost which includes, maintenance, tooling, and energy costs of these machines.

Complex Setup and Programming

The setup and programming usually take long durations, which is somewhat complicated. Most of the complexities involved strategic repositioning of the operators, which may increase the cumulative work required.

Longer Lead Times

Extended lead time due to more complex programming approaches. This may, however, be a disadvantage when the production cycles are short in that there is no room for turnaround time.

Increased Risk of Errors

The increased number of axes, code processing, and movements increase the chances of committing programming errors because dust is collected on the clutch coating some blades when stirring. These errors were operator errors. These delays would affect the operation and are also expensive to sort out.

Skill Requirements

The majority of skilled people can program these machines. So, managing such multi-axis machines requires specialized manpower that is well-trained in CNC programming and Machine operating, which is not readily available.

Maintenance Complexity

A machine is always out of operation because, even for the multi-axis machines, there is a lack of hearth maintenance compared to the other machines. Calibration and part-changing services are necessities to preserve precision; this will increase the upkeep burden.

Applications of Multi-Axis Machining Across Industries

This advanced multi-axis equipment is also used in many industries because it can manufacture intricate and accurate parts.

  • Aerospace sector: The aerospace industry is heavily reliant on multi-axis machining. It produces accurate parts such as turbine blades, engine components, and structures. Manufacturers should note that a proper working machine includes many complicated design components that are precisely and strictly shaped.
  • Automotive Industry: Multiaxis machine tools assist in developing intricate structures such as engine cases, machine/motor units, and limbs for blade action, damper action, etc.
  • Medical devices: Multi-axis machining with a slight deviation is commonplace in this field. It’s suitable for surgical instruments, implants, and prostheses. Biomedical scanners meet the medical field’s ambitions for accuracy without failure.
  • Jewellery Industry: Multi-axis machining is important in manufacturing works incorporating engrossing details like rings, necklaces, and pendants. It enhances the artwork and incorporates exceptional details and twists in the machined components.
  • Furniture industry: This method prevents monotony (lack of variety) in the themes of furniture designs. It, too, explores notions that designers would want to achieve through multi-axis sculpting.

Outsourcing Precision Multi-Axis Machining: What to Consider

Several facets need consideration to achieve the intended outcome within acceptable quality standards.

  • Prepare the design: First, you need to design the component. This includes specifying details as to dimensions, form or materials, and any other tolerances required for the completion of the project. Careful and objective project planning reduces mistakes and optimizes the expected outcome.
  • Create CAD model:  Subsequently, in line with the design, develop a proper CAD model. This computer-aided design picture acts as a template for the machining operations. It makes it possible to visualize how the manufactured component will appear.
  • Convert CAD to CAM:  Once the CAD model has been drawn up, all of the illustrations should be included in a particular CAM session created in some fashion. The process of creating instructions for the CNC machine, which is called CAM, involves generating the images and directing CNC machining systems to optimize the actual machine. Knowing how to do the conversion is important to accomplish the look and feel of the design.
  • Machine setup: The machine also has to be set up. It is very important to ascertain that the workpiece is securely held and that the machine is set up and in the focus of the activity. This particular step is critical for the precision and accuracy requisite.
  • Execute the program: Once the setup has been carried out, the next step is to execute the program that has been set up. During this phase, one should conduct regular tests to prevent any problems.
  • Final inspection: Finally, identify any physical particulars of the part involved, such as forms, finishes, and dimensions, to confirm that the ready-made part meets quality standards and specifications. This step also assures that the machining operation has been done correctly and the part can be regarded as ready for use.

Once you work with RapidDirect precision multi-axis machining services, you will understand how to manage the entire process. How to follow every stage, such as design preparation and final inspection of the component. RapidDirect expertise further enhances the normal functioning of most of the phases (assuring high-quality output) in the shortest time possible.

Conclusion

Considering the above, multi-axis machining comes in handy to industries that manufacture parts with complex shapes and features and high precision. It improves the accuracy of the manufactured part and its surface finish, as well as overall productivity. This commissioning process also requires quality focus on the igneous detail of the entire task, such as its preparation and final inspection process.

RapidDirect meets such a challenge due to its precision machining services. It sequentially organizes the stages of production, securing the maximum possible productive quality within a proper time window. Due to high technology and advanced skills, RapidDirect will assist you in your manufacturing endeavors by obtaining a level of accuracy and efficiency that is almost impossible to achieve on one’s own.

FAQs

1. How can I master 5-axis machining?

Mastering five-axis machining can be simple if you first learn the machine’s capabilities and CAD/CAM working optimization. You should also understand the entire setup and alignment process, have cognizance, and, most importantly, be willing to do projects and seek additional training. Some skills require the accompaniment of studies and mentorship to be assimilated better and in a shorter period.

2. What advantages does 5-axis machining offer compared to 3-axis machining?

5-axis machining is superior to 3-axis machining in terms of cutting accuracy, geometrical complexity, and surface finish quality. It allows cuts from different directions without changing the setup, which increases speed and precision.

3. How many axes can a CNC machine have?

The number of axes that a CNC machine has varies from 3 and goes up to about 12 axes. In most cases, most common users will use 3-axis, 4-axis, and 5-axis CNC sawing machines. However, it is typical that more advanced models with 12 or up most often be the case for the operation, which inherently involves repetitive, accurate cutting.
