What’s Precision Machining? Process, Advantages, and Applications

Table of Contents

Subscribe for expert design and manufacturing tips delivered to your inbox.

    The manufacturing industry has evolved drastically over the past century. Earlier we had simple machine configurations that easily worked with manually-made parts – precision didn’t matter much. As tech and mobility advanced, more crucial moving components were made – aircraft and automobile components where a slight deviation could be fatal. This critical need for exactness gave rise to the discipline of precision machining.

    This article focuses on the broad concept of precision machining in manufacturing, highlighting the key processes and tools that aid in achieving such precision.

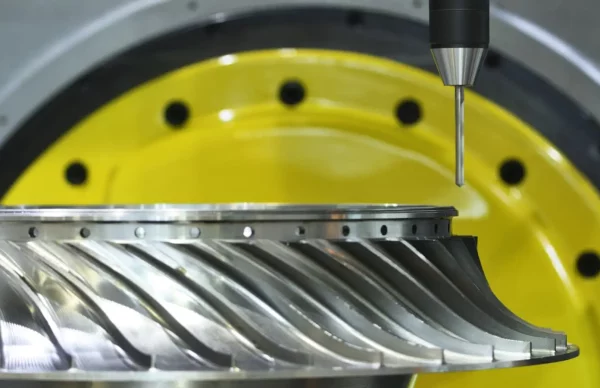

    precision machining automotive parts

    Key Concepts in Advanced Manufacturing

    Over the years, manufacturing has undergone rapid advancements. What were once simple assemblies managed by hundreds of technicians and workers, are now highly automated processes dominated by CNC machines.

    Here’s a quick overview of terms you’ll often come across when studying advanced manufacturing:

    Precision Machine

    Precision machines are engineered to fabricate parts with exceptionally high accuracy and strict tolerances. These machines leverage advanced control systems, guided by computer numerical control (CNC) technology, to perform precise cutting, milling, turning or drilling operations. Common examples include CNC milling machines, CNC lathes, and Swiss-type lathes.

    Precision Manufacturing

    Precision manufacturing refers to a set of practices and processes used across the manufacturing industry to produce components with high precision. This approach encompasses the use of precision machines, rigorous quality control measures, and advanced technologies to ensure products consistently meet exact specifications with minimal variance.

    CNC Manufacturing

    CNC manufacturing involves the use of computer numerical control (CNC) machines that are programmed to carry out designated operations with high precision and efficiency. This technique streamlines the production process and enhances the quality of the manufactured parts.

    Computer-Aided Design (CAD)

    Computer Aided Design (CAD) means creating detailed and precise digital models of physical components on a computer. With CAD software, designers and engineers can construct, modify, analyze, and optimize designs before making any physical prototype.

    What’s Precision Machining?

    CNC Precision machining is a subtractive manufacturing process that utilizes high-speed CNC machines to create complex geometries with exceptional accuracy and within strict tolerances.

    The idea is to create parts – precisely very close to the dimensions of the digital design. The tolerances are extremely low, ideally 1000th of an inch.  This method employs state-of-the-art, CNC precision machines that get instructions from a computer system and recreate the same dimensions in the final part.

    precision machining process for automotive parts

    The Importance of Precision in Modern Machining

    Precision in machining critically determines the operational integrity, safety, and market viability of manufactured products. This exactness is essential for ensuring that engineered components function according to their design specifications without risk of failure.

    In sectors such as aerospace and medical devices, where safety is paramount, even minor discrepancies from the specified dimensions can lead to severe consequences, including system failures that may jeopardize lives. Therefore, precision in the machining and manufacturing of these parts is crucial, enabling flawless integration and dependable performance under rigorous conditions.

    Moreover, the advancement of high-tech components relies heavily on the capabilities of precision machining. This technique is key to producing complex and miniaturized components that are essential for emerging technologies in fields like electronics and quantum computing.

    Lastly, maintaining stringent precision in machining processes is essential for meeting the highest quality standards. This not only helps in sustaining a manufacturer’s reputation but also in building and retaining consumer trust in competitive industries.

    Overview of the Precision Machining Process

    Precision machining is a series of carefully planned steps that collectively produce a part perfectly matching its design.

    1. Design Using CAD (Computer-Aided Design)

    The process begins with a rough sketch of the part. Then, engineers use CAD software to create a graphical model, laying the foundation for the design. Popular CAD tools include AutoCAD and SolidWorks – the latter is famous for its robust 3D design capabilities.

    2. Conversion to CAM (Computer Aided Manufacturing)

    A CNC machine cannot directly interpret a graphical model; it requires machine-readable code. It came as a separate module but most modern CAD software now includes CAM capabilities.

    With a single command, the software translates the 3D model into a series of code lines, comprising G-codes and M-codes. G-codes define the cutting tool paths and coordinates, while M-codes manage all auxiliary functions such as tool changes and coolant flow.

    3. Material Selection and Preparation

    The choice of material primarily depends on the part’s requirements, machinability, and cost. In most applications where hardness and strength are required, usually steel is the first choice.  When weight is a concern, for instance in aerospace applications, manufacturers may choose lightweight aluminum. A subsequent section highlights this point in detail.

    4. Setup of Precision Machinery

    The machine setup includes selecting and precisely calibrating the precision machine tools, checking the fluid and coolant levels, and possibly running a dry run to ensure everything is set correctly.

    5. Execution of Machining

    Once everything is set up, the machining process can begin. During the process, monitor the initial stages of the process.  Some machines may require a technician’s attention for adjustments, for instance, calibrating tool positions or modifying feed rates to accommodate variations in material hardness or tool wear.

    6. Post-Processing Steps

    Although precision machined parts often emerge from the machine close to their final form, some may require additional finishing, such as polishing or grinding. The last step is quality assurance checks to confirm that each part adheres to the specified precise dimensions.

    Exploring Types of Precision Machining Machinery

    cnc machining equipment for precision parts

    There has been a lot of debate on precision machining technology but one may be curious about the machine setup that helps achieve that precision. So, here’s a brief outlook on some CNC precision machining equipment.

    CNC Milling Machines

    CNC milling machines use a rotary cutter to remove material from a workpiece. The machines are controlled by CAD/CAM software, enabling them to perform different operations such as pocket milling, profile milling, and surface contouring.

    They are ideal for die sinking and creating intricate features in metal and plastic parts. Different configurations include knee mills, bed mills, turret mills, C-frame, and gantry mills.

    Advantages:

    • Can produce parts with tolerances up to 0.0004”.
    • Compatible with various materials, including metals, plastics, and composites.
    • Ideal for surface contouring and making pockets.

    Disadvantages:

    • More material wastage compared to additive processes like 3D printing.

    Applications:

    Automotive parts, aerospace components, intricate parts in dies.

    CNC Turning Centers (Lathes)

    In CNC lathes or turning centers, the workpiece rotates against a fixed cutting tool, creating a precise symmetrical shape, like a shaft. Some lathes also incorporate live tooling capabilities that allow them to execute additional processes other than just turning. For instance, a Y-axis lathes lets you offset the center to create complex geometries. It also allows for tapping, milling, drilling, and turning.

    Advantages:

    • High precision in creating symmetrical parts.
    • Live tooling allows for multi-process machining.
    • Efficient for large-scale production runs.

    Disadvantages:

    • Less versatile for non-cylindrical components.

    Applications:

    Symmetrical components: shafts, rods, and cylindrical parts.

    Swiss-Type Lathes

    A Swiss-type lathe is different from a traditional lathe; here the headstock can move linearly instead of being stationary. The guided bush behind the headstock allows for precise movement of the workpiece. These machines are ideal for extremely small and intricate parts.

    Advantages:

    • Tools and workpieces are close, minimizing the risk of tool deflection.
    • Can produce parts with tolerances up to 0.0001”.
    • Can run higher RPMS compared to traditional lathes.

    Disadvantages:

    • Higher tool costs.
    • Limited bar stock size.

    Applications:

    Implants, surgical tools, and microelectronic components.

    Multi-Axis Machining Centers

    Generally, machining allows movement in three axes: X, Y, and Z. Multi-axis machines allow working 4 or more axes; up to 12 axes machines are available.

    Multi-axis machines are capable of performing multiple operations on a single bed. For instance, one single machine can perform water jet cutting, engraving, and milling.

    Advantages:

    • Enables the machining of intricate and complex parts without repositioning the workpiece.
    • Reduces total production time and improves workflow efficiency.
    • Increases the potential for innovation in part design due to fewer geometric constraints.

    Disadvantages:

    • Higher initial investment.

    Applications:

    Prototyping, aerospace, automotive parts, and complex medical devices.

    Mill Turning CNC Centers

    One kind of multi-axis machine that combines the capabilities of CNC milling and turning into a single machine. It permits both the rotating of the workpiece and the movement of the cutting tool. Live tooling capability is also available.

    Advantages:

    • Lower space requirement than separate milling and turning machines.
    • Improves product consistency by minimizing the handling between operations.

    Disadvantages:

    • Complex configuration and setup.

    Applications:

    Cylindrical parts that require both keys and slots.

    CNC Grinding Machines

    Precision grinders use abrasive wheels to achieve high-accuracy surface finishes and tight dimensional tolerances on parts. They are commonly used to finish machined parts after they have been milled or turned to achieve a smoother surface or a specific dimensional tolerance. Surface grinders, cylindrical grinders, and centerless grinders are among the few popular types.

    Advantages:

    • Automated machines; can run continuously for weeks.
    • Offer great repeatability.
    • Compatible with a range of materials.

    Disadvantages:

    • A time-consuming process

    Applications:

    Finishing automotive parts like gears, shafts

    CNC Drill Presses

    CNC drill presses feature a stationary workpiece that lies on a small fixed bed while a drill bit (from the top) rotates to create precise holes. Their major use is drilling holes for fasteners or assembly operations. These drill presses have various types including upright, bench, and radial drill presses, with adaptations for CNC operations.

    Advantages:

    • High precision and repeatability in hole placement and size.
    • Automated operations reduce manual errors and increase productivity.

    Disadvantages:

    • Just provide drilling operations.

    Applications:

    Holes in metalwork for fasteners; wood industry

    Electrical Discharge Machines (EDM)

    EDM machines use electric discharge/sparks to shape by material removal. They aid in precision machining metals (even hard ones) and produce intricate designs that are difficult to achieve with traditional machining. Two forms of EDM machines include wire EDM and die sinker EDM.

    Advantages:

    • Ideal for hard or fragile materials that cannot withstand mechanical stresses.
    • Provide a micron-level precision.
    • Highly capable of cutting materials with sharp corners and intricate interior details.

    Disadvantages:

    • Slower compared to other machining methods.
    • Works only on conductive metals.

    Applications:

    Dies, fixtures, and precision parts manufacturing, holes smaller than 0.1mm

    Laser Cutting and Engraving Machines

    Laser cutting machines use a high-power laser beam as a cutting tool to cut, engrave, or mark materials. These machines can cut and engrave both metals and non-metals.

    Its configuration varies from flatbed lasers for sheet materials to 3D lasers for cutting and engraving complex shapes. Desktop versions for laser machines are also available.

    Advantages:

    • Slower compared to other machining methods.
    • Works only on conductive metals.

    Disadvantages:

    • Limited to certain material thicknesses and types.

    Applications:

    Fabrication of industrial parts, decorative and crafts work

    Water Jet Cutters

    Water jet cutting is a non-thermal cutting method that employs a high-pressure (up to 60,000 psi) stream of water, mixed with abrasive particles, to cut through materials. Since the process works without introducing heat, it prevents material distortion and changes in intrinsic properties.

    Advantages:

    • Versatile enough to cut most materials.
    • Leaves a smooth surface, often eliminating the need for secondary finishing.
    • Environmentally friendly, producing no hazardous waste.

    Disadvantages:

    • Higher operating costs due to the use of abrasives and high water consumption.

    Applications:

    All types of material cutting (metal, plastics, stone, etc.)

    Selecting Materials for Precision Machining

    Precision material is suitable for a wide range of materials. Here’s a table that enlists popular materials, properties, and end-use cases.

    ClassMaterialCharacteristicsMachinabilityEnd uses
     AluminumLightweight, corrosion-resistantEasyAutomotive parts, aircraft components
     Stainless SteelHigh corrosion resistance, excellent mechanical propertiesVaries by alloyFood industry, medical devices, and marine applications.
    MetalBrassGood corrosion resistance, excellent machinabilityVery easyPlumbing fittings, electrical connectors, decorative items.
     CopperExcellent electrical and thermal conductivityModerateElectrical wiring, heat exchangers, roofing.
     BronzeStrong, corrosion-resistantDifficultBushings, bearings, coins, marine hardware.
     TitaniumLightweight, strong, corrosion-resistantDifficultAerospace structures, medical implants
    PlasticsABSHigh strength, toughness, good heat resistanceEasyAutomotive components, consumer goods, electronic assemblies.
     PC (Polycarbonate)Impact-resistant, transparentModerateSafety equipment, optical lenses, electronic enclosures.
     PMMA (Acrylic)Transparent, lightweightEasySignage, displays, light fixtures.
     POM (Acetal)High stiffness, low friction, wear resistanceModeratePrecision gears, bearings, electrical engineering components.
     PA (Nylon)Strong, wear-resistant, low frictionModerateGears, bearings, automotive components.
     PEEKHigh temperature and chemical resistanceDifficultAerospace parts, medical equipment
    CompositesFRP (Fiberglass Reinforced Plastic)Good strength-to-weight ratio, corrosion resistanceModerate to difficult, abrasive on toolsAutomotive body panels, marine vessels, construction.
    Ceramics and advanced materialsAluminaExcellent hardness, wear resistance, electrical insulationVery difficultCutting tools, wear-resistant components.
     ZirconiaHigh strength, toughness, heat resistanceVery difficultDental implants, cutting tools, ball bearings.
     Silicon CarbideExtremely hard, thermal and wear resistanceVery difficult, and requires specialized equipmentHigh-performance applications like aerospace, and nuclear parts.
    Table 1: Materials Suitable for Precision Machining

    Considerations for Material Selection

    When selecting a material, do consider the machinability, physical properties, cost, and applications.

    Typically manufacturers have an interest in two physical properties, strength, and hardness – the quantities upon which the machinability depends. The higher the hardness, the more difficult it is to machine. However, such difficult-to-machine materials are excellent to use as tools. The cost is also a concern, especially in high-volume setups.

    You may refer to Table 1, see the physical properties and applications of each material and choose a material as per your specific needs.

    Diverse Applications of Precision Machining Across Industries

    Precision machining finds applications in every sector where the parts need to mate with each other seamlessly. Some applications include:

    IndustrySpecific Applications
    Aerospace IndustryAircraft engines, structural components, landing gear
    Medical IndustrySurgical instruments, implants, prosthetics
    Automotive IndustryGear components, engine parts, couplings
    Electronics IndustryConnectors, circuit boards, enclosures
    Tool and Die MakingMolds, dies, cutting tools, jigs and fixtures
    Energy SectorTurbine components, drilling equipment
    Defense SectorWeapon prototypes, missile systems, armored vehicle parts

    Advantages of Employing Precision Machining Techniques

    Manufacturers shift to precision CNC machining techniques due to a multitude of advantages:

    precision machined parts

    High Accuracy and Tight Tolerances

    The key benefit of the precision machining process is its high accuracy and tight tolerance, where a standard tolerance level is around 0.005 inches.

    Tolerance refers to the allowable variation in the dimension of a part. Generally, there are four standard types of machining tolerance: unilateral tolerance, which permits variation in one direction; bilateral tolerance, which allows deviation on both sides of a specified dimension; compound tolerance, which represents the net tolerance obtained by adding and subtracting all dimensional tolerances of that part; and limit tolerance, which specifies dimensions as a range, such as 10 to 12 mm.

    Complexity and Flexibility in Manufacturing

    Precision machining enables manufacturers to create complex geometries with high accuracy and repeatability, which is crucial for industries like aerospace, medical, and automotive, where precise dimensional tolerances and intricate features are essential.

    Moreover, the flexibility offered by CNC machines means that adjustments to the design can be made quickly by simply altering the software parameters. This adaptability reduces the time and cost associated with creating and modifying tools or molds, facilitating efficient prototyping and customization. This combination of complexity and flexibility significantly enhances the capability of manufacturers to meet diverse and evolving product requirements effectively.

    Efficiency and Speed

    CNCs drastically speed up the machining time due to the automation and control system running in the background. As per estimates, CNC machines are 200 to 300 times faster than traditional machines.

    Moreover, the machine configuration, programming, and everything is under control with CAD/CAM software integration. This translates to minimal setup time, improving the speed and efficiency of the product.

    Improved Quality and Reliability

    Besides speed, the computerized control ensures every part made is identical and within the specified dimensions. Tight control over the machining process also results in fewer errors during production.

    Moreover, as parts are cut precisely with fine tools, the final surface rarely needs secondary finishing. The precision also cuts down on waste and reduces the likelihood of producing non-conforming parts

    Cost-Effectiveness

    Although the initial setup for precision machining may seem costly, precision machining is cost-effective for both large-scale and customized production.

    Traditional manufacturing methods might require multiple stages and machines to produce a single component, whereas precision machining often completes a part in a single setup.

    Moreover, every part is cut to the exact right dimension, so there’s minimal material waste. Automation eliminates most manual labor jobs, reducing the error rate.

    Accuracy vs. Precision in Machining: A Comparative Analysis

    Precision and accuracy are often used interchangeably in the machining world, but they describe different aspects of measurement quality.

    Accuracy refers to how close a machined part’s measurements are to the reference values outlined in the design specifications. If a part matches the CAD design exactly, down to the last millimeter, it is considered highly accurate.

    In contrast, precision measures the consistency of output across multiple productions of the same part. If a machining process produces parts that are nearly identical to each other but not necessarily close to the design specifications, it is considered precise. Precision is about the repeatable accuracy of the machining process rather than its closeness to a specific value.

    Potential Drawbacks of Precision Machining

    Precision machining shines in various aspects, however, there are some downsides as well.

    High Initial Investment

    Since CNC machines have advanced functionalities, their initial cost is much higher than traditional tools. Industrial-level CNC machines start at around $100,000, with some models reaching half a million dollars.

    Complex Setup and Operation

    Setting up CNC machines is more complex compared to traditional machines, primarily due to their sophisticated tooling setups. Moreover, operating these machines requires skilled precision machinists, which adds to the overall cost of labor.

    Economic Scalability

    CNC machining is excellent for producing a specific batch of products, but it may not be economically viable for large production runs. This limitation is due to the high setup costs and the time required to configure machines for each new job.

    Outsourcing Your Precision Machined Products

    Producing precision-machined products in-house can be challenging, especially when the demand for these products is infrequent. Outsourcing the machining of precise products is the most practical option.

    RapidDirect provides a one-stop solution for all precision machining services. We are an ISO 2768 and ISO 9001:13485 certified company, ensuring that each component meets stringent quality standards.

    Our services include Precision CNC milling, turning, grinding, and EDM with tolerances up to 0.01mm. Whether you need precision prototype machining or large-scale production, we handle projects of any size using the best materials and cutting-edge technology.

    Try RapidDirect Now!
    All information and uploads are secure and confidential.

    Conclusion

    Today’s machines are intricate assemblies made up of numerous micro-parts, each of which must synchronize perfectly to function as a unified whole. Precise machining is crucial in this context – it ensures that every component is manufactured to exact dimensions.

    There are multiple CNC machining equipment options available to perform specific cutting tasks. As the world continues to shift towards more advanced technologies and microsystems, the significance and use of CNC precision machining will only increase.

    Contact us at RapidDirect to learn how we can support your manufacturing goals with precision and reliability.

    Tagged:

    Let's Start A New Project Today

    Latest Blog Posts

    Check out the latest industry trends and take inspiration from our updated blogs, giving you a fresh insight to help boost your business.

    precision machining automotive parts

    What’s Precision Machining? Process, Advantages, and Applications

    The manufacturing industry has evolved drastically over the past century. Earlier we had simple machine configurations that easily worked with …

    what is waterjet cutting

    Waterjet Cutting: Techniques, Uses, and Advantages

    Waterjet cutting is a process that utilizes a computer-controlled (CNC) cutting machine, equipped with specialized software. This software orchestrates the …

    wire edm cutting

    What’s Wire EDM Machining? Process and Applications Explained

    Lathes and milling machines are commonly associated with machining, but wire electrical discharge machining (EDM) offers specialized advantages for certain …
