What’s Shell Molding: Process, Materials, and Applications

You may have heard about the traditional process of sand casting, where molten material gets poured into a mold and solidifies into a shape. However, that final product often doesn’t meet precise requirements right away – a series of machining operations are carried out to achieve the right dimensions and surface finish.

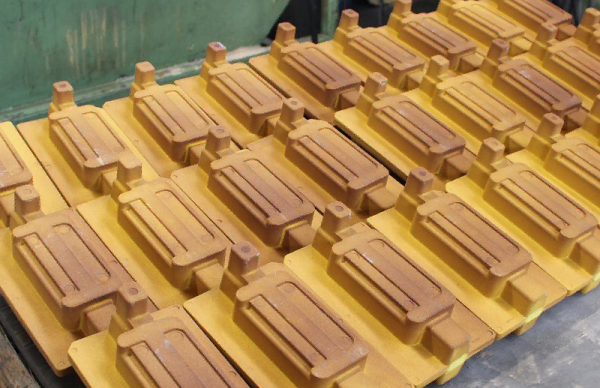

Shell molding is a refined casting approach that tackles these challenges. Instead of relying on loose sand, it creates a thin and hard shell of sand and a thermosetting resin binder. This shell provides superior dimensional accuracy and a smooth surface finish, reducing the need for additional machining.

This article explores the process of shell molding, the materials best suited for it, and its multiple product applications across industries.

What is Shell Molding?

Shell molding is also known Croning process, after its inventor, Johannes Croning – a German engineer who devoted his life to developing casting techniques and machines. The discovery of shell mold casting was one of his major innovations that paved the way for more accurate building of parts.

Shell casting is an expendable mold casting technique in which a thin-walled shell of sand and thermosetting resin binder is used as a mold. This shell, unlike traditional sand molds, is strong and resin-bonded. It results in superior dimensional accuracy and a smooth surface finish.

Shell Molding Process: Step by Step

The shell mold casting process is slightly lengthier than the sand casting process as it involves a series of preparatory steps. Here’s how the process works:

Step I: Machining the Metal Pattern

For casting you need a metal pattern that accounts for shrinkage and machining allowance. Usually, manufacturers make it via machining, and in two halves. Iron and steel are common. However, graphite is also an option for reactive metals.

Step II: Mold Construction

This is the most critical process in the journey that starts with metal pattern heating at 230–340ºC (450–650ºF). Then, technicians lubricate it with calcium stearate so the sand shell doesn’t stick to it.

The whole pattern gets hung over a dump box containing a blend of fine silica sand and thermosetting phenolic resin. That box is flipped to cover the hot pattern with the sand-resin mixture. The heat from the pattern slightly cures a layer of the mixture, forming a firm shell around 9–20 mm thick.

After a few seconds, they invert the pattern and box again to let any loose, uncured sand fall away. This leaves just the cured shell adhered to the pattern. Finally, the shell gets placed in an oven for complete curing. This is where it gets in its tensile strength (350 to 450 psi). We require a two-part shell, so the same mold construction process gets repeated for the other half.

Step III: Assembly of Mold

After the construction of both shelves, their assembly starts. Clamping or gluing are two options for joining.

Step IV: Pouring Process

For added support of the shell, technicians may place it inside a pouring jacket or surrounded by sand, gravel, or metal shot. Then, they pour the molten metal into the mold cavity. This may done by hand or by machine.

Step V: Cooling and Cast Removal

The metal cools naturally. Once it’s solidified, the workers may open or break the mold to remove the cast part. Then, the casting is cleaned or machined as per finish requirements.

Materials Compatible with Shell Molding

You can use shell casting for most types of metals, pure and alloys – both ferrous and non-ferrous.

Cast Iron

Cast iron was once the most cast metal due to its mechanical properties. Still, its use is prevalent in the industry. Fray cast iron, nodular iron, white cast iron, malleable iron, and alloy cast irons are popular for this casting.

Steels

Steel castings are known for their high tensile strength and toughness. The best steel options are:

• Carbon Steel: It is machinable and wear-resistant to fewer percentage alloying elements. However, it is more susceptible to corrosion compared to other types of steel.

• Alloy Steel: These steels contain additional alloying elements to enhance strength and hardness. Favorable grades for casting include 45Mn, and 40Cr.

• Stainless Steel: With high chromium content (about 10.5%), stainless steel is corrosion-resistant and durable. However, it can have a brittle nature plus its strength is not as good as carbon steel.

Aluminum Alloys

Aluminum alloys are suitable for lightweight applications for instance aerospace. ASTM A356 and ASTM 360 are common aluminum alloys for mold casting.

Copper Alloys

Copper is a ductile material with excellent conductivity and corrosion resistance. So, the use case is applications requiring these properties, for instance, electrical components. However, copper alloys are expensive and offer less strength than steel.

Advantages of Shell Molding

Shell mold casting is popular for its better tolerances, surface finishes, and versatile material capabilities.

Here’s a list of advantages, the casting process has to offer:

• Better Dimensional Accuracy: Shell molding products have excellent dimensional accuracy. This is because of a thin layer of cured shell, which maintains shape under heat and pressure. For medium-sized parts, you can achieve tolerances up to ±0.25 mm.
• Good Surface Finish: Unlike sand casting, molten metal comes in contact with a dry closed shell, whose surface is smooth and non-porous. This results in less surface deformities and great surface, ideally up to 2.5 µm
• Short Lead Times: Once the shell mold is made, you can re-use it with consistent results. This not only shortens the lead time but also makes the process economical for larger production runs of the same unit.
• Reduced Level of Gas Defects: The process uses a higher binder content than other methods. Still, the thin-walled, hollow cores create natural ventilation paths. The improved permeability of coarser sand in the shell mold helps to eliminate gas buildup, resulting in better castings.
• Automation Possibility: The shell casting process can be easily automated, which makes it suitable for high-volume manufacturing. There are machines that can handle all key tasks: metal pattern heating, shell formation, and assembly.
• Versatile Material Support: Both ferrous and non-ferrous metals are castable via shell molding. This makes its use case versatile across materials.

Limitations of Shell Molding

Some downsides of shell casting include:

• Limited Weight Handling: Shell molding can only support moderate-size and limited-weight material parts due to its thin-walled structure. It can handle parts between 30g to 10 kg (25 lb.)
• Expensive Resin: The thermosetting phenolic resin used in shell molding is more costly than the binders used in traditional sand casting.
• High Equipment Cost: The process also requires a separate setup for heating and curing, which adds more cost. Plus, if you switch to an automated version, the capital cost is even higher.

Applications of Shell Mold Casting

Shell casting is very effective in replicating metal parts with dimensional accuracy in a short time. So, the shell-molded products span across multiple industries, including automotive, aerospace, energy, medical, etc.

The presence of resins increases the surface smoothness, which eliminates the need for extensive post-processing. Subsequently, it requires less labor & time, reducing the overall production cost. For these reasons, manufacturers prefer the shell molding method for the production of small to medium-sized metal parts

The table below outlines the specific shell molding applications in various industrial sectors;

Shell Molding Vs Other Casting Processes

Molding is a broader technology that refers to shaping the material by melting and solidifying it in a die or mold, shell casting is one of them. Besides this, there are other closely related techniques, such as sanding casting, die casting, and investment casting.

Shell Molding vs. Sand Casting

Sand casting and shell molding are sand mold casting techniques. However, the mold creation process is different. In sand casting, the whole packed sand itself acts as a mold. Whereas, shell molding uses a thin shell of sand and resin binder as the mold.

Sand molds are loose and the likelihood of surface defects and dimensional inaccuracies is higher. In contrast, expendable molds are thin and hard, and shell-molded products have a better finish.

Shell Molding vs. Investment Casting

Investment casting utilizes a different casting approach than shell molding. It uses a wax pattern for each casting. These wax patterns are assembled into a tree structure (wax sprue), coated with a ceramic slurry, and then melted away to leave a mold cavity.

So, both the pattern and mold materials are different. Shell molds are usually metallic. Whereas, in investment casting, they have wax build. Shell casting uses sand mold whereas investment casting utilizes refractive ceramic.

Although the shell molding surface involves a better surface finish, the finish of casted products is much higher in the case of investment casting, up to 1.3 microns.

Shell Molding vs Die Casting

Shell and die casting are both metal casting techniques, but the major difference is the mold. Die casting uses a permanent metal mold, or die, and applies high pressure to inject molten metal into the mold cavity. Whereas, shell casting uses an expendable shell mold of sand + resin.

Unlike die casting, shell molding doesn’t require high pressure; instead, it relies on the strength of the resin-bonded shell to achieve precision. Also, die casting only works for metals with low melting points and parts with simple geometries.

Shell Molding vs Injection Molding

Injection molding is another precise mold technique; however, it primarily focuses on replicating plastic products. In this process, molten plastic gets injected into a metal mold under high pressure, where it cools and solidifies into the final shape.

So, the major difference between shell and injection molding is their target materials and casting approach. The shell molding process involves pouring molten metal into a sand (expendable) mold. Whereas, injection molding revolves around the injection of plastics into a solid (non-expendable) mold.
