CNC milling is known to create a range of shapes within a workpiece, be it intricate contours, pockets, or precise holes. One of the common profiles is a slot, required to accommodate keys, seals, or other functional components.
About the slot milling operation? Is it as simple as the traditional end or face milling? What machine tools are used, and how do machinists tackle chip evacuation and tool deflection?
This article navigates you through the slot milling process, explaining the basic techniques used for creating slots. We will also discuss the specialized milling tools designed for the task and the specific applications where slot cutter milling plays a critical role.
What’s Slot Milling?
A slot is a narrow, elongated channel milled into a workpiece to serve different functional purposes. It could be to accommodate fasteners, guide mechanical components, or facilitate assembly processes.

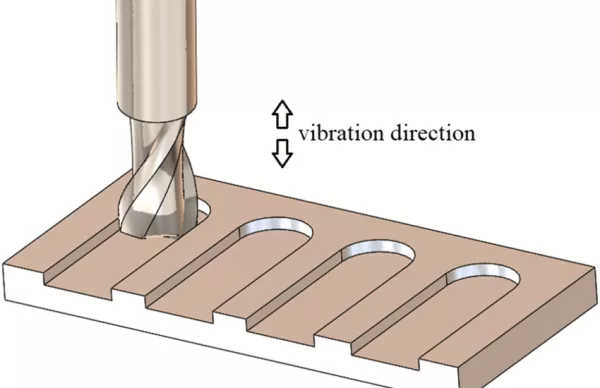

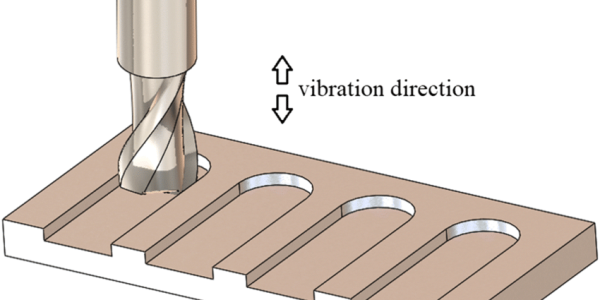

Slot cutting is a type of milling technique that uses a rotating cutting tool to create channels, slots, or grooves in a workpiece. These slot shapes and sizes can vary, depending on design requirements. They may be enclosed, straight (rectangular), or curved (circular), and can exist as single slots or in pairs.
Advantages
- It helps achieve high-precision grooves, channels, or keyways.
- Allows for the creation of complex geometries.
- Ensures the fit and function of parts with customized solutions.
- Works for a range of materials.
Limitations
- Risks of tool deflection in deep and narrow slots.
Types of Slot Milling Techniques and Slot Cutting Cutters
Milling slots in the end goal – that slot may be created via different slot cutting milling tools and techniques. The choice of method is subject to the slot features required and their intended application.

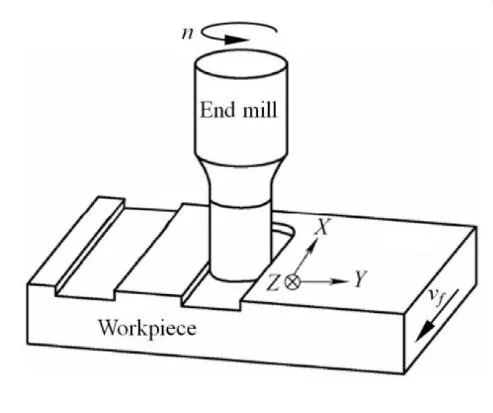

End Milling
End milling is carried out via an end mill, which has cutting edges on both its face and periphery. The end mill is fed into the workpiece along its axis to carve out a slot width that matches the cutter’s width.
End mills are common and available in standard sizes and depths. So, they are the machinists’ first preference for creating slots.
Their biggest advantage is their design versatility: they can produce non-linear paths, variable depths, and even closed slots (e.g., pockets in mold cavities).
Face Milling
Face milling cutters are primarily designed to create flat surfaces by cutting with their peripheral teeth. However, they can also create shallow linear grooving on large, flat workpieces.
Unlike end mills, they excel in high-volume material removal over broad areas, such as roughing out coolant channels in engine blocks. Their wide cutting diameter ensures stability, but they lack the precision for narrow or deep slots.
T-Slot Milling Cutters
T-slot cutters specialize in creating T-shaped slot profiles, commonly used in milling machine tool tables or work holding systems to secure clamps.
The process takes place in two steps: first, a standard end mill cuts a vertical slot, and then the T-slot cutter (with a horizontal cutting profile) machines the undercut to form the “T” shape.
Woodruff Key Cutters
Woodruff key cutters are small, disc-shaped tools with teeth on the periphery, designed to machine semicircular slots. These curved slots seat Woodruff keys, which secure power transfer or load-bearing components. The fixation of gears onto a shaft also happens through these slots.

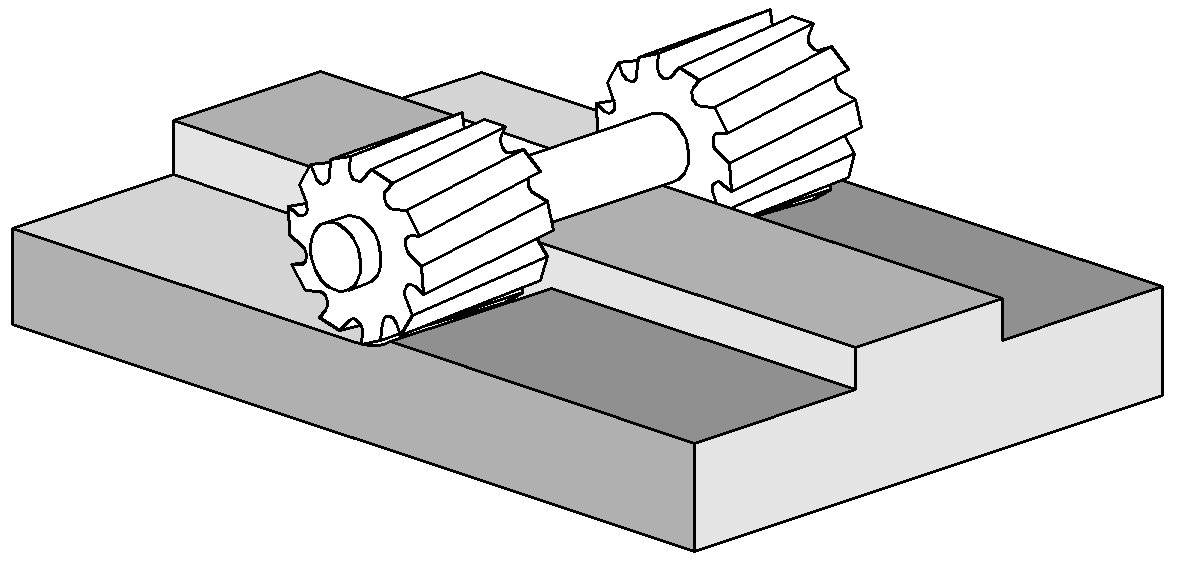

Gang Milling
Gang milling is a grouped milling technique, i.e., multiple cutters mounted on a single arbor to machine several slots simultaneously. In most cases, a pair of cutters is used to carve out two parallel slots. Finned structures can also be made through gang milling.
Due to its high material removal rate, the technique is ideal for high-volume production needs. Here, the aggressive cutting forces demand rigid tool setups to prevent vibration or misalignments.

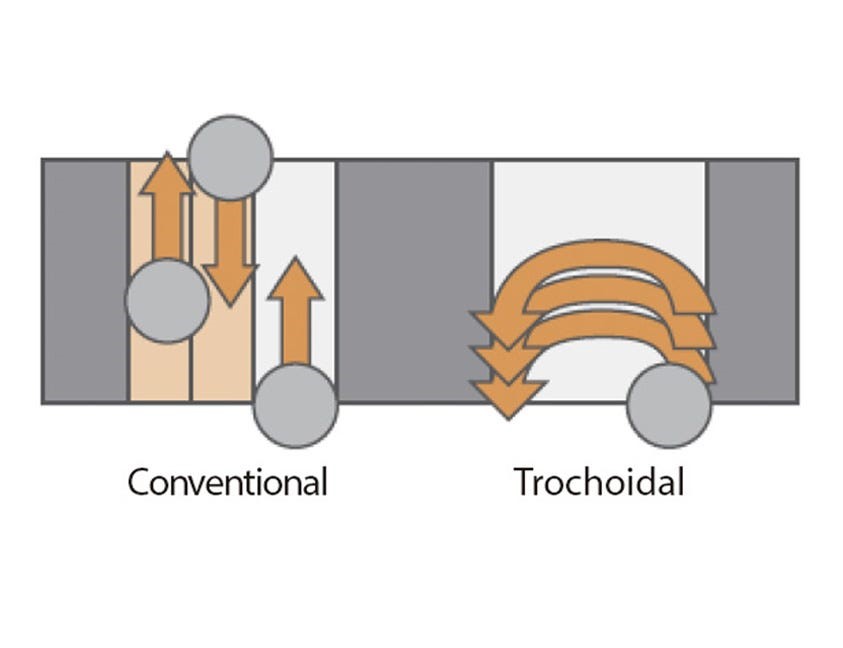

Toolpaths for Slot Milling
There are different approaches to how a slot mill cutter or milling cutter may enter the workpiece and perform the job. Primarily, three basic toolpaths are common in the industry. Each one serves a unique purpose and has its strengths:
Conventional
It’s the typical way of making milling cuts in a workpiece. The tool enters from one side and makes linear cuts along the slot axis. This toolpath works with most common tools, is easier to program, and suits shallow slot depths.
However, it’s not well-suited for deeper slots (e.g., those deeper than 3xD), as high vibrations and radial forces can deflect the tool or damage the workpiece.
Plunging
Plunging operates similarly to drilling: the tool (slot drill) makes axial cuts into the workpiece. While this method sacrifices surface precision, it shines in deep slot cutting.
The advantage here is reduced axial and radial forces on the tool, which minimizes the risk of deflection. This makes plunging ideal for machining deep slots in hard materials like titanium, where tool stability is critical.
Trochoidal
In trochoidal slot machining, the tool follows a specialized spiral or circular motion along the cutting path. This method allows machining slots wider than the tool’s diameter using a single cutter, with comparatively lower radial forces and better chip evacuation.
It’s ideal for hard materials like stainless steel or Inconel. However, trochoidal paths are complex to program and often require advanced CAM software. A final finish pass may also be needed to smooth spiral marks left by the toolpath.
Best Practices for Slot Milling
Slot cutting seems easy in theory, but machinists often face multiple challenges when carving out slots. For a successful milling operation, we recommend following these best practices.
Optimizing Tool Entry with Ramping
An abrupt plunge into the workpiece can shock the tool, leading to chipping or deflection. Instead, use a ramp-down entry (gradually lowering the tool at an angle) to distribute cutting forces evenly. A 45° ramp angle is sufficient to prevent tool overload.
For deep slots or hard materials, a 180° axial plunge, similar to drilling, reduces radial forces and prevents tool overload. This approach not only extends tool life but also avoids catastrophic tool breaks during entry.
Chip Evacuation Strategies
Chips trapped in slots re-cut into the workpiece or clog flutes, ruining finishes. One way to solve it is through multi-pass milling. Remove material in layers (e.g., roughing at 70% depth, then finishing). This leaves space for chips to escape the slot walls.
Another option is to use end mills with serrated edges or variable helix angles to fracture chips into manageable pieces. Pair it with a high-pressure coolant or compressed air to flush debris, especially in closed-end slots.
Use of Larger Diameter Tools
Considering a higher magnitude of cutting forces and deep slots, one needs to move with large-diameter milling tools to prevent deflection due to long overhangs. With a larger diameter comes more strength, which is desirable in this specialized job.
Up vs. Down Milling
Down milling (where the cutter rotates in the same direction as the feed) is preferred for slotting. It reduces tool wear and improves surface finish because the cutting forces push the workpiece downward, minimizing vibrations. This is quite useful for thin-walled parts or materials prone to burring.
Spindle Engagement
Interrupted cutting leaves potholes in your slot’s surface, resulting in a poor finish. It also wastes time without speeding things up. To avoid this, ensure that at least one tooth of the cutter is always cutting the workpiece.
Slot Milling Applications
Slots serve major functional roles across products in various industries. Some industrial sectors and specific slot milling applications are illustrated in the table below:
| Purpose | Applications | Sectors |
| Alignment & Joining | Keyways in shafts for gears/pulleys T-slots in jigs/fixtures for clamping | Automotive, Tools, and Fixtures |
| Material Removal | Weight-saving slots in aerospace ribs/spars Cooling vents in brake rotors, and drainage ports in castings. | Aerospace, Automotive, General Manufacturing |
| Fluid/Gas Flow | Oil galleries in engine blocks/shafts Airflow channels in electronic enclosures. | Manufacturing and Electronics |
| Precision Components | Internal gear teeth in gear blanks Lead screw tracks in medical devices | Automotive, Medical Devices, Electronics |
| Structural Integrity | Spline shafts for gear engagement Clearance slots for sliding shaftsPockets in semiconductor wafers | Automotive and Electronics |
FAQs
What is the difference between a slot mill and an end mill?
An end mill is a general-purpose tool used for profiling, contouring, and face milling. It can cut in multiple directions (axial and radial) and comes in various shapes like flat, ball-nose, or corner radius.
A slot mill is a specialized end mill explicitly designed for cutting slots and keyways. It typically has a straight cutting edge and is optimized for full-width cuts.
What tools/cutters can be used for slot cutter milling?
Slot cutting is versatile, and the choice of tool depends on the slot’s geometry and material. For instance, end mills work best for standard slots, t-slot cutters aid t-shape slots, woodruff key cutters for semicircular slots, and gang mills for parallel slots.
What type of materials can be slot milled?
Slot milling works on a wide range of materials, including metals(aluminum, steel, stainless steel, titanium, and brass), plastics(ABS, nylon, and polycarbonate), and hardened materials (tool steels and alloys).
