Surface Roughness Chart: Understanding Surface Finish in Manufacturing

Table of Contents

Subscribe for expert design and manufacturing tips delivered to your inbox.

    Surfaces in manufacturing applications must remain within desired roughness limits to ensure the optimum quality of parts. Surface finishing has a crucial impact on the durability and performance of the product. Therefore, it is essential to learn about the surface roughness chart and its importance.

    Rough surfaces often wear and tear more rapidly. The friction levels are higher than that in smooth surfaces, and irregularities in a surface’s smoothness tend to create nucleation sites. Breaks and corrosion occurring in these sites could then cause the material to wear easily.

    Conversely, there is a degree of roughness that can give room for desired adhesion. Therefore, you must never leave the surface finish up for interpretation. Suppose you think surface finish does matter for your product, this guide is for you.

    What is Surface Finish?

    Before we go into the surface finish chart, let’s understand what surface finish entails. Surface finish refers to the process of altering a metal’s surface that involves removing, adding, or reshaping. It is a measure of the complete texture of a product’s surface that is defined by three characteristics of surface roughness, waviness, and lay.

    machine tool surface finish probe

    The surface roughness is the measure of the total spaced irregularities on the surface. Whenever machinists talk about “surface finish,” they often refer to surface roughness.

    Waviness refers to the warped surface whose spacing is greater than that of surface roughness length. Lay refers to the direction the predominant surface pattern takes. Machinists often determine the lay by the methods used for the surface.

    the basics of surface finish

    Why is Surface Finish Important in Engineering Processes?

    Surface roughness plays a very crucial role in determining how a product reacts to its environment. The finish of a product indicates the performance of its components. Also, the level of roughness may affect the effectiveness of a product.

    This depends on the application of such a product. Engineers and manufacturers must maintain surface finish at all times. It helps to produce consistent processes and reliable products.

    Surface measurements also help maintain control of manufacturing. It is very useful whenever there’s a need for surface engineering.

    Different surface finishes have a variety of effects. The easiest way to get the desired surface finish is to compare it with the surface finish standards. Surface finish can help in the following ways and more:

    • Incredibly important for corrosion and chemical resistant effects.
    • It offers a specific visual appeal to the product.
    • Helps with the adhesion of coatings and paints.
    • Eliminates surface defects.
    • Improves conductivity and adds surface electrical conductions.
    • Increases product’s strength against wear while minimizing friction effects.

    To learn more about surface finishing, read our guide to plastic injection molding surface finish options and read our article about getting the best CNC machining surface finish for your products.

    How to Measure Surface Roughness

    Surface roughness is a calculation of the relative smoothness of a surface’s profile. The numeric parameter – Ra. The Ra surface finish chart shows the arithmetic average of surface heights measured across a surface.

    As already mentioned, there are three basic components of a surface, roughness, waviness, and lay. Therefore, different factors are affecting the characteristics of surface geometry.

    surface roughness chart symbols and measurements

    Likewise, there are several measuring systems for surface roughness. The systems include:

    • Direct measurement methods
    • Non-contact methods
    • Comparison methods
    • In-process methods

    The direct measurement methods measure surface roughness using a stylus. That involves drawing the stylus perpendicular to the surface. The machinist then uses a registered profile to determine roughness parameters.

    Non-contact methods involve the use of light or sound instead. Optical instruments like white light and confocal replace the stylus. These instruments use different principles for measurement. The physical probes can then be switched with optical sensors or microscopes.

    First, the instrument used will send an ultrasonic pulse to the surface. Then, there’ll be altering and reflection of the sound waves back to the device. You can then assess the reflected waves to determine roughness parameters.

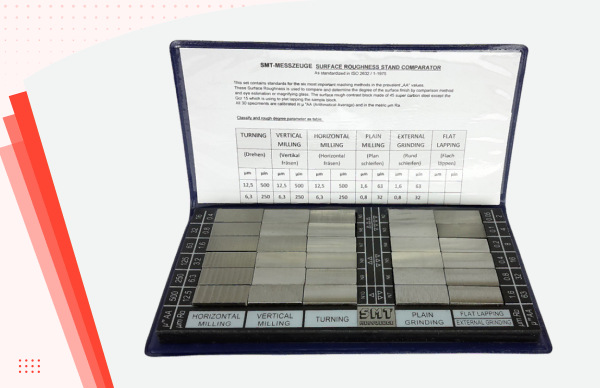

    Comparison techniques employ surface roughness samples. These samples are generated by the equipment or process. Then, the manufacturer uses tactile and visual senses to compare the results against the surface of known roughness parameters.

    An example of an in-process technique is inductance. This method helps to evaluate surface roughness using magnetic materials. The inductance pickup uses electromagnetic energy to gauge the distance to the surface. Then, the parametric value determined can help find out comparative roughness parameters.

    Various Methods of Measuring Surface Roughness

    There are different methods and equipment involved in measuring surface roughness. The methods can fall into three categories. They are:

    • Profiling Techniques. This involves the measurement of the surface using a high-resolution probe. In this process, you need to think more of a phonograph needle in line with sensitivity. A typical CNC probe may not be as effective.
    vibratory machine finish equipment at work
    • Area Techniques. These techniques measure a finite area of the surface. The measurement offers a statistical average of peaks and troughs in the surface. Some examples of these techniques include ultrasonic scattering, optical scattering, capacitance probes, and more. It is easier to automate and execute with area techniques.
    • Microscopy Techniques. These qualitative techniques rely on measuring contrasts. The results provide relevant information about peaks and valleys on surfaces.

    Surface Roughness Chart Symbols and Abbreviations

    When you search for machining surface finish symbols on your favorite browser, you would notice a range of abbreviations. These include Ra, Rsk, Rq, Rku, Rz, and more. They are units used in measuring surface finish.

    Ra – Average Surface Roughness

    While most people refer to Ra as Center Line Average or Arithmetic Average, it is the average roughness between a roughness profile and the mean line. This is the most commonly used parameter for surface finish. The Ra surface finish chart is also one of the most used for absolute values.

    Rmax – Vertical Distance from Peak to Valley

    This roughness parameter is best used for anomalies such as burrs and scratches. It may not be obvious with the Ra surface finish chart though. However, Rmax is a lot more sensitive to those anomalies.

    Rz – Average Maximum Height of the Profile

    Unlike Ra, Rz measures the average values of the five largest differences between peaks and valleys. The measurement is done using five sampling lengths, and it helps to eliminate error since Ra is quite insensitive to some extremes.

    iso surface finish symbols

    Surface Roughness Chart

    The machining surface finish chart offers important guidelines for measuring standard surface finish parameters. Manufacturers always use it as a reference material to ensure quality in the manufacturing process.

    a view of the surface roughness chart
    20 to 900 RMS

    There are different processes in examining the machining surface finish chart. As a result, it becomes challenging to pick the best process based on the performance of the product. However, the most robust is the use of the surface finish conversion chart.

    Surface Finish Conversion Chart

    In this section, there’s a table for the surface finish conversion chart. This table compares the different surface roughness scales for manufacturing processes. Meanwhile, let’s go through some of the abbreviations you’ll find there.

    Ra = Roughness Average

    RMS = Root Mean Square

    CLA = Center Line Average

    Rt = Roughness Total

    N = New ISO (Grade) Scale Numbers

    Cut-off Length = Length Required for Sample

    Ra (micrometers)Ra (microinches)RMS (microinches)CLA (N)Rt (microns)NCut-off Length (inches)
    0.02511.110.310.003
    0.0522.220.520.01
    0.144.440.830.01
    0.288.881.240.01
    0.41617.6162.050.01
    0.83232.5324.060.03
    1.66364.3638.070.03
    3.2125137.51251380.1
    6.32502752502590.1
    12.550055050050100.1
    25.0100011001000100110.3
    50.0200022002000200120.3

    Surface Roughness Chart Cheat Sheet

    This surface finish ‘cheat sheet’ is a super handy tool to help you better understand the various surface finishes available.

    Micrometers RatingMicroinches RatingApplications
      25  1000Rough, low-grade surfaces that result from saw cutting or rough forging. Therefore, such surfaces are suitable for certain unmachined clearance areas.
      12.5  500These are rough, low-grade surfaces resulting from coarse feeds and heavy cuts. While the cuts come from turning, milling, disc grinding, and more.
        6.3    250This type of surface finish results from surface grinds, disc grinds, milling, drilling, and more. Therefore, they are for clearance surfaces with stress requirements and design permits
      3.2  125The roughest kind of surface is often recommended for parts. It is also used for parts subject to vibrations, loads, and high stress.
      1.6  63Good machine roughness/finish with its production under controlled conditions. It also involves fine feeds and relatively high speeds.
      0.8  32A high-grade machine finish, which needs close control. It is relatively easy to produce with cylindrical, centerless, or surface grinders. It is also preferred for products that do not require continuous motion or large loads.
      0.4  16High-quality surface are often produced using emery buffing, lapping, or coarse honing. These finishes are therefore great options where smoothness is of high importance.
      0.2  8Fine, high-quality surface finish produced by lapping, buffing, or honing. Machinists use this where rings and packings have to slide across the surface grain.
      0.1  4A refined surface that is offered using lapping, buffing, or honing. Manufacturers use it only when there are mandatory design requirements. Therefore, it is the best finish in gauge and instrument works.
    0.05
    0.025
    2
    1
    Most refined surface finish produced with the finest buffing, honing, or superfinishing. Thus, they are best used for fine and sensitive precision gauge blocks.

    Conclusion

    Since getting precise surface roughness could be costly and challenging in today’s manufacturing, surface finishing operations require the best methodology to generate desired finishes on fabricated parts.

    Surface finish stems from the understanding of the surface hardening rate of a given material. No worry. RapidDirect is your best choice for quality surface finishing services at the best prices. Our team of experts understands the proper methods involved in exacting surface finish standards.

    rapiddirect surface finish application

    At RapidDirect, we offer full dimensional inspection reports, so you can be sure of desired results. We also carry out different finishing processes ranging from anodizing, electroplating, and bead blasting to polishing, brushing, and more.

    Our services are of the highest quality, and you can be sure of the best on-demand services. Also, we have everything it takes to bring the best out of your products. Contact us via email today; we’re always ready to work with you.

    Try RapidDirect Now!
    All information and uploads are secure and confidential.

    FAQ – Surface Roughness Chart

    How Can I Measure Surface Roughness?

    You can calculate surface roughness by measuring the average surface peaks and valleys across that surface. The measurement is often seen as ‘Ra,’ which means ‘Roughness Average.’ While Ra is a very useful measurement parameter. It also helps to determine the compliance of a product or part with various industry standards. Doing this occurs by comparing with surface finish charts.

    What Differentiates Ra and Rz In Surface Roughness Chart?

    Ra is a measure of the average length that is between peaks and valleys. It also measures the deviation from the mean line on the surface within a sampling length. On the other hand, Rz helps measure the vertical distance between the highest peak and the lowest valley. It does this within five sampling lengths and then averages the distances measured.

    What Are the Factors Affecting Surface Finish?

    Several factors affect the surface finish. The biggest of these factors is the manufacturing process. Machining processes such as turning, milling, and grinding will depend on multiple factors. Hence, the factors affecting surface finish include the following:
    Feeds and speeds
    Machine tool condition
    Toolpath parameters
    Cut width (stepover)
    Tool deflection
    Cut depth
    Vibration
    Coolant
