Undercut Machining: Detailed Process, Types, and Applications

Table of Contents

Subscribe for expert design and manufacturing tips delivered to your inbox.

    Undercutting is a sophisticated machining process that has its roots in chemical machining techniques. Originally, this method involved the use of chemical etchants to penetrate materials laterally, forming a recessed cavity beneath the surface, known as an undercut. Transitioning from chemical to mechanical means, undercut machining today utilizes mechanical tools to carve out these specialized cavities.

    This article aims to illuminate the intricacies of the undercut machining process, including its evolution, various methodologies, and practical applications.

    What is Undercut Machining?

    Standard straight-cutting tools efficiently cut through the top layer to form a desired cavity. However, they are not suitable for creating cavities adjacent to or underneath these surfaces due to their linear motion and shape. This limitation necessitates a specialized cutting technique to achieve those types of cuts.

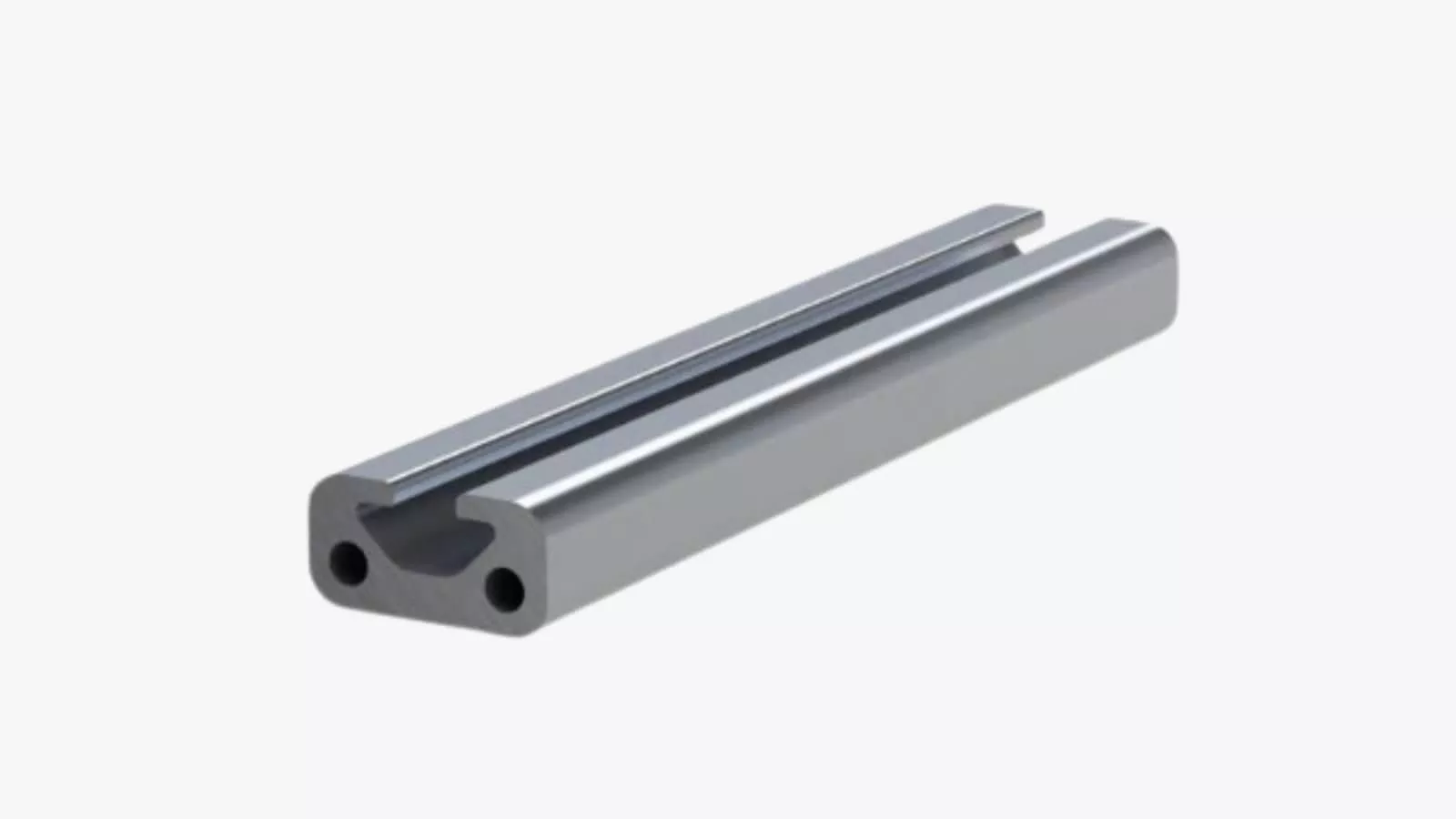

    T slot undercut machining

    Undercut machining is a peculiar machining process to create recessed surfaces within mechanical components. These CNC machined parts with undercuts usually have a surface extending over another.

    To understand undercuts, imagine the shape of a T-slot. The horizontal part of the “T” represents the undercut. Although the top of the slot is easily accessible and can be machined with standard tools, the horizontal undercut—extending inward and parallel to the surface—cannot be reached directly from above.

    Undercuts can be external or internal. External undercuts, often found in molds, are relatively simpler to machine because they are more accessible. On the other hand, internal undercuts are hidden within components and are more challenging to create. These are commonly found within gear hubs, where a part of the surface dips beneath another.

    How Undercut Machining Works

    CNC undercut machining is a challenging process that requires customized processes, and specialized tools.

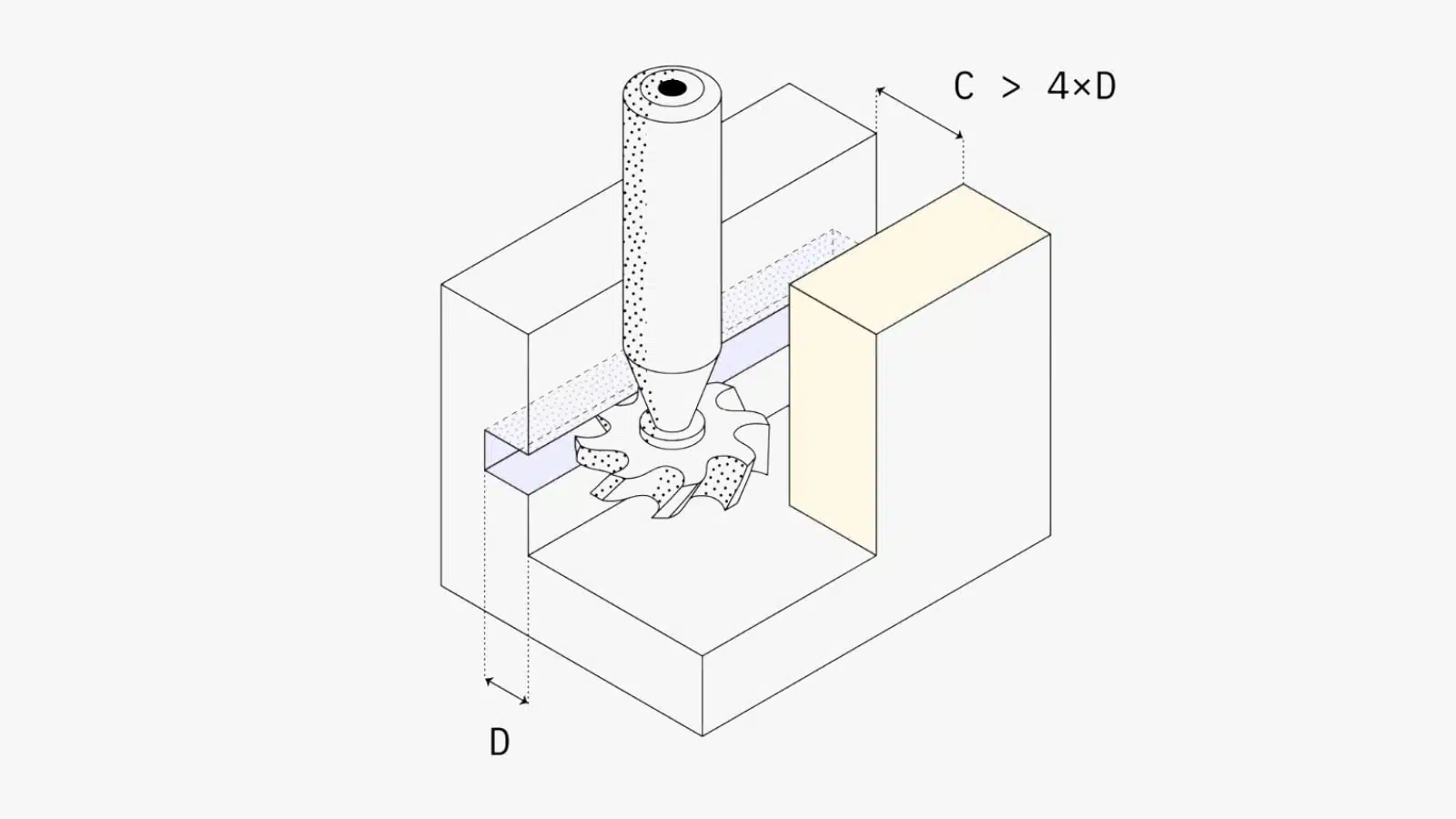

    how end mill cutters make undercuts

    Here’s a detailed note on how machinists can create undercut in machining:

    Step 1: Understanding the Geometry

    The first step involves a thorough analysis of the component’s geometry. Examine the profile to determine if the undercut is internal or external. Document the machining strategies required and the sequence in which they should be applied to achieve the intended design.

    Step 2: Selecting the Right Tools

    There is no one-size-fits-all tool for undercut machining; each job demands a specific CNC undercut tool.  Select tools based on the material and the specific profile and depth required.

    Step 3: Setting Up the CNC Machine

    Prepare the CNC machine by inputting the detailed design specifications through the CAD software. Attach the specially designed spindle for undercut machining and securely clamp the material onto the work table.

    Step 4: Machining Process

    The addition of tool and clamping of the workpiece is critical, the CNC machine takes care of the rest. It automatically cuts the material as per the defined path.

    Step 5: Quality Control

    The final step in the process is a comprehensive inspection of the machined part. Verify that all dimensions are within the specified tolerances and the desired range. This quality control check ensures the undercut meets all design requirements and the part functions as intended.

    Importance of Undercut in Modern Manufacturing

    In most cases, we want to avoid the use of undercut in the design. However, when we want to achieve functional and design objectives, their use becomes unavoidable. For instance, undercuts are instrumental in enabling the interlocking and seamless assembly of components, particularly in designs that demand secure locking mechanisms without the reliance on external fasteners.

    Moreover, undercuts also aid in weight reduction, especially in the aerospace industry, where each gram counts towards fuel efficiency and payload capacity. This technique aids in the crafting of internal cavities that maintain strength while eliminating unnecessary material elsewhere.

    Undercuts are also a part of most hydraulic systems. They serve as essential pathways for fluids, creating channels and spaces needed for the guided movement of liquids or gases.

    In some cases, especially in CNC turning, undercuts occur at the end of the threaded section of a shaft to provide clearance for the cutting tool as it transitions to a lower cross-section.

    Common Types of Undercuts in Machining

    Undercut is typically a sunken or recessed surface in a machined part. It could have different profiles in different applications. Based on that geometric profile, there are multiple types of undercuts:

    T-slot Undercut

    A T-slot undercut has a ‘T’ shape. Such a cavity is usually made for holding parts together with a T-shaped fixture. The head of the bolt gets inside the slot and can slide along the length for fixation.

    T-slot undercut is made in two steps. Initially, the standard end mill cutter makes a slot. Next, a specialized tool (T-slot cutter) makes the T-shape. T-slotter has a vertical shaft called a shank and a cutting blade perpendicular to the shank. This blade starts from the cross-section of that earlier slot and cuts undercut in the horizontal direction. T-slot cutter is usually customized through CNC turning for the job nature. However, generally available tool widths are between 3 to 35mm.

    One-sided Undercut

    A one-sided undercut specifically targets one surface of a workpiece. These undercuts are for scenarios where a component requires a precision groove on one side to accommodate specific assemblies, especially seals or retaining rings.

    A lollipop cutter, which has single-side cutting, is used for making a one-sided undercut. This lollipop is clamped to a multi-axis CNC which moves the tool around the periphery of the workpiece, where the cut is required.

    Dovetail Undercut

    A dovetail undercut is purely for joining two components. The dovetail undercut features an angled blade design with two parts: one wedge section and the other recessed section. The wedge assembly securely locks itself in the recessed part, securing the two parts together.

    This undercut is quite common in the woodworking industry. Here, the cutting tool has slightly tapered edges, with angles between 45° and 60°.

    Tapered Undercut

    A tapered undercut has a sloping surface that tapers from one side to another. This type of undercut is particularly beneficial in applications where you need a tight, frictional fit between two parts, such as in mechanical assemblies, or where the aesthetic of a smoothly tapering surface adds value to the final product.

    Machining tapered undercuts involves using tapered end mill cutters, designed to precisely carve the undercut’s gradual slope.

    Threaded Undercut

    Threaded undercuts feature internal threads, as in screws and bolts. They are essential for parts that need screwing. Specialized thread mills and taps are used for adding threads to undercut parts. The thread mills carve the thread path in a helical motion and are suitable for both internal and external threading.

    Spherical Undercut

    These undercuts have a 3D curved surface resembling a sphere. The spherical undercuts feature in parts requiring rotary motion, such as ball joints or bearings.

    Ball-nose end mills aid in machining these curved undercut shapes. These end mills have a rounded tip that allows for the efficient cutting of curved profiles through a programmed CNC path.

    Keyway Undercut

    Keyway undercuts serve a specific purpose: to house a key that locks two mechanical parts together and prevents them from rotating independently of each other. We machine these undercuts in shafts or other rotational components that transmit torque. A gearing system is a perfect example.

    Machinists use broaches or keyway cutters to create these slots. A broach is a tool with a series of progressively larger teeth, used to remove material through a linear motion, creating a precise slot or keyway in one pass. Whereas, a keyway cutter is similar to a T-slot cutter. It is inserted into a milling machine, where it rotates to remove material and form the slot.

    Relief Undercut

    A relief undercut is often created around bearings or shafts. Here, a small groove or recess is cut into parts to reduce stress concentrations or provide clearance.

    Standard undercut end mills or slotting cutters can machine these undercut profiles. The cutter moves along the predetermined path around bearings or shafts, removing material to create a groove. This operation may require multiple passes to achieve the exact depth and shape.

    O-ring Groove Undercut

    This groove is specifically cut to house an O-ring, creating a tight seal between the two parts. Specialized O-ring groove cutters ensure the precise dimensions and placement of the groove. They help prevent leaks in various applications.

    Technical Insights of Different Undercuts

    Let’s get some more technical details on these undercut types, and explore their key applications, tooling, and challenges.

    Type of UndercutApplicationsTooling RequirementsChallenges/Considerations
    T-slot UndercutFixtures, Mounting SlotsT-slot cuttersDepth control, avoiding tool breakage
    One-sided UndercutAssembly Interfaces, Snap FitsLollipop cuttersAccess to the undercut area, finishing quality
    Dovetail UndercutLocking Mechanisms, High-strength JointsDovetail cuttersPrecision in angles, the strength of the joint
    Tapered UndercutHose Connectors, Expansion JointsTapered end millsMaintaining taper consistency, tool wear
    Threaded UndercutScrew Threads, Fastening PointsThread mills, TapsThread integrity, alignment with the main feature
    Spherical UndercutBall Joints, Rounded InterlocksSpherical end millsSmooth surface finish, spherical accuracy
    Keyway UndercutKeyed Shafts, Transmission ComponentsKeyway cuttersAlignment with the shaft, dimensional accuracy
    Relief UndercutStress Relief, ClearancesVarious, depending on the shapeAvoiding stress concentrators, material removal rate
    O-ring Groove UndercutSeals, Fluid ConnectionsGroove cutters specific to O-ring sizesPrecision in groove dimensions, surface finish

    Common Applications and Examples in Industries

    Undercutting machining, although rare, still finds applications in a range of industries. Some key examples are:

    • Manufacturing (Molding Making): Undercuts enable complex mold designs for intricate part geometries.
    • Electronics: Relief undercuts in housings allow for assembly flexibility; T-slot undercuts in connectors facilitate secure component attachment.
    • Automotive: Undercuts in gears and shafts enhance mechanical engagement; o-ring undercuts ensure leak-proof seals.
    • Medical Components: Barb fittings with undercuts secure tubing without additional fasteners.
    • Aerospace: Undercut parts help in weight reduction and enable the integration of grooves for wiring without compromising structural integrity.

    Are you a product developer, researcher, or a designer? Need precise CNC machined undercut parts for your new product? Try RapidDirect’s CNC machining services. We have experience working in all these domains. Whether you need a prototype for your new product or a custom mold, you can consult us.

    Try RapidDirect Now!
    All information and uploads are secure and confidential.

    Challenges of Undercut Machining

    Compared to cuts on the surface, undercuts can be a challenge to machines. You need to carefully evaluate the design, tools, and materials before starting the process.

    Technical Challenges in Machining Undercut

    The geometry of undercuts requires tools that can navigate tight spaces and complex shapes, which standard tools can’t always reach or shape effectively. Specialized undercutting tools like slot cutters and lollipop cutters are designed for these tasks. However, their unique shapes and sizes introduce challenges in tool stability, wear, and the need for precise control during the machining process.

    Design Consideration

    Designing for undercuts involves anticipating how tools will access and machine the desired features without compromising the integrity of the part. This requires detailed planning to ensure that undercuts serve their intended purpose while remaining manufacturable.

    Designers should consider factors such as the accessibility of the undercut designs for machining tools and the potential impact on the part’s functionality and assembly.

    Material Consideration

    The workpiece material also impacts the feasibility and quality of the undercut. Some materials, like hardened steel or ceramics, may be too hard or too brittle, increasing the risk of breaking tools or damaging parts during machining

    The selection of tools is also material-dependent. Machinists should choose materials that can withstand the stresses of undercut machining while meeting the performance requirements of the final part.

    Tips for Perfect Undercuts

    Undercuts are hard to machine. These few tips can slightly ease up that challenging process:

    Choose Standard Dimension

    For standard dimensions, the readily available market tools work. For instance, if the dimensions of a T-slot undercut are a multiple ¼ of an inch, you’ll likely find a pre-made tool bit for that job.

    However, if you customize the design to differ from standard dimensions, the process will need specialized tools. These customized tools add more time to process and are expensive to manufacture. The price difference is almost 50% more compared to customized ones.

    Avoid Too Deep Feature

    Cutting tools are often attached to vertical shafts which have a limited cutting depth, usually a multiple of their diameter. If you try to cut deep, past 1x diameter, there are chances tool may fail or deflect. So, stick to shallow cuts that are ideally within the tool’s reach.

    Eliminate Undercuts If Possible

    Although undercuts are essential for certain designs, avoiding them altogether can sometimes lead to a more streamlined manufacturing process. Undercuts introduce areas of stress concentration and are costly to manufacture.

    Whenever you can join parts with alternate joining methods like welding, adhesive bonding, or mechanical fasteners, eliminate undercuts in the design phase. Similarly, when dealing with materials that are difficult to machine, for instance, titanium or hardened steel, avoid undercuts.

    Partner with Professionals

    Peculiar design is the key element of undercuts. Professional machinists can help optimize the design for adjustments, help in tool selection, and suggest machining strategies tailored to your specific needs.

    RapidDirect provides support for precision machining services. Our team of experts can help you design undercuts and then manufacture them with great precision. Use our CNC milling, CNC turning, and EDM services. With each, you’ll receive a detailed DFM Analysis that pinpoints machining challenges. Try today, and unlock the potential of your projects with unparalleled accuracy and efficiency.

    Conclusion

    Undercut machining is a key technique in modern manufacturing that aids in the creation of complex and hidden features that traditional methods cannot achieve. Its primary use case is the assembly of parts without external fixtures.

    Undercuts can also emerge from chemical etching and mold making. However, the latter methods, though effective, don’t quite match the precision CNC machining delivers.

    If your prototype design incorporates undercuts and demands exact dimensions, contact us today, and bring your design to life.

    FAQs

    1. What’s the standard undercut for a shaft?

    For basic shafts, a maximum radius of .25 mm works well. Journals needing outer diameter grinding relief should not exceed an undercut of .90 mm ± .25 mm and a depth of .50 mm. Lastly, for threaded shafts, the undercut thread depth needs to be  ±.13 mm. And its length must be between 1 to 3 full pitches.

    2. How do I choose the right undercut?

    To choose the right undercut, consider the profile and use case of your cut. Then, consider the material of the component. Make an informed decision based on the shape and assembly required. You may seek help from professionals.

    3. Can I have undercuts on the mold?

    Yes, you can incorporate undercuts in molds to create complex parts with features that protrude or recess beyond the parting line.
